Operating Instructions
Checking 9064 Card Information
Checking 9064 Card Information
The operating status and software version the 9064 card can be checked using
DashBoard™ or the card edge control user interface. Figure 3-4 shows and
describes the 9064 card information screen using DashBoard™ and accessing
card information using the card edge control user interface.
Note: Proper operating status in DashBoard™ is denoted by green icons for the sta-
tus indicators shown in Figure 3-4. Yellow or red icons respectively indicate
an alert or failure condition. Refer to Troubleshooting (p. 3-44) for corrective
action.

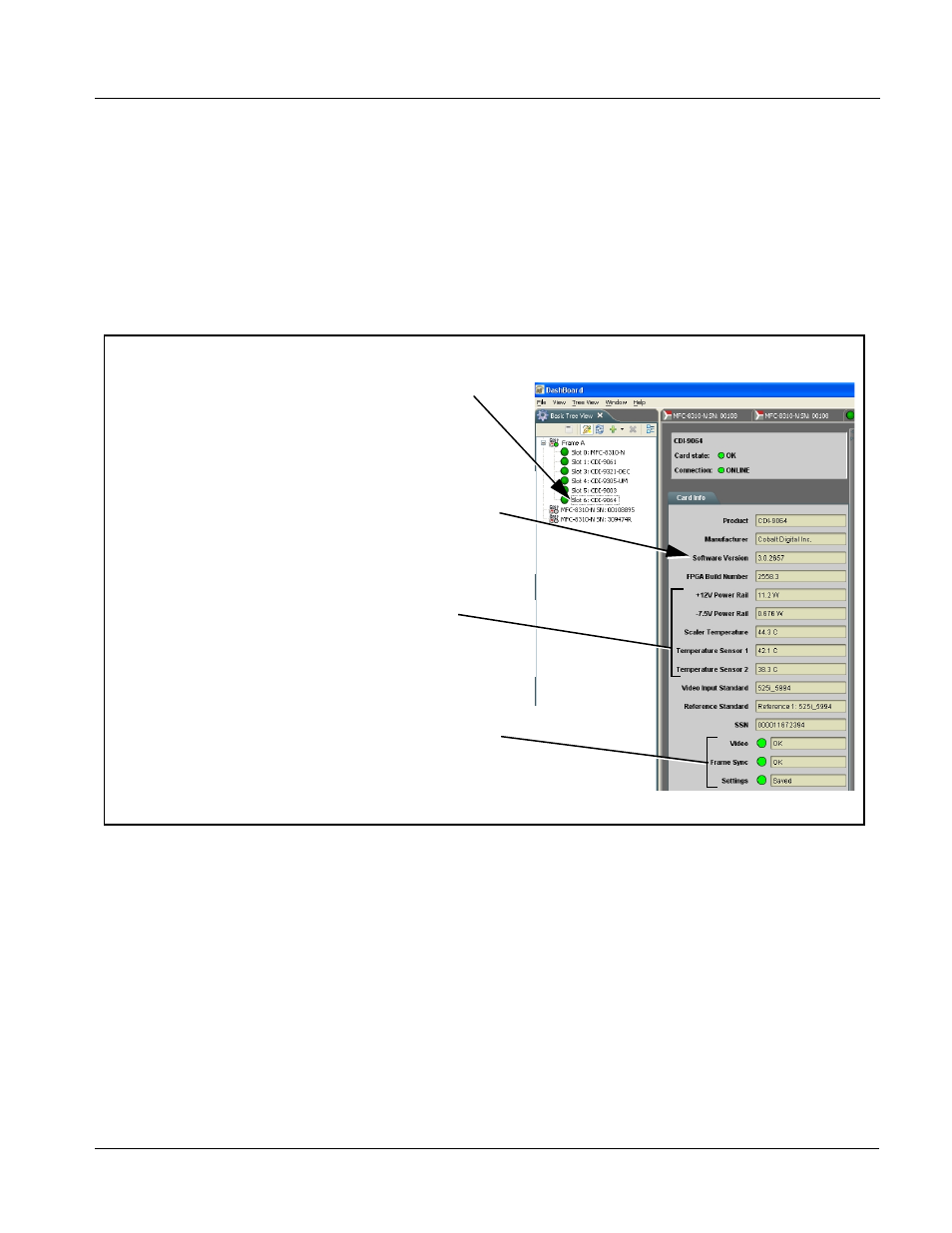

Figure 3-4 9064 Card Info Utility
The Tree View shows the cards seen by DashBoard™.
In this example, Frame A is hosting a 9064 card in slot 6.
Software Version Number
Refer to these numbers to check that documentation (such as this
manual) matches the card’s Software Release Number and
Software Build Number. Use these numbers also when
communicating to Cobalt
® regarding this card.
Power Consumption and Temperature Displays
This display shows the power consumed by the 9064
for both the +12V and -7.5V rails, as well as key device
temperatures.
Status Displays
These displays show the status the signal being received by
the 9064. Green Settings icon shows that any changes made
on DashBoard™ are sucessfully saved on the card’s memory.
