9064-OM (V4.1) 9064 PRODUCT MANUAL 3-25
Operating Instructions

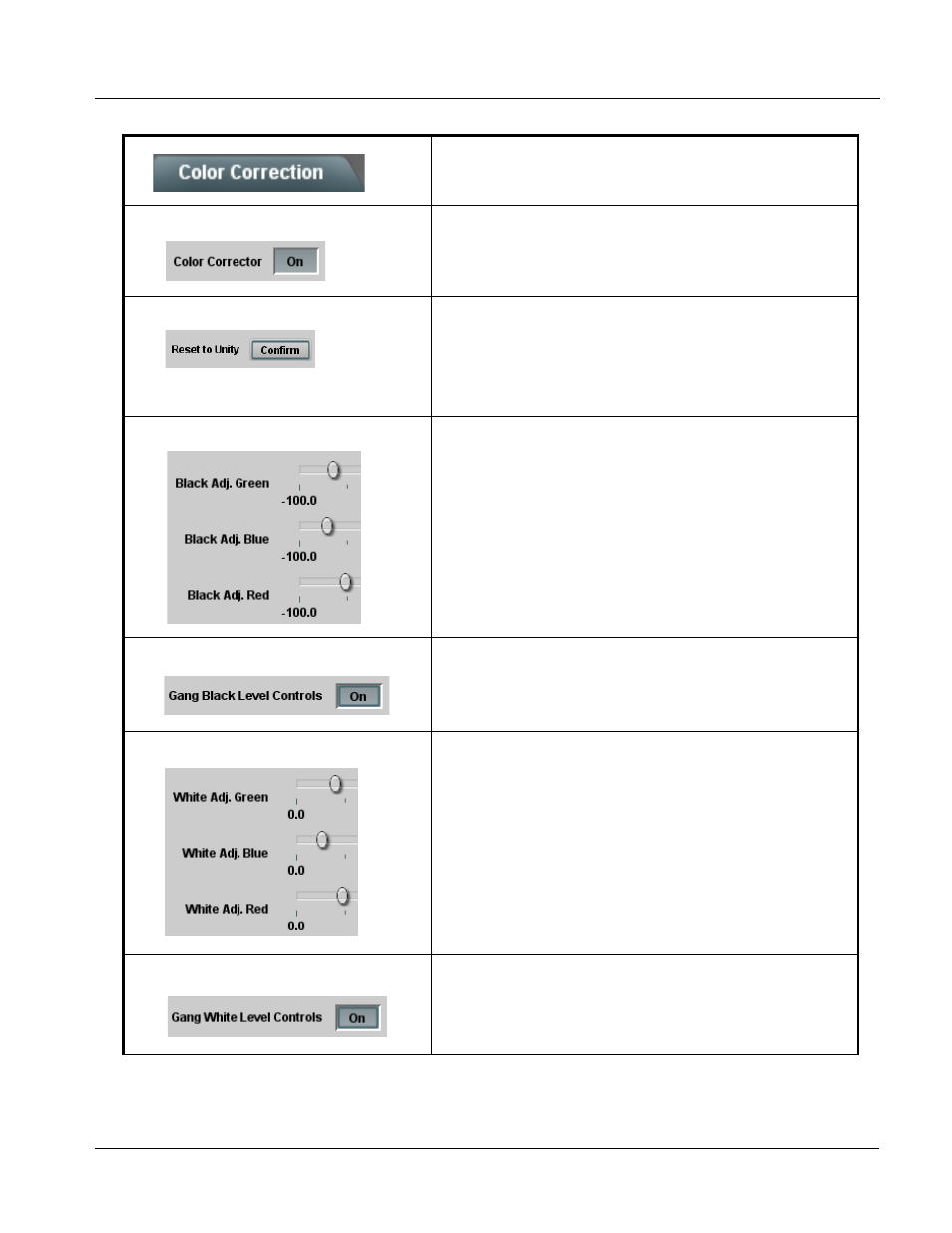

9064 Function Submenu List and Descriptions
Provides color corrector functions for the individual RGB
channels of the received SD/HD SDI signal.
• Color Corrector Color Corrector (On/Off) provides master on/off control of all Color
Corrector functions.
• When set to Off, all processing is bypassed.
• When set to On, currently displayed parameters settings take effect.
• Reset to Unity Reset to Unity provides unity reset control of all Color Corrector
functions.
When Confirm is clicked, a Confirm? pop-up appears, requesting
confirmation.
• Click Yes to proceed with the unity reset.
• Click No to reject unity reset.
• Black Adj. (Green – Red – Blue) Separate red, green, and blue black level controls respectively apply lift
value for R, G, and B channels.
(-100.0 to 100.0% range in 0.1% steps; null = 0.0)
Color Correction
• Gang Black Level Controls When set to On, changing any of the Black Adj. controls increases or
decreases R, G, and B black levels by equal amounts.
• White Adj. (Green – Red – Blue) Separate red, green, and blue gain controls respectively apply gain
percentage for R, G, and B channels.
(0.0 to 200.0% range in 0.1% steps; unity = 100.0)
• Gang White Level Controls When set to On, changing any of the White Adj. (gain) controls increases
or decreases R, G, and B white gain levels by equal amounts.
Table 3-2 9064 Function Submenu List — continued
