Control and Display Descriptions
3-2 9392-TCB PRODUCT MANUAL 9392-TCB-OM (V1.3)
Function Submenu/Parameter Submenu Overview
The functions and related parameters available on the 9392 card are organized
into function submenus, which consist of parameter groups as shown below.
Figure 3-1 shows how the 9392 card and its submenus are organized, and also
provides an overview of how navigation is performed between cards, function
submenus, and parameters.

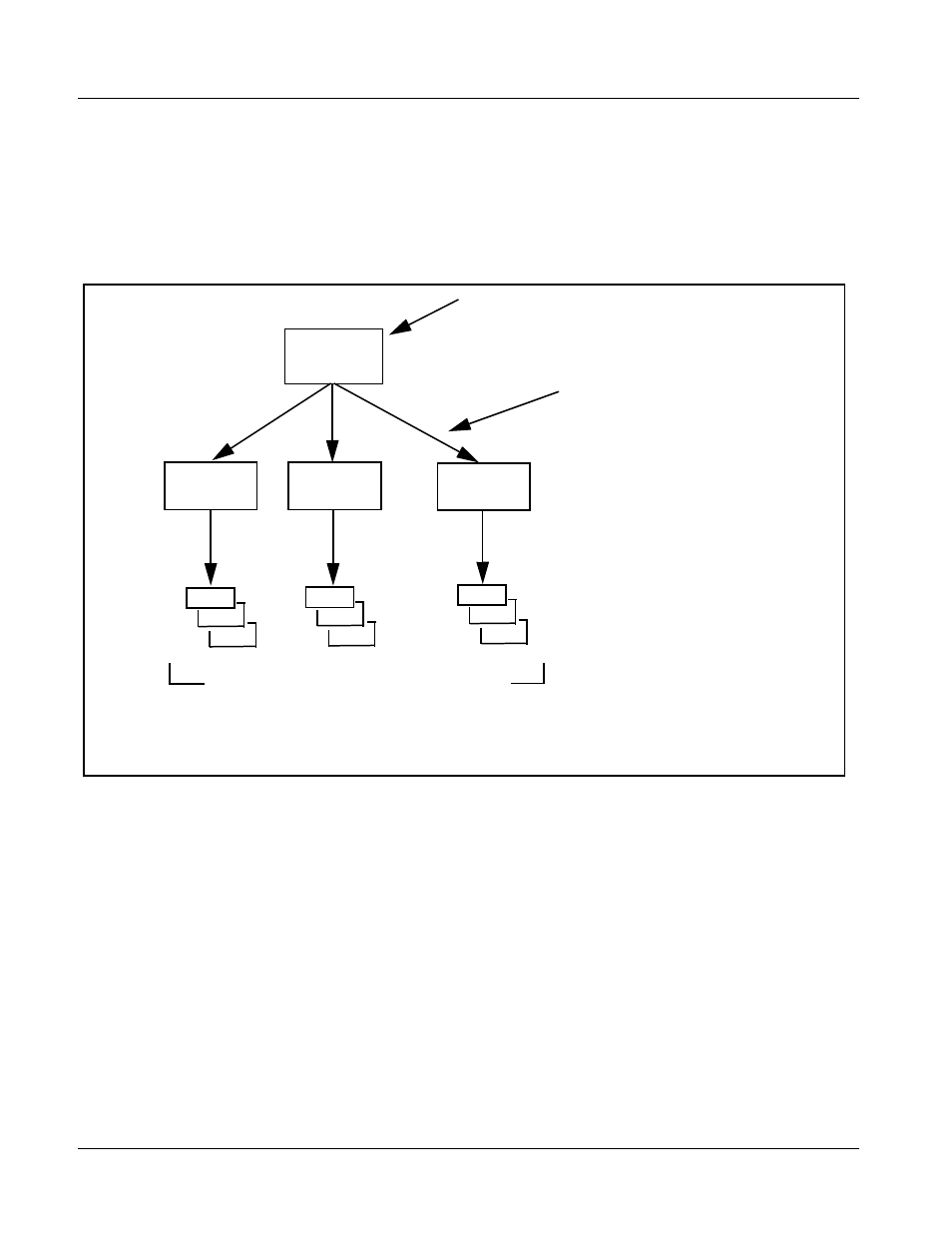

Figure 3-1 Function Submenu/Parameter Submenu Overview
9392
Submenu a Submenu b Submenu z • • •
Individual Parameters
Each submenu consists of groups of parameters
related to the function submenu. Using the “Video
Path A” function submenu example, the individual
parameters for this function consist of various items
and parameters such as Timecode Burn enable, and
so on.
If using DashBoard™, the desired 9392 card is first selected.
The desired function submenu is next
selected.
Function Submenus consist of parameter
groups related to a particular 9392 card
function (for example, “Video Path A”).
