Installing a Rear Module
2-4 9392-TCB PRODUCT MANUAL 9392-TCB-OM (V1.2)
9392 Rear Modules
Table 2-1 shows and describes the full assortment of Rear Modules
specifically for use with the 9392.
Notes: • Rear Modules equipped with 3-wire Phoenix connectors are supplied with
removable screw terminal block adapters. For clarity, the adapters are omit-
ted in the drawings below. Refer to Connecting To 3-Wire Phoenix Terminal
Connectors (p. 2-5) for connector polarity orientation details.
• The Rear Modules shown here are standard production items. Other signal
combinations may be available as custom items. Consult Product Support
with requests. Also, please check our web site pages for this product; new
Rear Modules may be available that are not listed here.

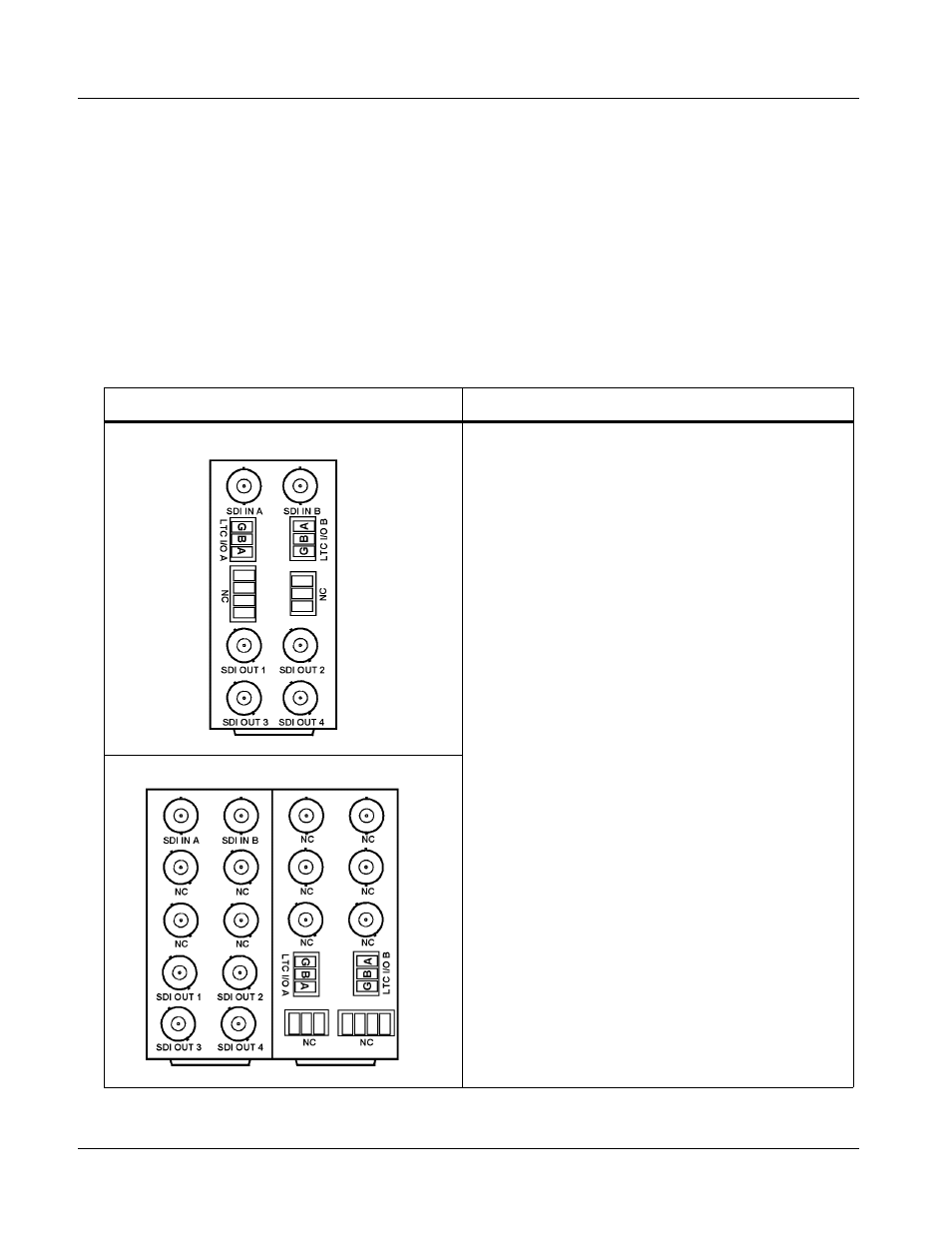

Table 2-1 9392 Rear Modules
9392 Rear Module Description
RM20-9392-D Rear Module Provides the following connections:
• Two 3G/HD/SD-SDI video input BNCs
( SDI IN A and SDI IN B )
• Two RS-485 LTC input/outputs LTC I/O A and
LTC I/O B . LTS ports can be correlated to either SDI
video path.
• Four 3G/HD/SD-SDI video output BNCs
( SDI OUT 1 thru SDI OUT 4 ). Output routing
assignments per card SDI Output Map GUI routing.
Note: Some rear module labels may label
SDI OUT 1 thru SDI OUT 4 as SDI OUT A
thru SDI OUT D, respectively.
RM20-9392-E Rear Module
