5. Installation
16
PNEG-1776 Deluxe Downwind Heater - Canadian
Electrical Installation (460V Fans)
1. Connect power cord to fan control box.
2. Make field connections of wires in fan box as shown in
. 110V power supply or
0.5 KVA 460V to 110V transformer must be used to supply power for heater.
3. Connect deluxe thermostat control (optional) in heater box as shown in
.
IMPORTANT: Heater must be interlocked with fan for safe operation.
IMPORTANT: Thermostat must be installed for safe operation.

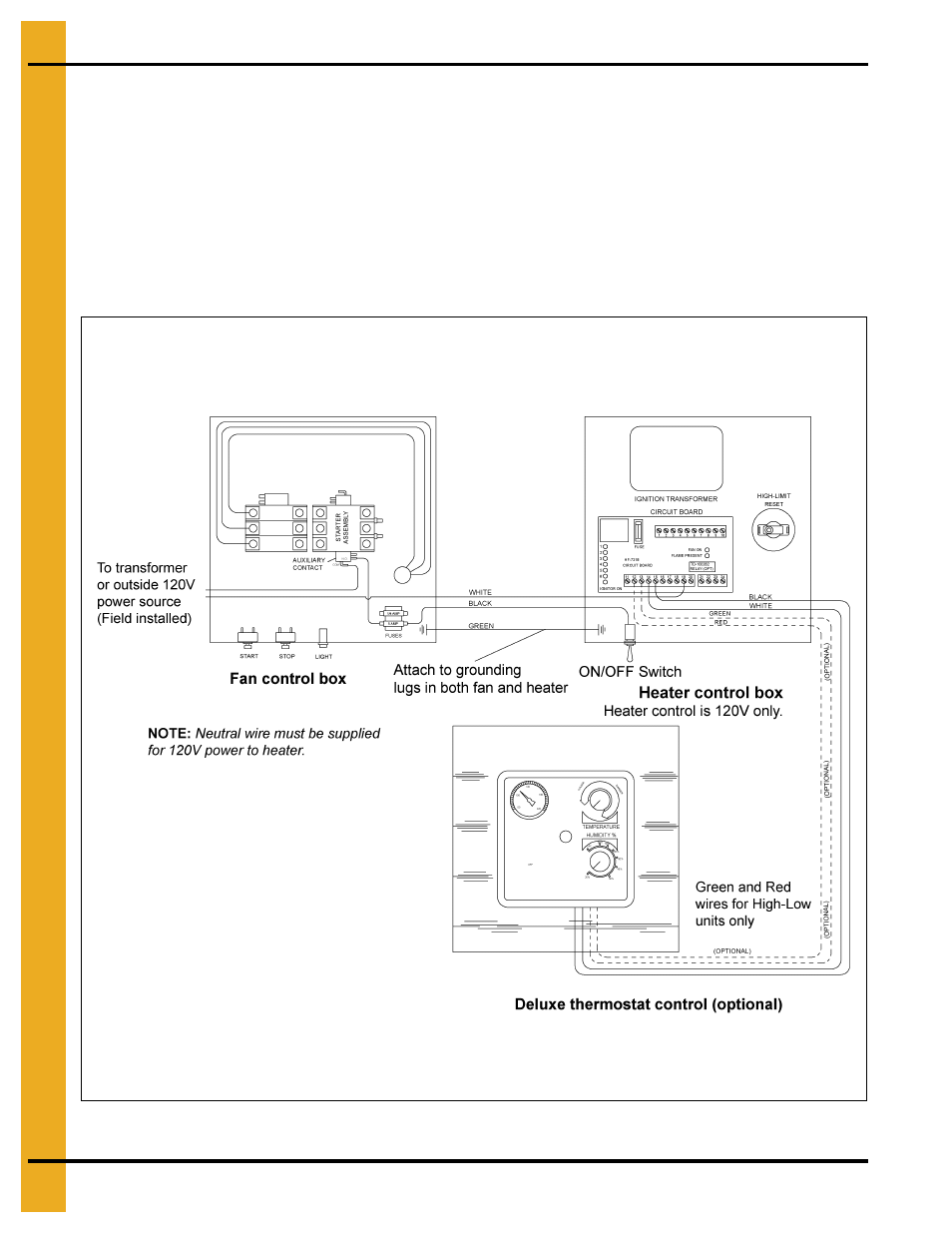

Figure 5B 460 Volt Fan Control Box
