Grain Systems PNEG-1786 - Manual (Page 2)

Page 2 of 2 PNEG-1786
Shinko Controller Setup (056-1954-9)
Programming Auxiliary Function Mode 1
10. Press DOWN ARROW and simultaneously press the MODE KEY for approximately 3 second or
until is displayed (Auxiliary Setting Mode).
11. Repeat Step 3 through Step 5 on Page 1 until all modes “VALUE LOCK” through “OUTPUT HYST”
are set. NOTE: Basic setting modes cannot be changed when the value lock is set as 1, 2 or 3.
12. Finally, write part number and description on unit.

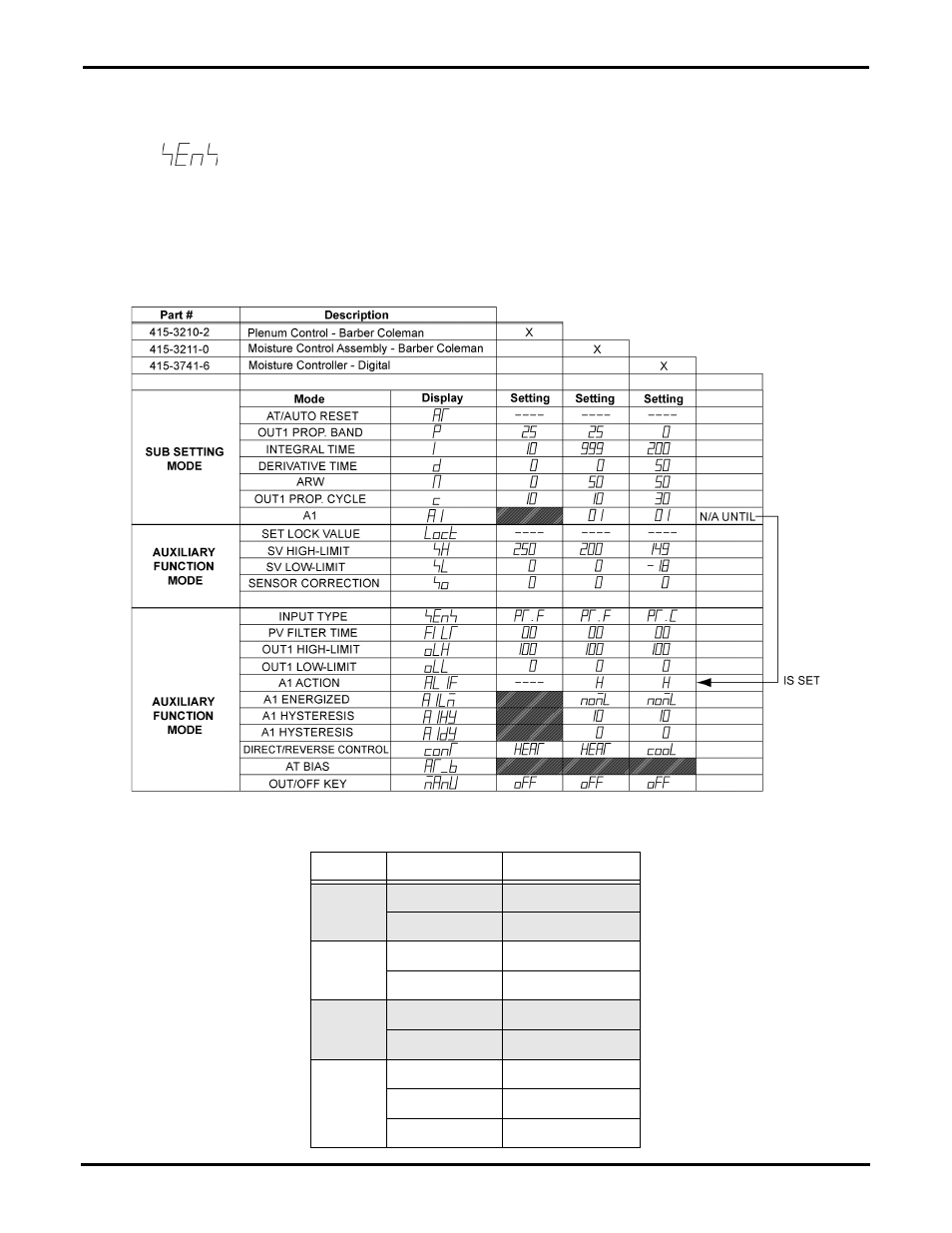

Settings Chart
Terminal Chart
Old Terminal New Terminal
Power
10 1
5 2
Alarm
8 3
9 4
Output
6 6
7 7
RTD
Sensor
1 8
2 9
3 10
