2. Installation
PNEG-1764 Leeson Motor Field Installation for 5 HP Load and 7-1/2 HP Unload Applications 9
Figure 2C
Part No./Process Critical Process/Inspection Parameters
Removal Date:
Issue Date: 7/15/2010
Approval:
Reviewed By: Jeff Falconer

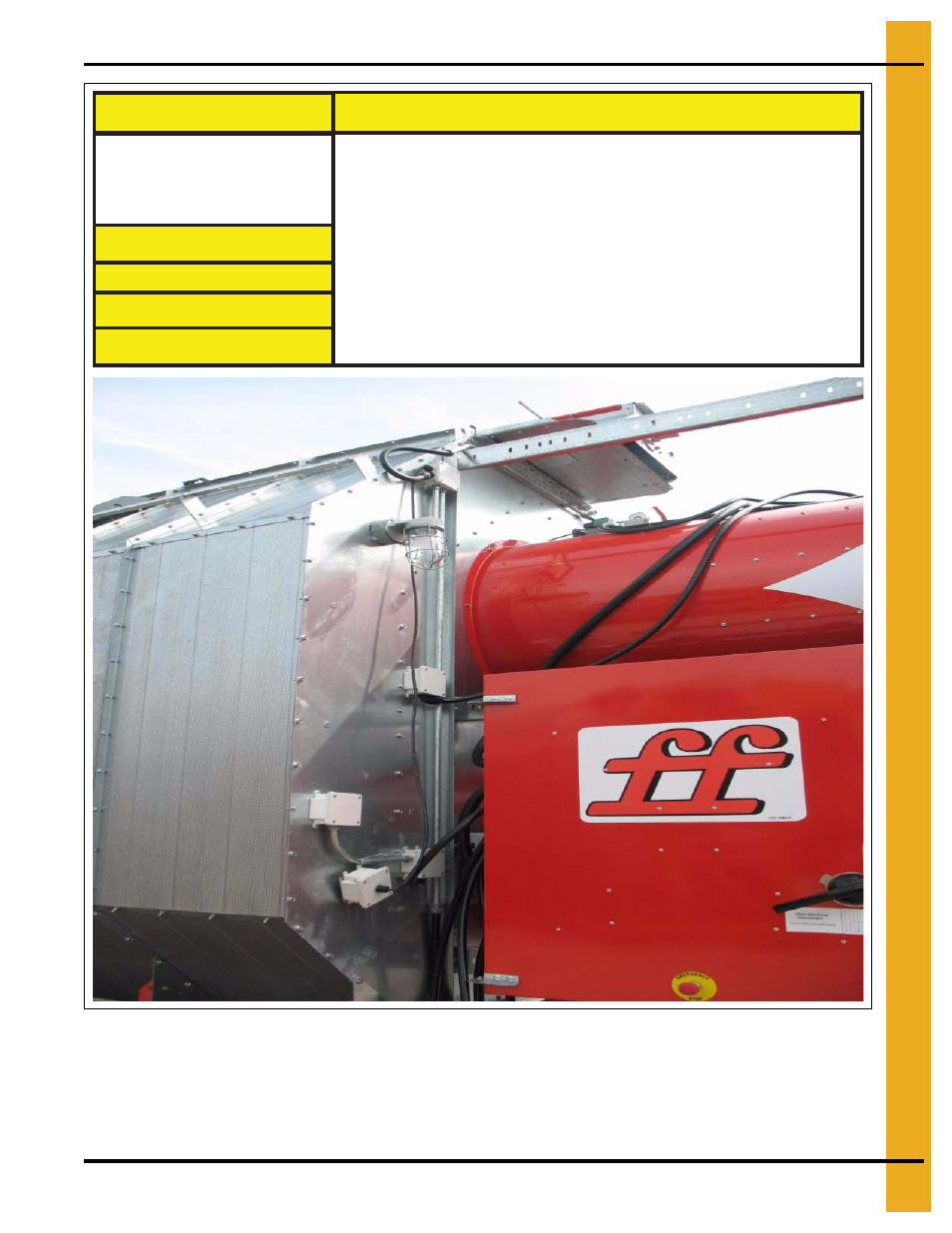

It is imperative that all 510 and 1220 dryers using
7.5 HP Leeson Motor be reworked as follows:
1) All 10 gauge wire for load circuit to be
removed from motor to control panel.
2) 8 Gauge wire must be installed from motor to
control panel and wired to new contactor.
N5
Motor Wiring Rework
