Page 7
2. Installation
PNEG-1587 KBIC SCR Control Kit Installation
7

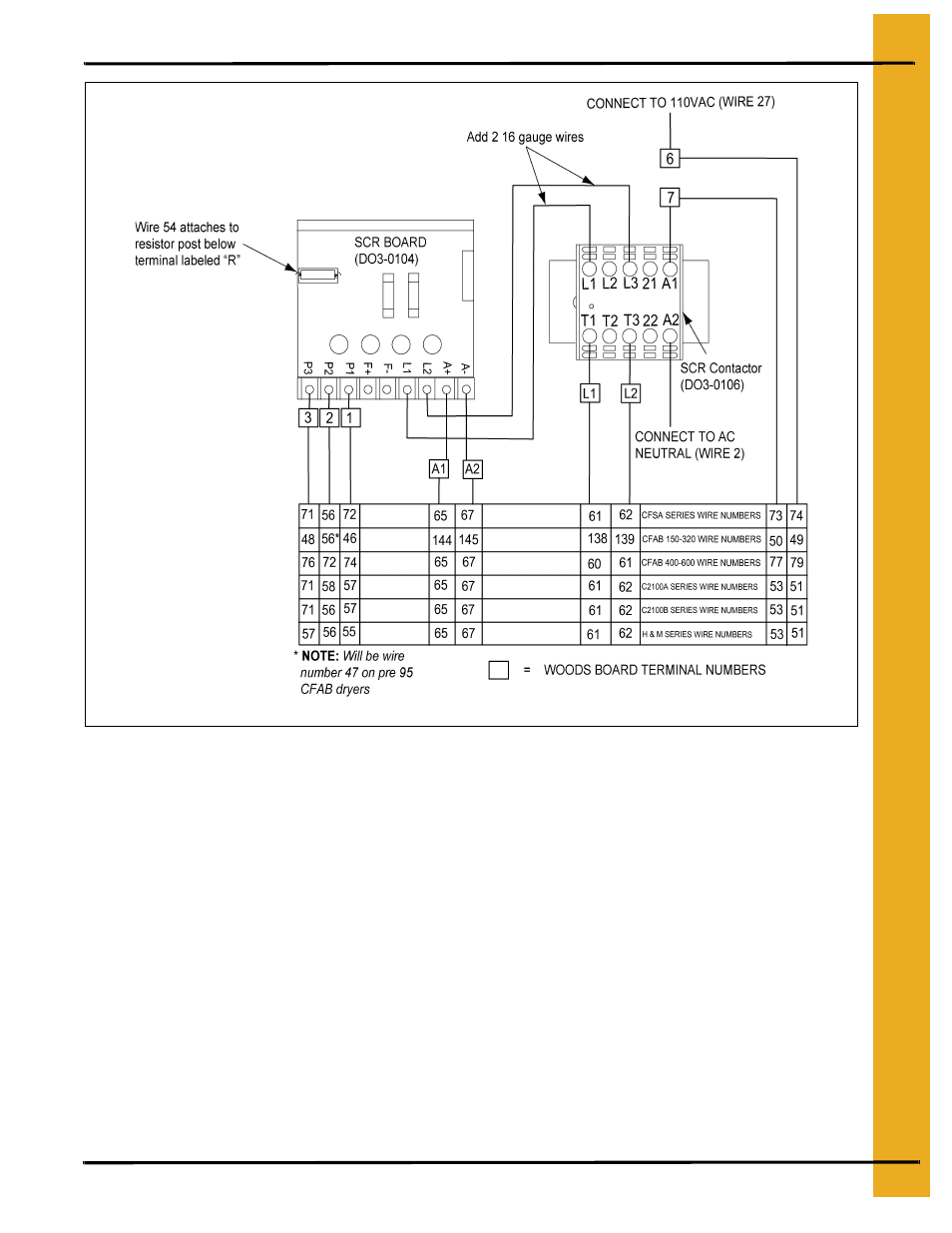

Figure 2A Wiring Diagram for all FFI Dryers
The board is ready to be calibrated unless the dryer is equipped with a Vari-Trol “VM” (Honeywell digital
type control), in which case the following additional step is required before calibration.
• If the dryer has a Honeywell Vari-Trol control and an Auto-Range module, connect the red wire
(#54) attached to the KBIC board to the terminal 1 of the Auto-Range module base. If this wire was
not present on your Woods board, please remove the wire with wire cutters.
