2. Installation
10 PNEG-1765 Leeson Motor Field Installation for 7-1/2 HP Load and 7-1/2 HP Unload Applications
Cleanout Door Mechanism
Step 3: (See Figure 2D below and Figure 2E on Page 11.)
1. To allow adequate clearance between the linkage arm and the motor, move the handle to the left side
of the pivot arm weldment.
2. Also, move the linkage arm to the left side of the cleanout door hinge. (See Figure 2E on Page 11.)
3. Adjust linkage for correct operation of the cleanout door.

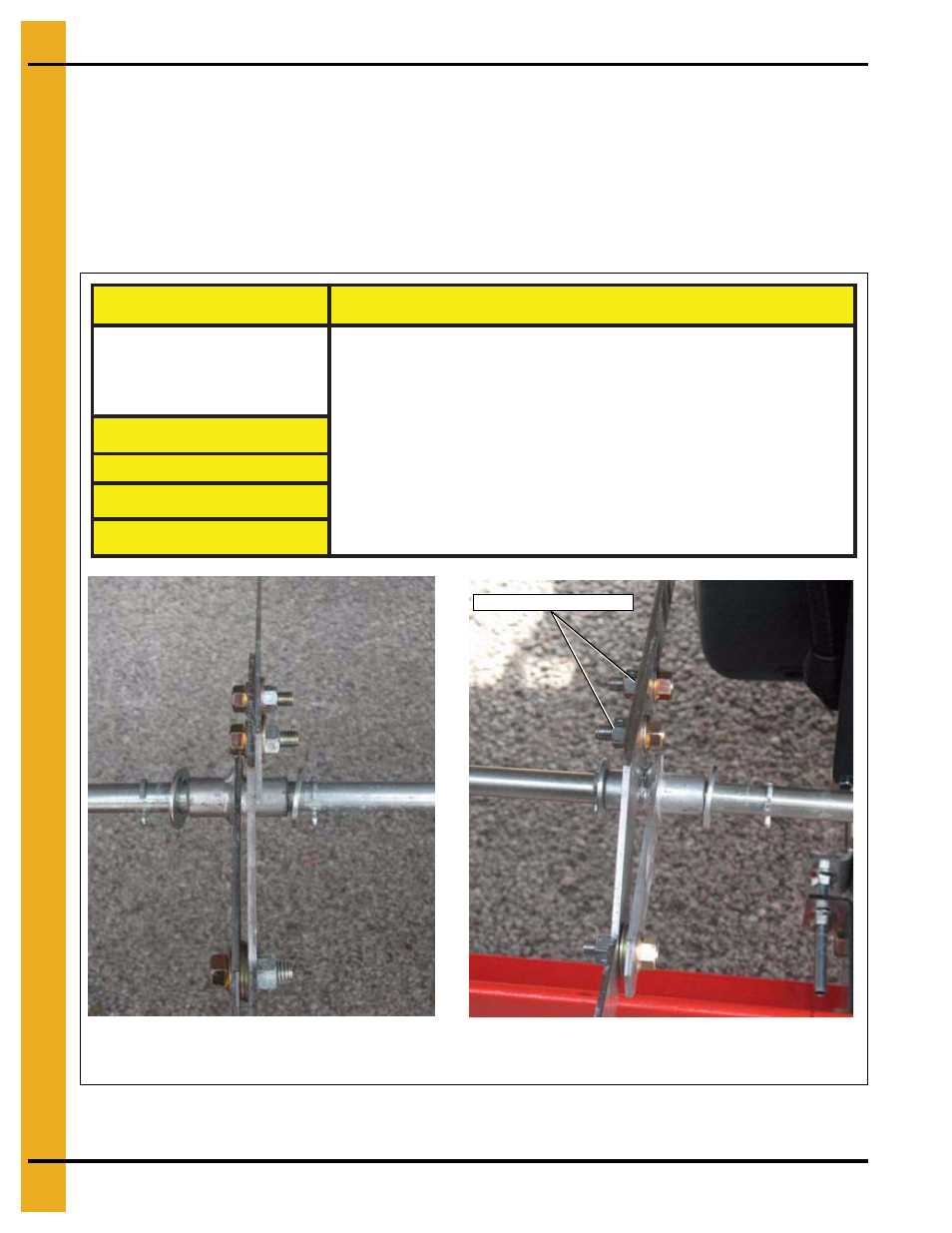

Figure 2D
Part No./Process Critical Process/Inspection Parameters
Removal Date:
Issue Date: 7/15/2010
Approval:
Reviewed By: Jeff Falconer
It is imperative that all GSI and FFI cleanout door
brackets be installed on the left side of the
handle as shown.
Cleanout arm must be fastened at both ends on
the left side of the handle.
N5
Cleanout Door
Present assembly Revise assembly after leeson motor installed
Linkage adjustment bolts
