Chapter 7: Roof Assembly

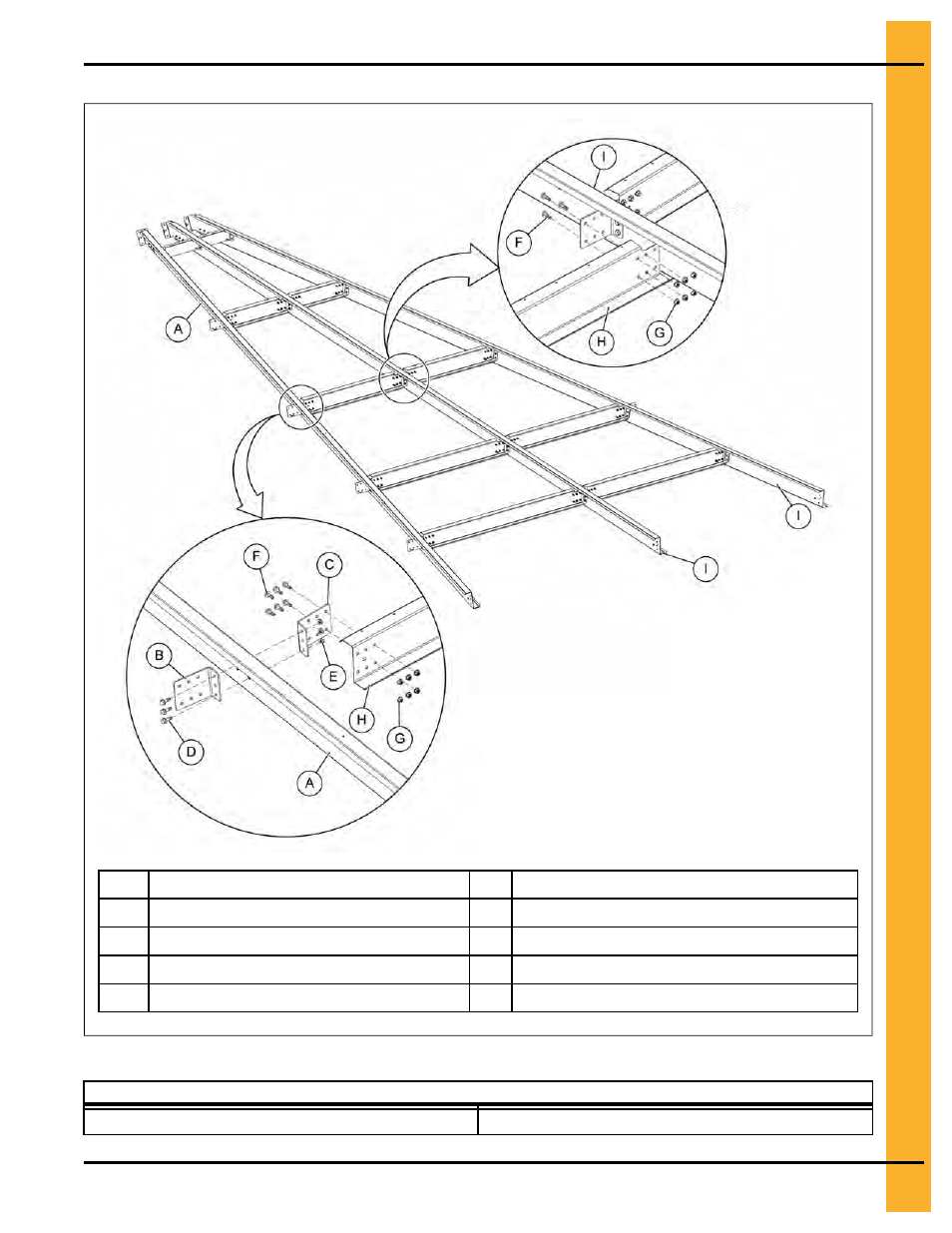

Figure 7-17 Double A-frame assembly exploded view
A Roof rafter (CTR-0565) F 1/2 x 1-3/4 in. flange bolt (S-10252)
B Left purlin clip (CTR-0099) G 1/2 in. flange nut (S-10253)
C Right purlin clip (CTR-0100) H Purlin
D 1/2 x 1-3/4 in. flange bolt (S-10252) I Assembled A-frame
E 1/2 in. flange nut (S-10253)
Weight of an Assembled Double A-frame
75 ft. Double A-frame
Approximate Weight 1176 lb (533 kg)
Pneg-4075A 75 Ft Diameter 40-Series Bin 91
