42 PNEG-1834 78' Dura-Lok Plank and Support Manual
6. Layouts
78' Floor Bundle Layout

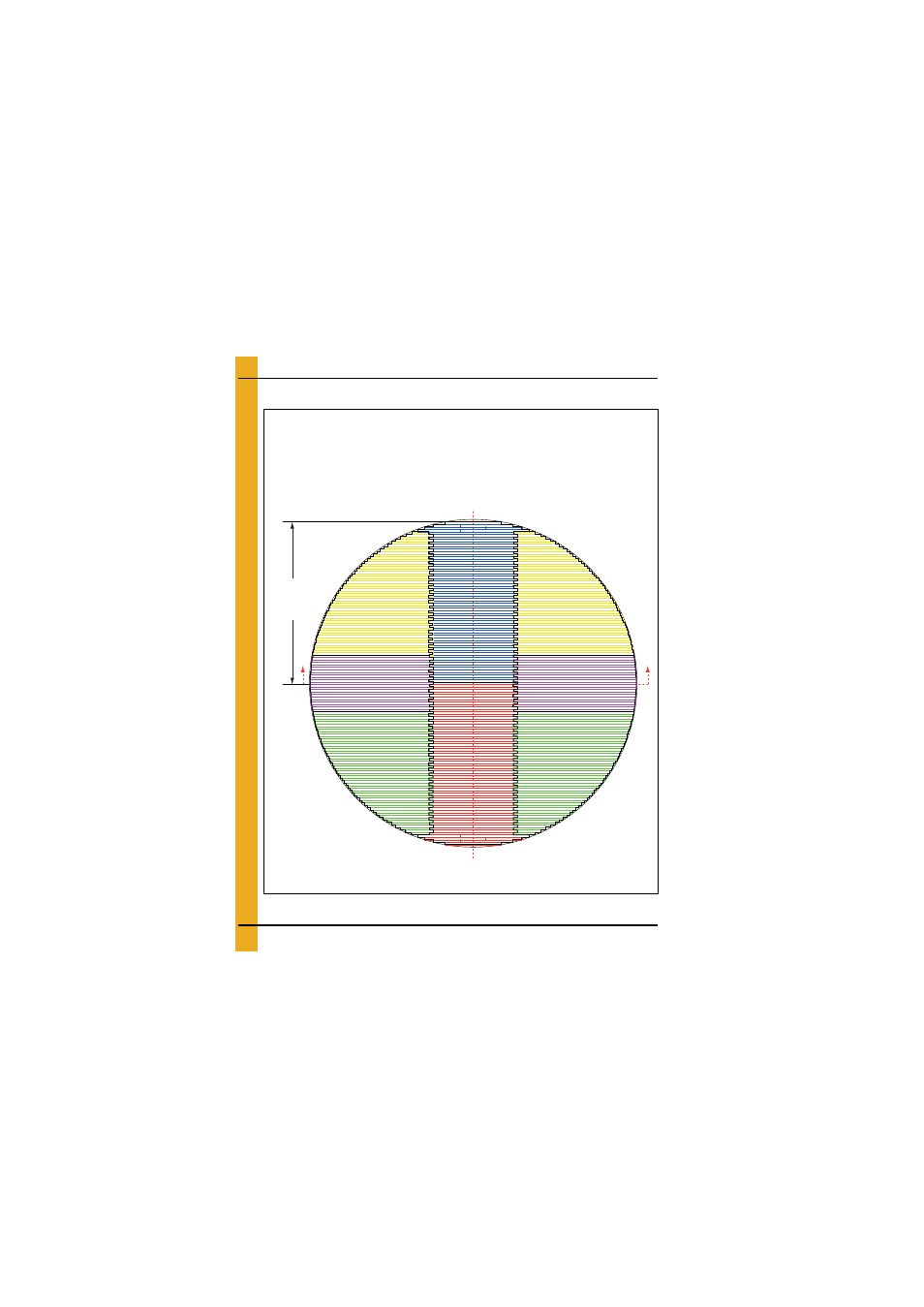

Figure 6Q 78' Plank Layout Bundles
38'-2" Critical
starting
dimension
for first plank Bundle C1
Bundle C2
Bundle AB1
Bundle AB2
Bundle AB1
Bundle AB1
Bundle AB2
Bundle AB1
NOTE: 78' Floor is split up into four (4) different bundles. Two (2) AB1 planks are identical to each other and one AB2,
C1 and C2 planks. The split of the floor is staggered from one 7" plank to the next. The bundle is arranged, so that AB1 planks
are installed together, AB2 planks are installed together and each C1 and C2 are installed separately. The first plank installed
will be out of bundle C1, plank 1. Bundle AB2 is set-up, so that the longer planks are in the middle stacks allowing for
installation of the bundle from top to bottom as shown in
Figure 6Q .
