PNEG-1834 78' Dura-Lok Plank and Support Manual 31
6. Layouts
78'-16" Monorail Spacing Layout

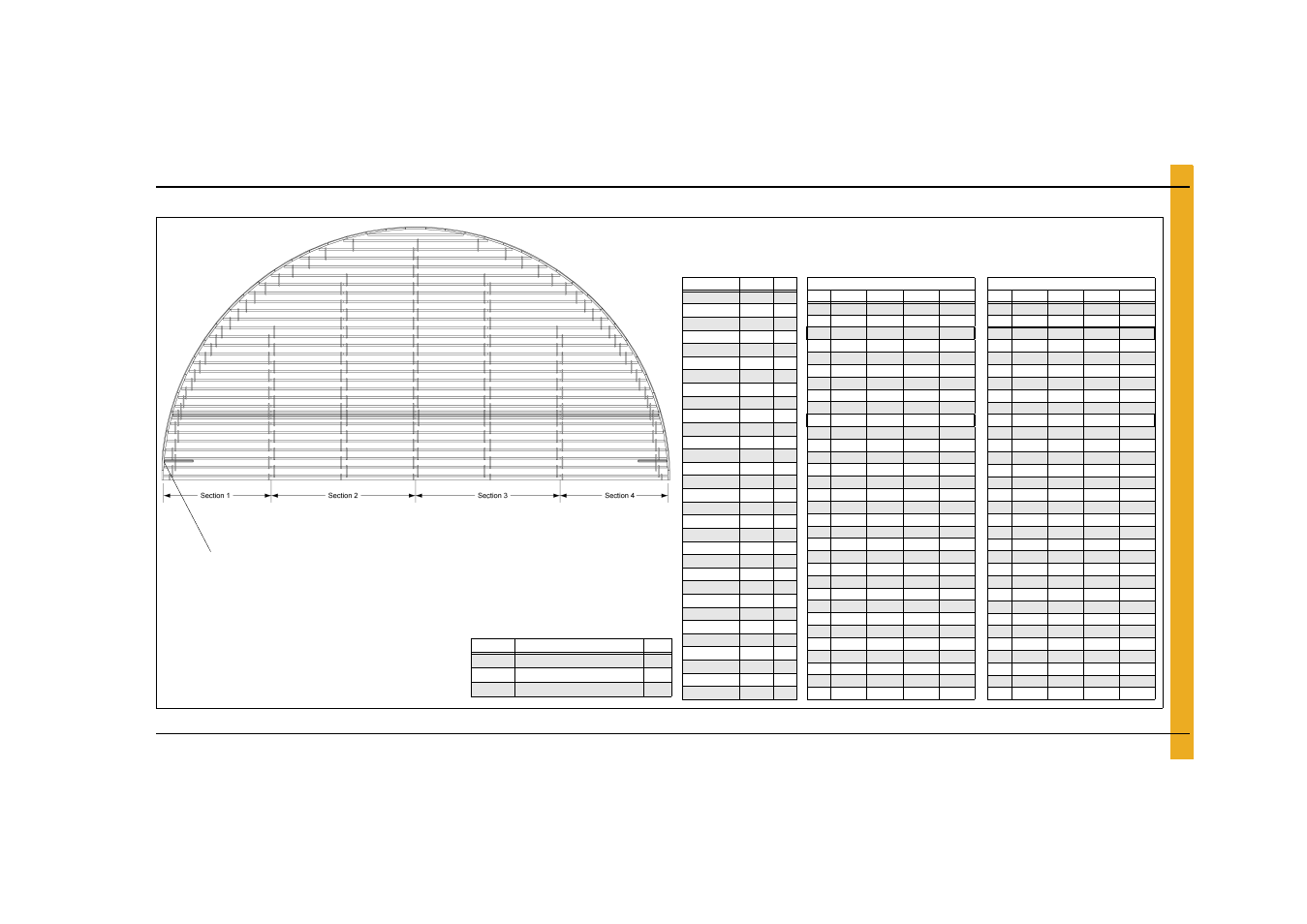

Figure 6F 78' Diameter Bin with 16" Monorail Spacing
Part # Description Qty
FL-404-16 16" Monorail Tie Bar 350
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 120
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 1180
Bill of Materials
Part # Length Qty
A-22MONO 264 92
A-21.25MONO 255 4
A-20.42MONO 245 4
A-20MONO 240 4
A-19.42MONO 233 4
A-18.33MONO 220 4
A-17.58MONO 211 4
A-17.2MONO 206 4
A-16.4MONO 197 4
A-16.3MONO 196 4
A-16.25MONO 195 4
A-16.08MONO 193 4
A-15.91MONO 191 4
A-15.83MONO 190 4
A-15.7MONO 188 4
A-15.3MONO 184 4
A-15.17MONO 182 4
A-15MONO 180 4
A-14.9MONO 179 4
A-14.75MONO 177 4
A-14.67MONO 176 4
A-14.58MONO 175 2
A-14.42MONO 173 4
A-14.17MONO 170 4
A-13.7MONO 164 4
A-13.2MONO 158 4
A-12.83MONO 154 4
A-12.5MONO 150 4
A-11.83MONO 142 4
A-4.33MONO 52 4
A-3MONO 36 106
78' Diameter 16" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4
1 197 264 264 197
2 196 264 264 196
* 2A 52 0 0 52
3 195 264 264 195
4 193 264 264 193
5 191 264 264 191
6 188 264 264 188
7 184 264 264 184
8 182 264 264 182
* 9 180 264 264 180
10 179 264 264 179
11 176 264 264 176
12 170 264 264 170
13 164 264 264 164
14 158 264 264 158
15 150 264 264 150
16 142 264 264 142
17 264 264 264 0
18 255 264 255 0
19 245 264 245 0
20 233 264 233 0
21 220 264 220 0
22 206 264 206 0
23 190 264 190 0
24 173 264 173 0
25 154 264 154 0
26 264 264 0 0
27 240 240 0 0
28 211 211 0 0
29 177 177 0 0
30 264 0 0 0
31 175 0 0 0
23.77 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4
1 500.38 670.56 670.56 500.38
2 497.84 670.56 670.56 497.84
* 2A 132.08 0 0 132.08
3 495.3 670.56 670.56 495.3
4 490.22 670.56 670.56 490.22
5 485.14 670.56 670.56 485.14
6 477.52 670.56 670.56 477.52
7 467.36 670.56 670.56 467.36
8 462.28 670.56 670.56 462.28
* 9 457.2 670.56 670.56 457.2
10 454.66 670.56 670.56 454.66
11 447.04 670.56 670.56 447.04
12 431.8 670.56 670.56 431.8
13 416.56 670.56 670.56 416.56
14 401.32 670.56 670.56 401.32
15 381 670.56 670.56 381
16 360.68 670.56 670.56 360.68
17 670.56 670.56 670.56 0
18 647.7 670.56 647.7 0
19 622.3 670.56 622.3 0
20 591.82 670.56 591.82 0
21 558.8 670.56 558.8 0
22 523.24 670.56 523.24 0
23 482.6 670.56 482.6 0
24 439.42 670.56 439.42 0
25 391.16 670.56 391.16 0
26 670.56 670.56 0 0
27 609.6 609.6 0 0
28 535.94 535.94 0 0
29 449.58 449.58 0 0
30 670.56 0 0 0
31 444.5 0 0 0
NOTE: Eighty (80) total outer perimeter 3' monorail pieces.
See
Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
