10. Belting, Splicing and Buckets
PNEG-681 Series II Bucket Elevator 25
4. Loosen the bolts attaching the channels of the weight frame assembly to the bearing plate assembly
before adjusting the bearing screws.
5. After adjustments have been made, re-tighten bolts and snug the bearing plate adjustment screw
lock nuts. (See Figure 10B.)
NOTE: Lowering the bearing plate which the belt is tracking towards on the boot pulley should cause the
belt to track back towards the center of the pulley. Inversely, raising the bearing plate which the
belt is tracking away from will also center the belt.

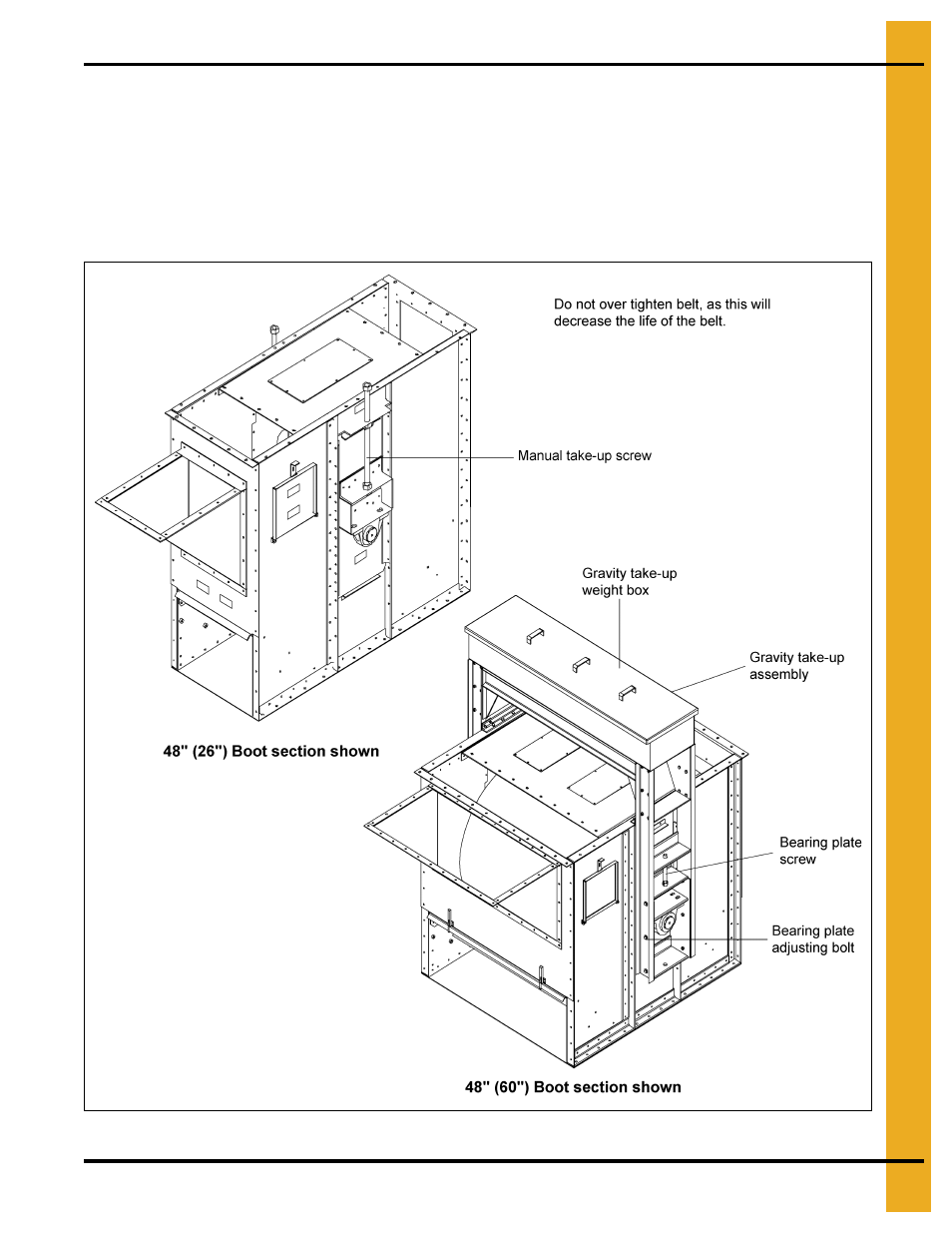

Figure 10B Take-Ups
