7. Trunking

18

PNEG-681 Series II Bucket Elevator

Pressure Relief Trunking

Pressure relief trunking is standard trunking that has been modified to include two (2) panels specifically
designed for pressure relief.

NOTE: This unit requires special attention to the relief panel. This area must be inspected for damage to

the panel, frame and particularly the hardware. DO NOT INSTALL TRUNKING IF THERE IS ANY
APPARENT DAMAGE OR DEFECT.

1. These panels will be located on the short sides of the trunking directly opposite of each other and

centered on ten foot (10') sections of trunking.

2. Two (2) tie angles are included with the mounting hardware.

3. Systems utilizing 42" diameter and larger pulleys require the installation of a cross tie located on

the legs.

(See Figure 7C.)

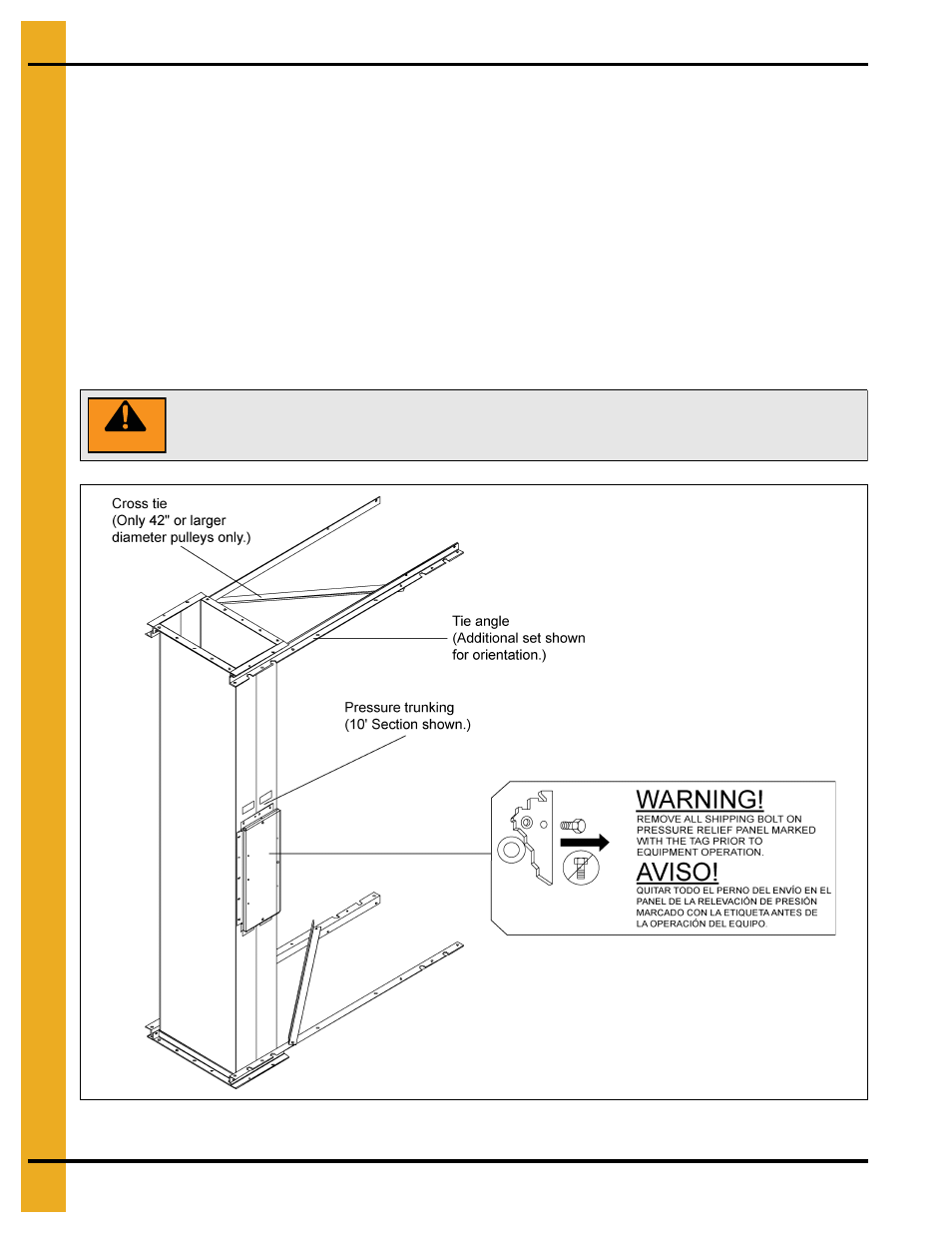

Figure 7C Pressure Relief Trunking

WARNING

Remove all shipping bolts in the pressure relief panels prior to operating any
bucket elevator.
