6. Boot Section

16

PNEG-681 Series II Bucket Elevator

Inspection Sections

The inspection section of the GSI Bucket Elevator has been designed for easy installation
and maintenance.

1. The removable panels can be installed in any order, to allow for the installation of inspection doors

at any preferred locations.

NOTE: Typical installations often place the inspection section directly above the boot on the up-leg side

as the first trunking section.

NOTE: Installation will vary and depend on the configuration and application.

NOTE: Along with the inspection section, you will receive installation hardware and two (2) tie angles.

Units containing 42" diameter pulleys and larger, will include a cross tie on the legs, which will be
included.

(See Figure 6B below

and Figure 7A on Page 17.)

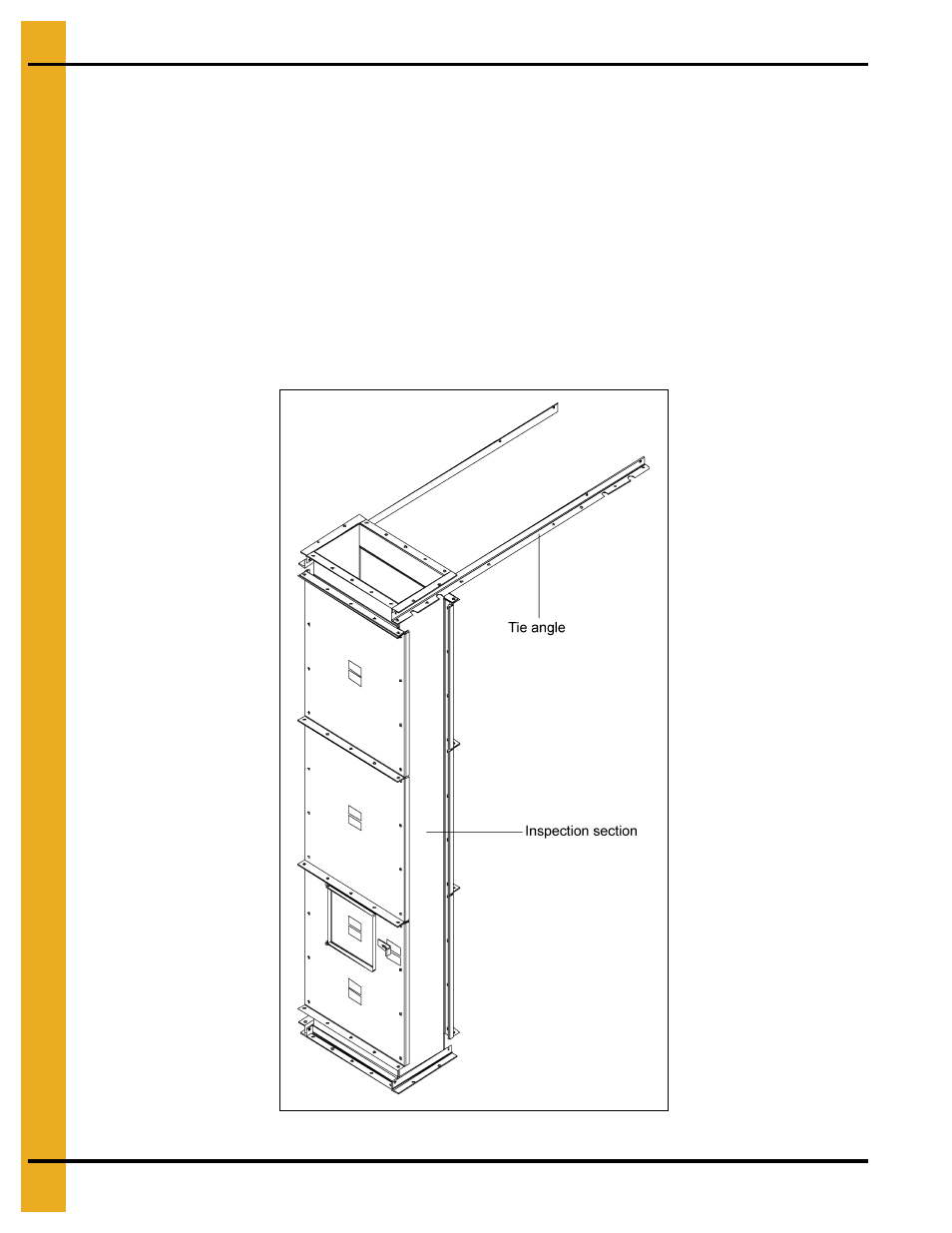

Figure 6B Inspection Section
