INSTALLATION
13
PNEG-1521 Commercial Direct Gear Drive Bin Sweep Auger
For bins with raised metal floors, it is necessary to cut openings in the floor for the Centerwell and
Intermediate Wells.
A. Make sure the metal floor is high enough above the concrete base so there is space for the wells. It
would be convenient to complete assembly of the bin floor as the power sweep is being installed for
better access to components under the floor.
B. Locate the center of the bin and make a cut-out in the bin floor for the Centerwell.
2. POWER SWEEPS IN BINS WITH RAISED METAL FLOORS
CENTERWELL CUT-OUT AND LOCATION
C. Place the Centerwell into position, with the vertical shaft between the two halves of the gearbox at the
center of the bin. Place suitable supports under the Centerwell to hold it in position.
Center
of Bin

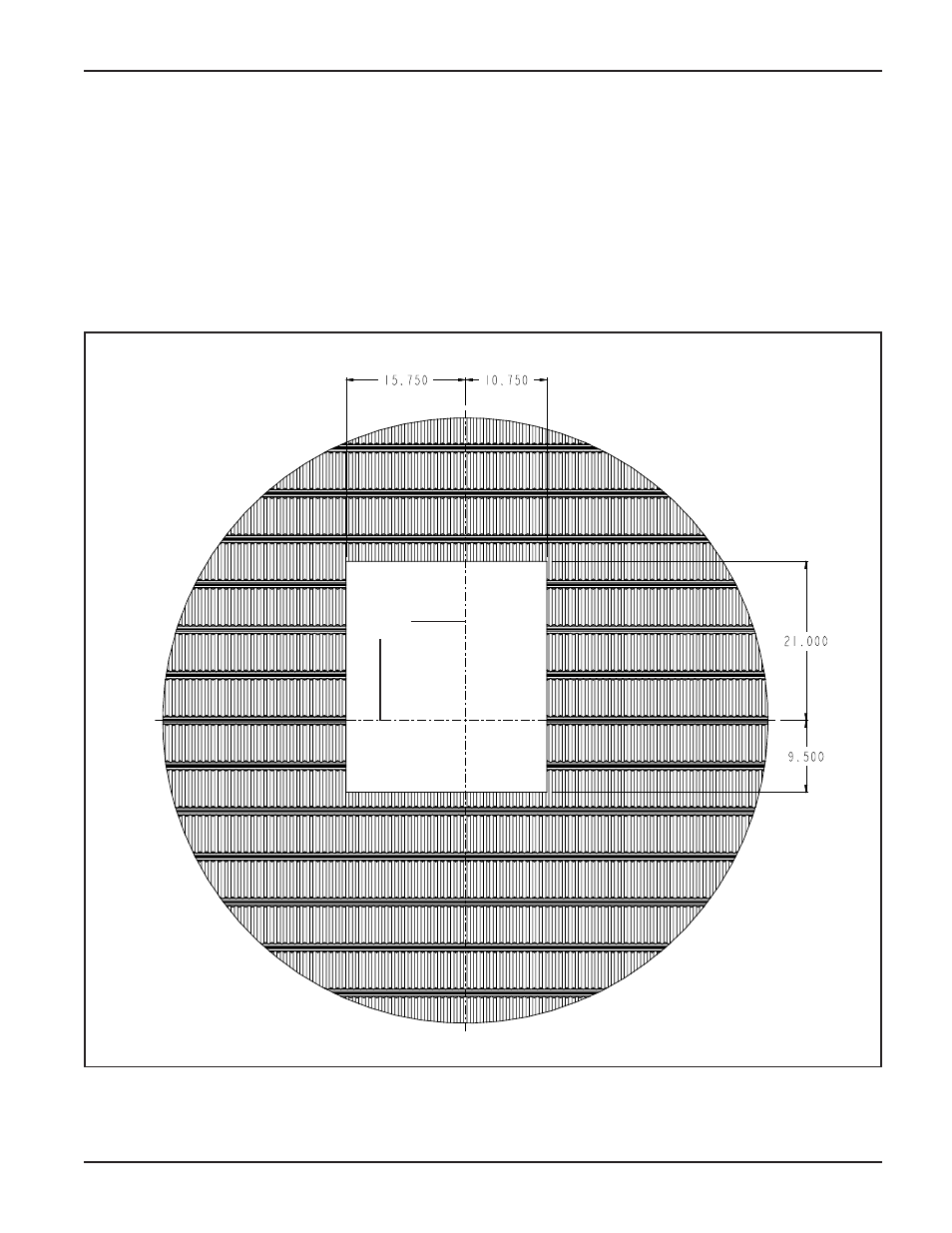

FIG. 2-A CENTER CUT
