12-18" FULL FLOOR TRANSITION

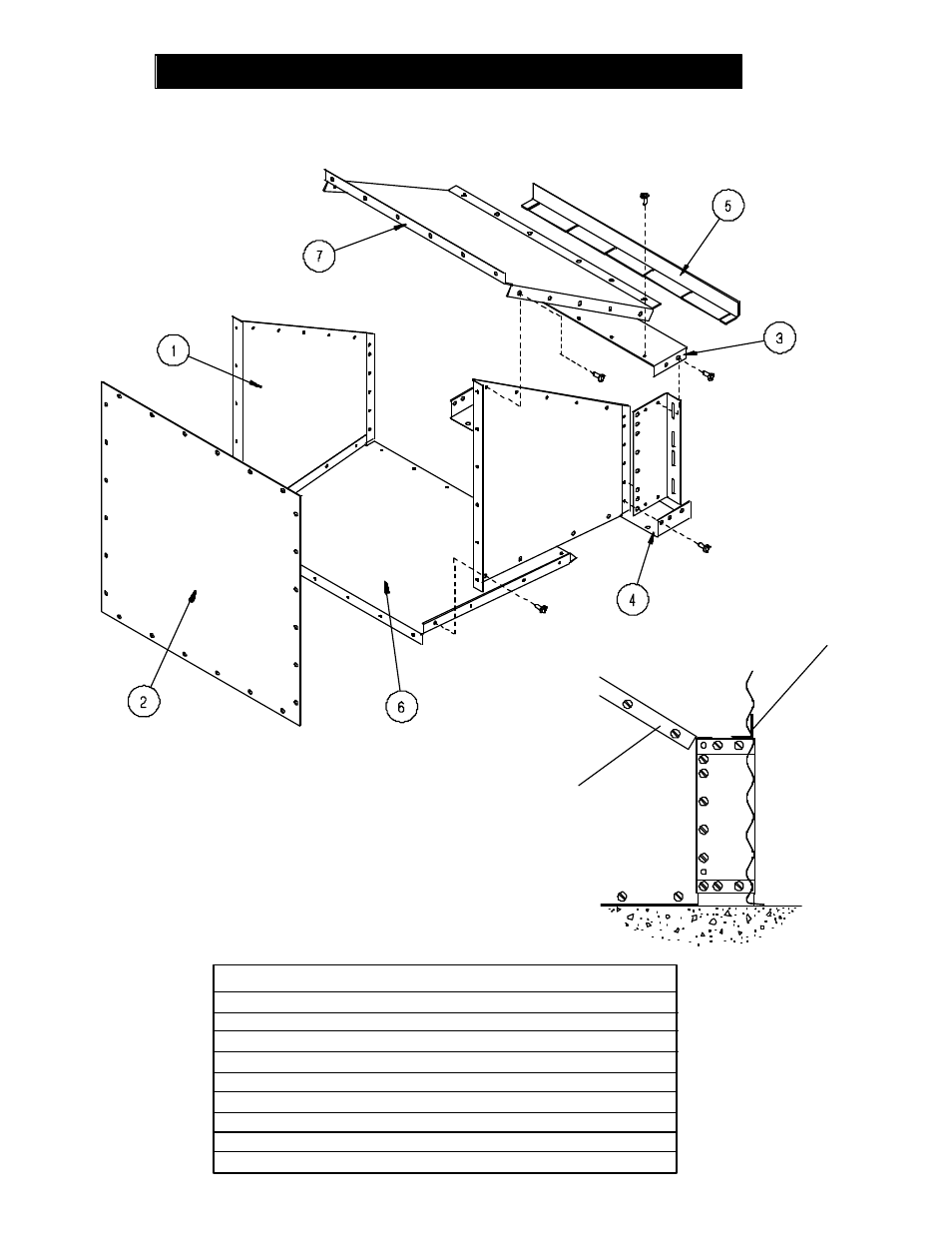

TRANSITION ASSEMBLY
TR-4734
Part Number
TR-4724-1
TR-4724-2
TR-4767
TR-4726
TR-4727
TR-4728
TR-4729
TR-4730
TR-4731
Key
1
1
2
3
4
5
6
7
8
Description
Transition side
Transition side
Transition faceplate
Top entrance collar piece
Bottom entrance collar
Sizing angle
Transition bottom
Transition top
Entrance collar side bracket
The flanges on transition top
are to go on the outside of
transition sides. The flanges
on transition bottom are to
go on the inside of transition
sides.
Sizing angle is in-
stalled on inside of
bin sidewall sheet as
shown.
