3. Installation
PNEG-1556 8", 10" and 12" Commercial Vertical Drive Unit - Dual Drive 19
Installing the Motor Mount Plate (Continued)

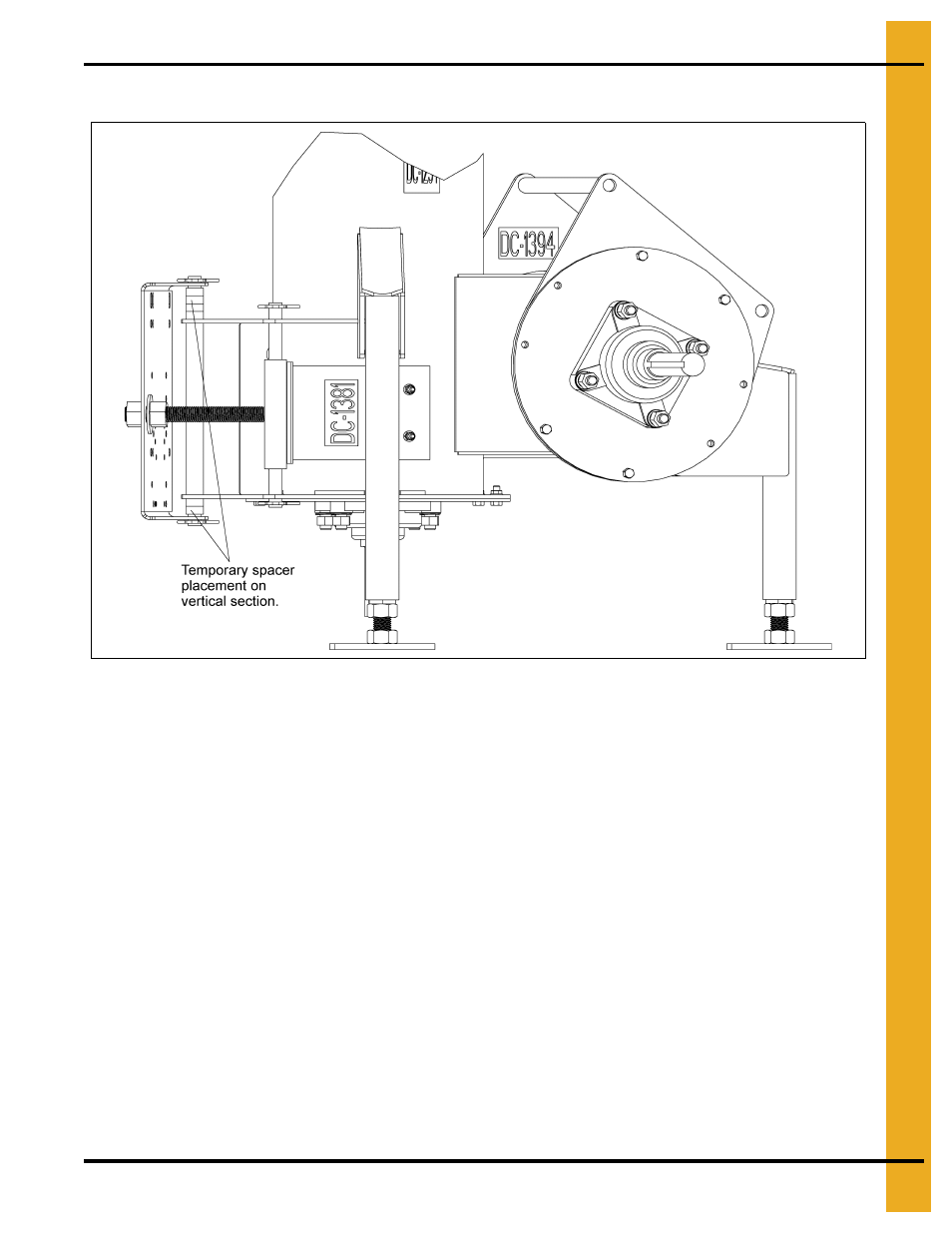

Figure 3K
E. Secure the motor mount pivot rod in place with two (2) 3/16" x 2" cotter pins. With the cotter pins in
the pivot rod, bend one tab of the cotter pin back so that it touches the pivot rod and bend the other
tab of the cotter pin away from the first tab.
F. Loosely install the upper motor mount adjustment washer and nut onto the threaded rod, over the
motor mount plate.
NOTE: The number of spacers will vary between each size of vertical unload.
