Banks Power Chevy_GMC Trucks: Duramax LMM (Diesel ’07 - 10 6.6L) Tuner- Six-Gun Diesel Tuner '07-09 (PDA) Compatible w_ Optional PowerPDA User Manual
Page 7
96508 v.7.0
7
1.
Disconnect the battery ground
cables from each of the batteries.
Secure the cables so that they do not
come in contact with the battery posts
during the installation.
2.
Place the Banks Six-Gun Tuner on
top of the fuse box cover. Direct the
wire harness towards the rear of the
vehicle as shown in Figure 2.
Note: Do not attach the tuner at this
time.
3.
Locate the black and gray wire
harness locking connectors between
the brake fluid reservoir and the air
conditioning compressor. Slide the
green locking tabs back and lift the
blue connector locks to disconnect the
connector pairs. See Figure 3.
Section 1
INSTALLATION OF WIRING HARNESS, CONNECTIONS AND SIx-GUN
DIESEL TUNER

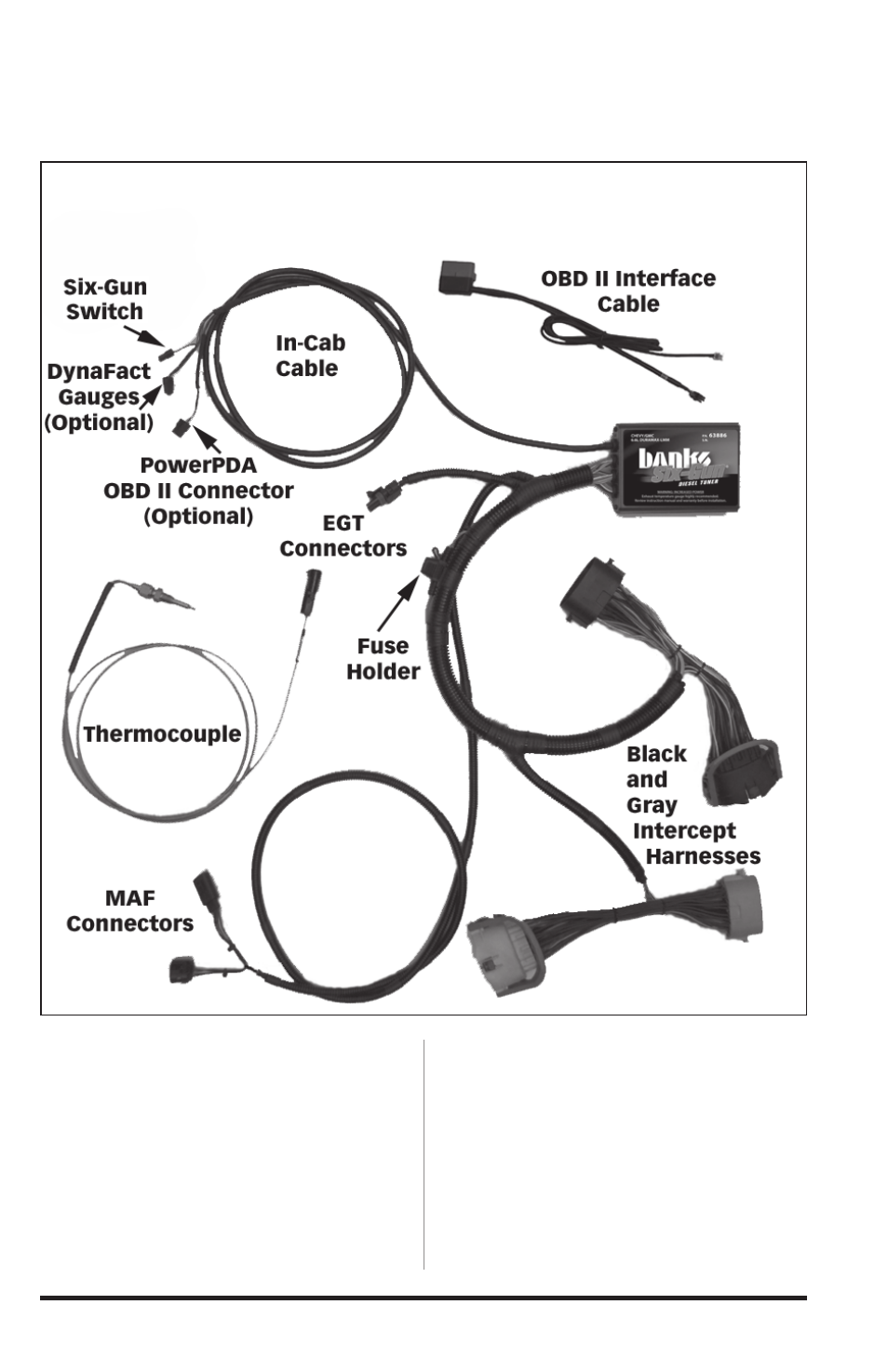

Figure 1 Six-Gun Tuner and supplied wiring harness
