97276 v.1.0
9

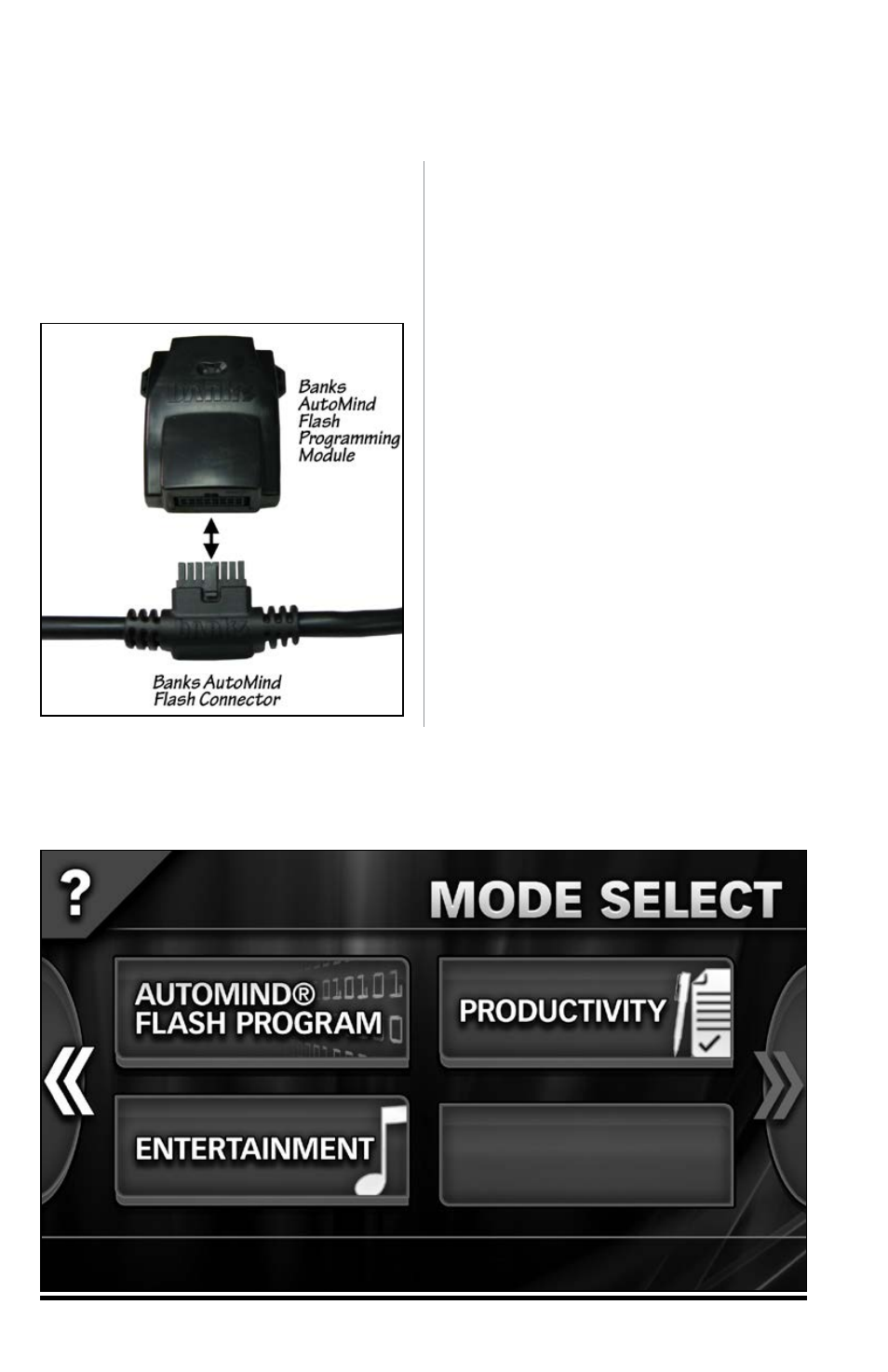

the Banks AutoMind Flash Programming
Module to the AutoMind Flash connector
on the Banks com-Link communication
Bridge harness. See Figure 2.
Secure the wiring away from any pedals
or other moving components. Use cable
ties to secure the wiring under the dash.
NOTE: It is recommended (but not
absolutely necessary) to remove the
Banks AutoMind Flash Programming
Module after calibrating your vehicle.
Make sure to have access to the
AutoMind Flash Programming Module to
remove and reconnect if needed.
Turn the vehicle key to the on position
and allow the iQ to start up. If the iQ is
not in the ‘Mode Select’ menu already,
make your way to ‘Mode Select’ menu
by press the ‘iQ home’ icon. Navigate
by pressing the left or right of the
screen in the ‘Mode Select’ menu to
locate the ‘AutoMind Flash Program’
button. See Figure 3.
NOTE: The ‘AutoMind Flash Program’
button will only be active when the
AutoMind Flash Programming Module
is plugged in. It will be grayed out
when disconnected.
-END, SECTION 3-
Figure 2
Figure 3
