97270 v.4.0
11
proper vehicle gauge display and/or
other drivetrain functions.
Highlight to select an available parameter
to modify and press the ‘OK’ button. In
the parameter menu, scroll Up or Down
to select the appropriate/desired value
and press ‘OK’ to save your changes.
NOTE: If you have previously calibrated
your vehicle with the Banks AutoMind
programmer and made changes to
adjustable parameters, the Programmer
will retain your most recent parameter
selections. To modify your selections
when reflashing your vehicle adjust the
parameters as desired in the adjust
options screen.
7.
Once you have finished modifying the
available adjustable parameter, scroll
down, select continue, and press the
‘OK’ button to save changes and begin
installing the calibration.
8.
The AutoMind will incorporate your
new adjustments and create a new
calibration file. It will then ask if you
would like to continue. Select ‘YES’ to
install the calibration or ‘NO’ to return
to the ‘TUNE VEHICLE’ menu, then press
‘OK’.
9.
Follow the on screen instructions
and turn the ignition key ‘ON’ when
prompted by the programmer, but do
not start the engine.
NOTE: The initial installation process may
take several minutes to complete.
WARNING: Do not unplug the
Banks AutoMind Programmer
while uploading or downloading a
program. Doing so can damage the
vehicles ECM.
10.
The Banks AutoMind programmer
will begin to download the selected
calibration to the ECM. The Banks
AutoMind programmer message
center will display the percentage of
completion.
11.

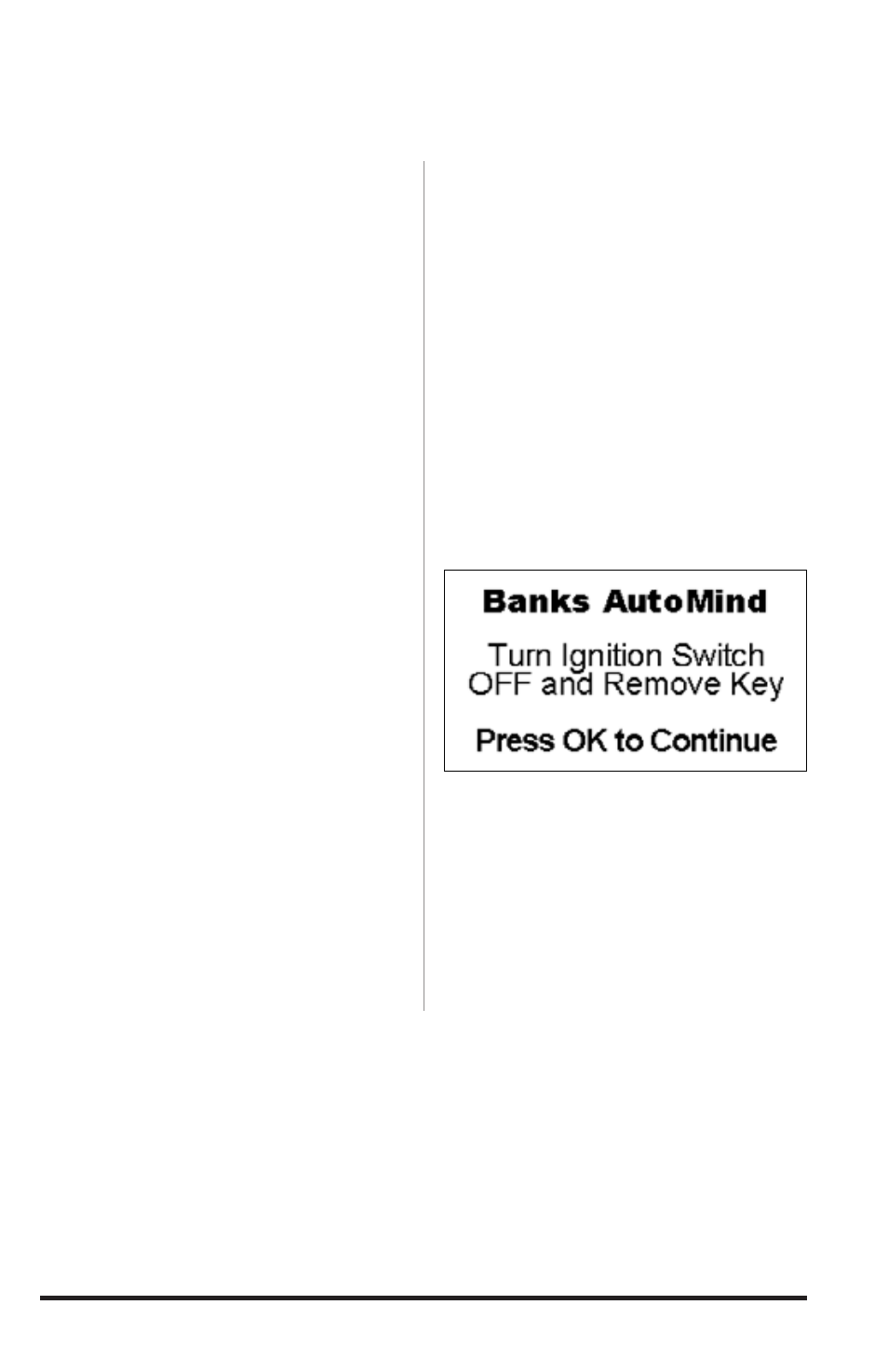

When the process is complete the
screen will display “Turn Ignition Switch
OFF and Remove Key, Press OK to
continue”. See Figure 5.
12.
The Calibration Process is now
complete. You may unplug the AutoMind
programmer and drive your vehicle.
NOTE: Before changing to a
different calibration, vehicle must
be returned to stock first.
-END, SECTION 4-
Figure 5
