4. Installation and wiring
 First connect the load wire, then the power wire.

 Make sure short circuit cannot occur between connecting wire

before you turn on the power.

 The supply voltage of the controller ranges between

DC12V~DC24V. Using other voltages will damage the controller.

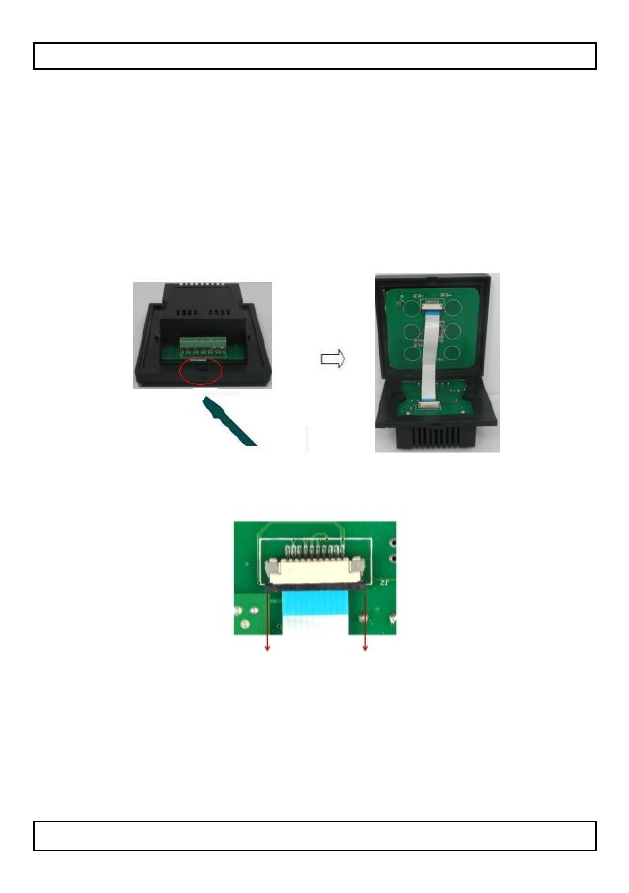

Step 1 - Open the touch panel
 As shown, gently open the touch panel (for example with a small

screwdriver).

Step 2 – Disconnect the connector cable
 Open the connector and gently remove the connector cable.

Step 3 - Choose a wiring method
Connect the wires according to the mode you will use (see section

Wiring below).
Step 4 - Attach the controller on the wall
Attach and screw the controller to the wall as shown in the picture.

The distance between the screws is 60mm.
