SEL
: Confirms analogue mode
CAN : Cancels the current operation and returns to the last confirmed operation
MODE : Change to OFF mode
Mode 3 : OFF
The display reads :
SEL
: Confirms OFF mode
CAN : Cancels the current operation and returns to the last confirmed operation
MODE : Change to DMX mode
Three Different Functions
Function 1 : Monitor

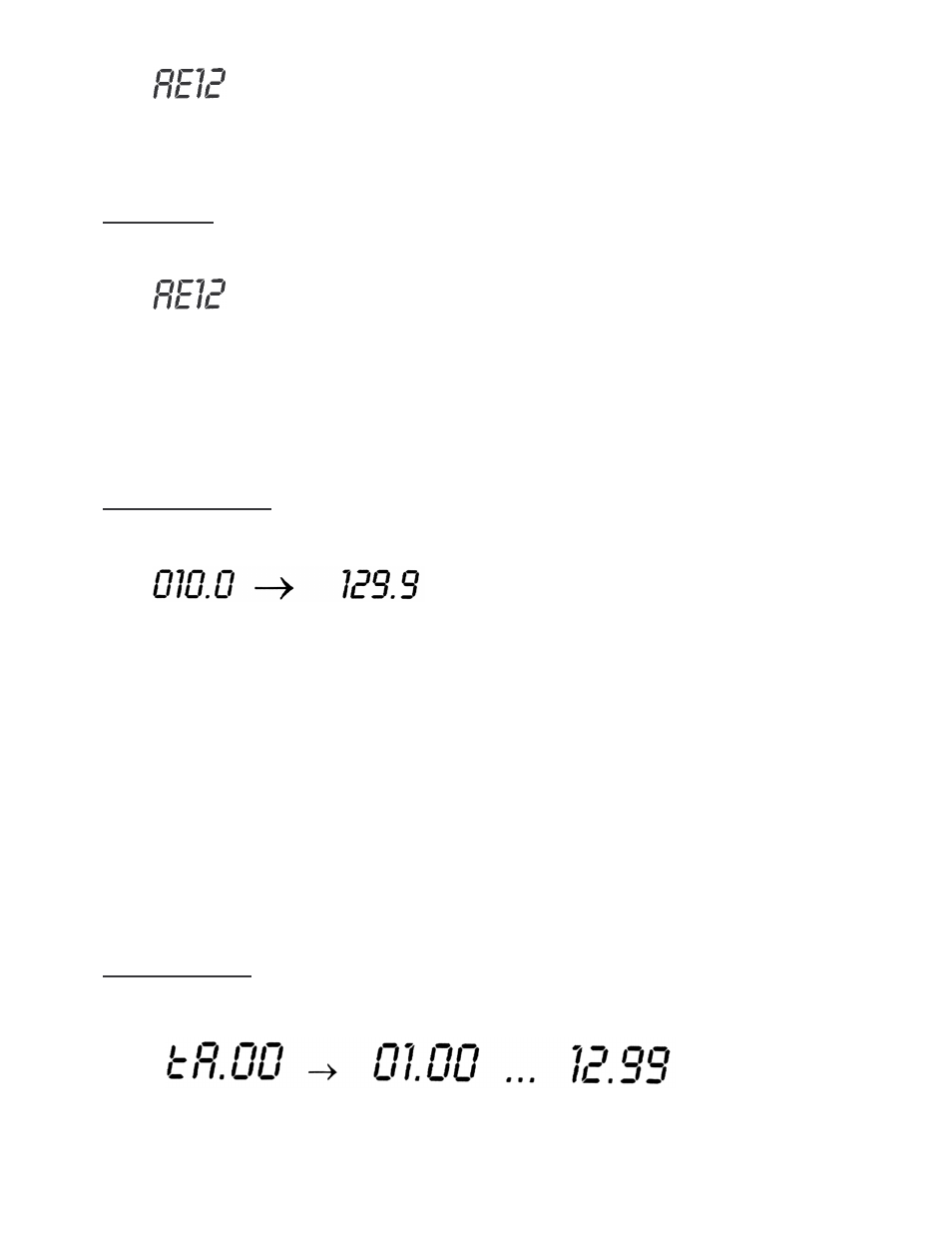

The display reads :
01 – 12 = channels
0.0 – 9.9 = settings of a channel
Settings can be done per channel automatically or manually.
Automatic setting : the display shows the settings of each channel.
Manual setting
: to select channels separately. Can be used to change channels while in
chaser mode.
←
: decrease by one channel
→ : increase by one channel
SET : switch to different settings
CAN : cancels current operation and returns to the previous confirmed one
MODE : change to analogue mode
FUN
: change to TEST function
Function 2 : TEST
The display reads :
