VDPLB3D/VDPLB5D_v2 HQ POWER 4
On Off On Chase 6 Fading – yellow and blue
Off On On Chase 7 Fading – black and white
On On on Chase 8 Fading – all colours above
The speed can be activated by setting DIP switches 4, 5 and 6 as follows:
DIP SWITCH
SPEED RUNNING TIME
4 5 6
Off Off Off Speed 1 0.5 seconds
On Off Off Speed 2 1.5 seconds
Off On Off Speed 3 3 seconds
On On Off Speed 4 4.5 seconds
Off Off On Speed 5 8 seconds
On Off On Speed 6 12 seconds
Off On On Speed 7 50 seconds
On On on Speed 8 60 seconds
Set DIP switch 10 to ON to enter the sound-activated mode.
o

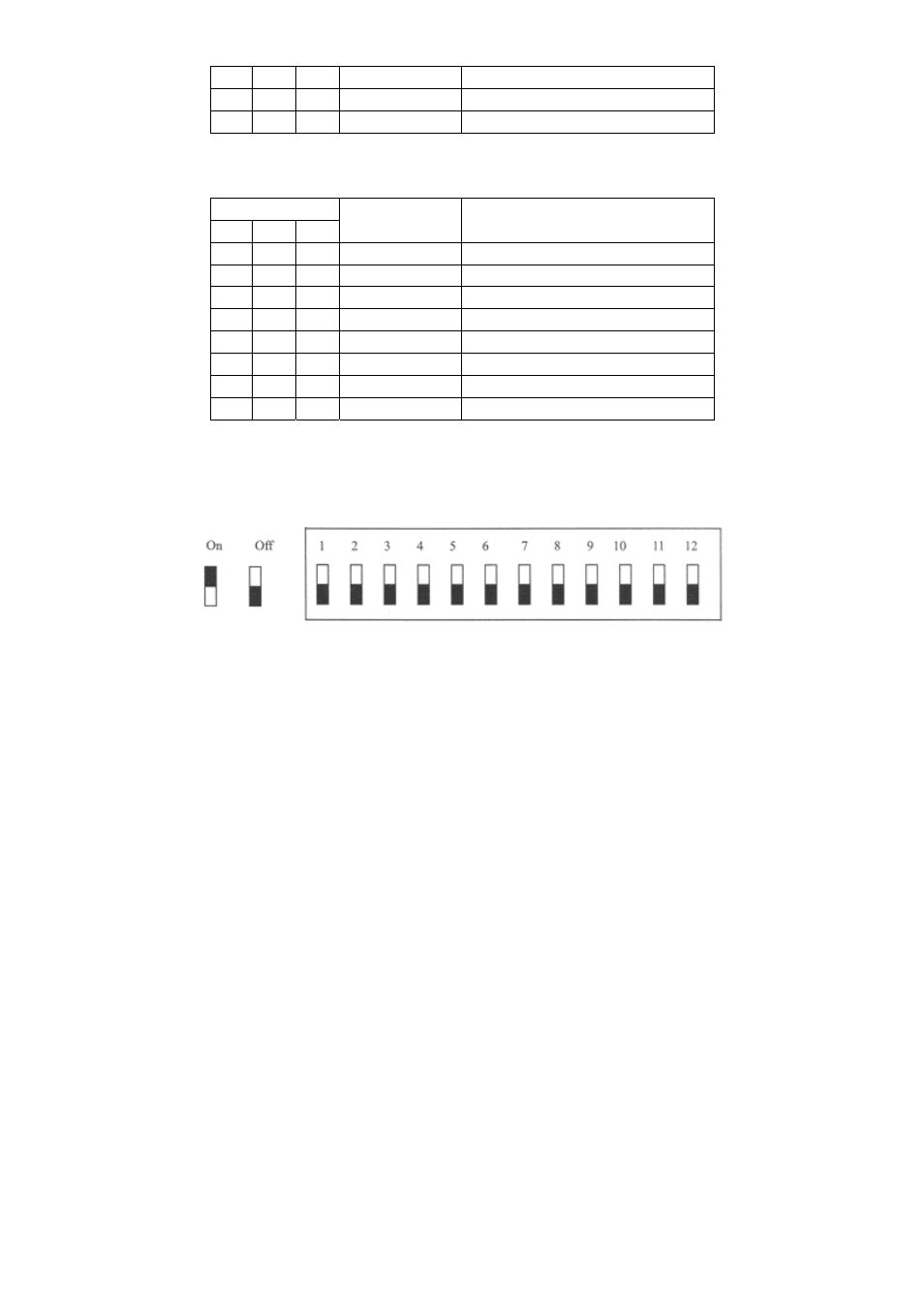

Put the slave unit as follows (DIP switch 10, 11 and 12 to OFF):
6. Cleaning and Maintenance
1. All screws should be tightened and free of corrosion.
2. The housing, visible parts, mounting supports and the installation location (e.g. ceiling, suspension, trussing)
should not be deformed, modified or tampered with e.g. do not drill extra holes in mounting supports, do not
change the location of the connections.
3. Moving mechanic parts must not show any signs of wear and tear.
4. The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
5. Disconnect the device from the mains prior to maintenance activities.
6. Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
7. There are no user-serviceable parts.
8. Contact your dealer for spare parts if necessary.
7. Technical Specifications
Power Supply
max. 230VAC~50Hz
Power Consumption max. 12W
Fuse 1A (order code FF1N)
Dimensions
VDPLB3D Ø300mm
VDPLB5D Ø500mm
Total Weight
VDPLB3D 2.2kg
VDPLB5D 3.8kg
For more info concerning this product, please visit our website www.hqpower.com.
The information in this manual is subject to change without prior notice.
