D9T Track-Type Tractor Specifications

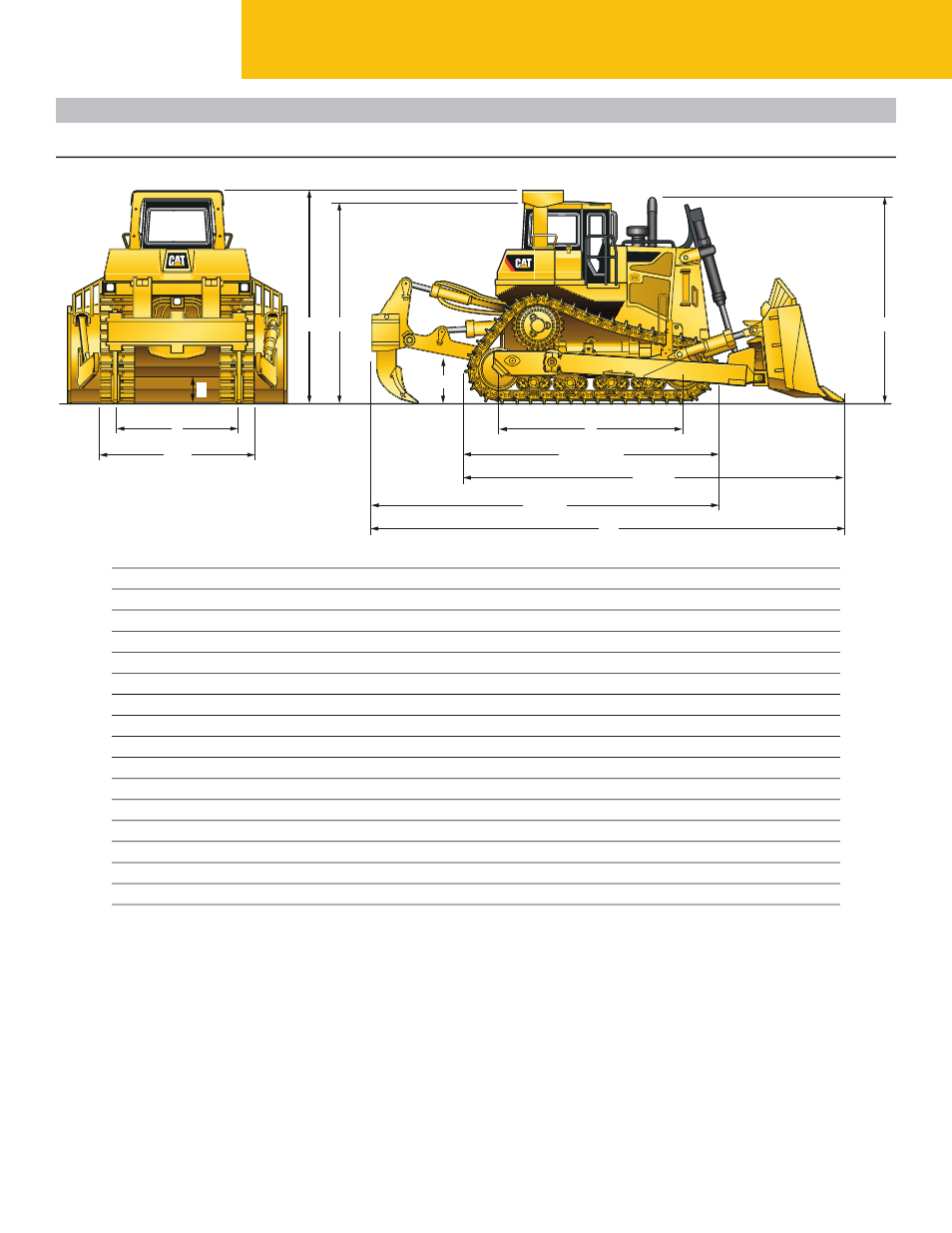

Dimensions
All dimensions are approximate. Dimensions measured from grouser tip of standard shoe on hard surface.
D9T
7 5 6
1
8
2
3, 4
9
10, 11, 12
13, 14
15, 16
17
1 Ground Clearance
2 Track Gauge
3 Width Without Trunnions (Standard Shoe)
4 Width Over Trunnions
5 Height (FOPS Cab)
6 Height (Top of Stack)
7 Height (ROPS/Canopy)
8 Drawbar Height (Center of Clevis)
9 Length of Track on Ground
10 Overall Length Basic Tractor
11 Length Basic Tractor with Drawbar
12 Length Basic Tractor with Winch
13 Length with SU-Blade
14 Length with U-Blade
15 Length with Single-Shank Ripper
16 Length with Multi-Shank Ripper
17 Overall Length (SU-Blade/SS Ripper)
595 mm
2250 mm
2931 mm
3309 mm
3818 mm
3932 mm
3996 mm
763 mm
3474 mm
4911 mm
5242 mm
5545 mm
6601 mm
6967 mm
6529 mm
6538 mm
8219 mm
23.4 in
88.6 in
115.4 in
130.3 in
150.3 in
154.8 in
157.3 in
30.0 in
136.8 in
193.3 in
206.4 in
218.3 in
259.9 in
274.3 in
257.0 in
257.4 in
323.6 in
13
