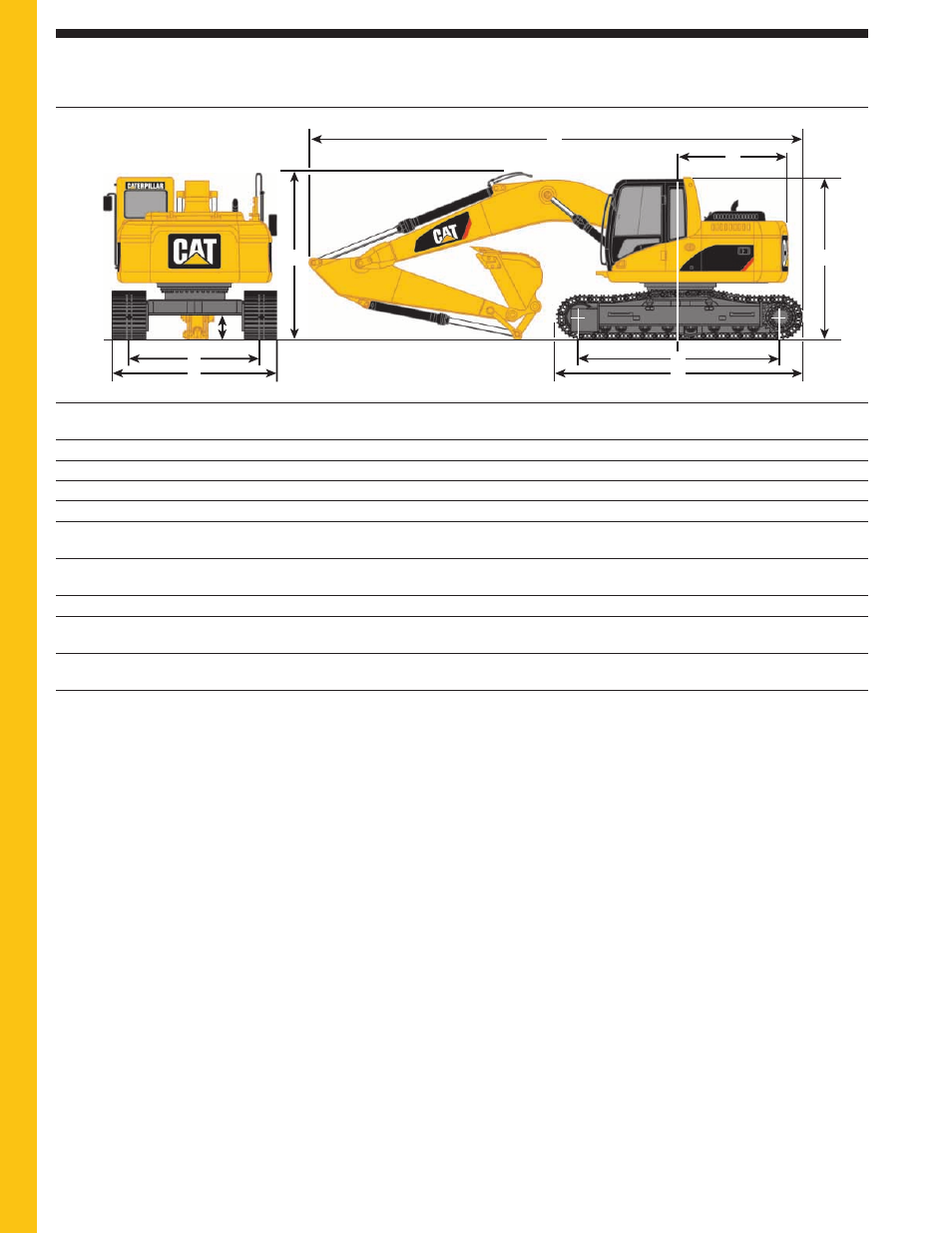

Dimensions
All dimensions are approximate.
Boom Options Reach Reach
5.68 m (18'7") 5.68 m (18'7")
Stick Options R2.9B1 m (9'6") Std/SA R2.5B1 m (8'2") Std/SA
1 Shipping Height 3030 mm (9'11") 3050 mm (10'0")
2 Shipping Length 8790 mm (28'10") 8790 mm (28'10")
3 Tail Swing Radius 2000 mm (6'7") 2000 mm (6'7")
4 Length to Center of Rollers
Long 3650 mm (12'0") 3650 mm (12'0")
5 Track Length
Long 4455 mm (14'7") 4455 mm (14'7")
6 Ground Clearance 450 mm (1'6") 450 mm (1'6")
7 Track Gauge
Long 2380 mm (7'10") 2380 mm (7'10")
8 Transport Width 700 mm Shoes 600 mm Shoes
Long 3080 mm (10'1") 2980 mm (9'9")
9 Cab Height 2950 mm (9'8") 2950 mm (9'8")
* Removing the bucket and quick coupler changes the shipping height to 3390 mm (11'1").
Note: All numbers are approximate.
1
2
9
3
5
4
6
8
7
320D LRR Hydraulic Excavator specifications
