Milton CAT 307D - Manual (Page 9)

9

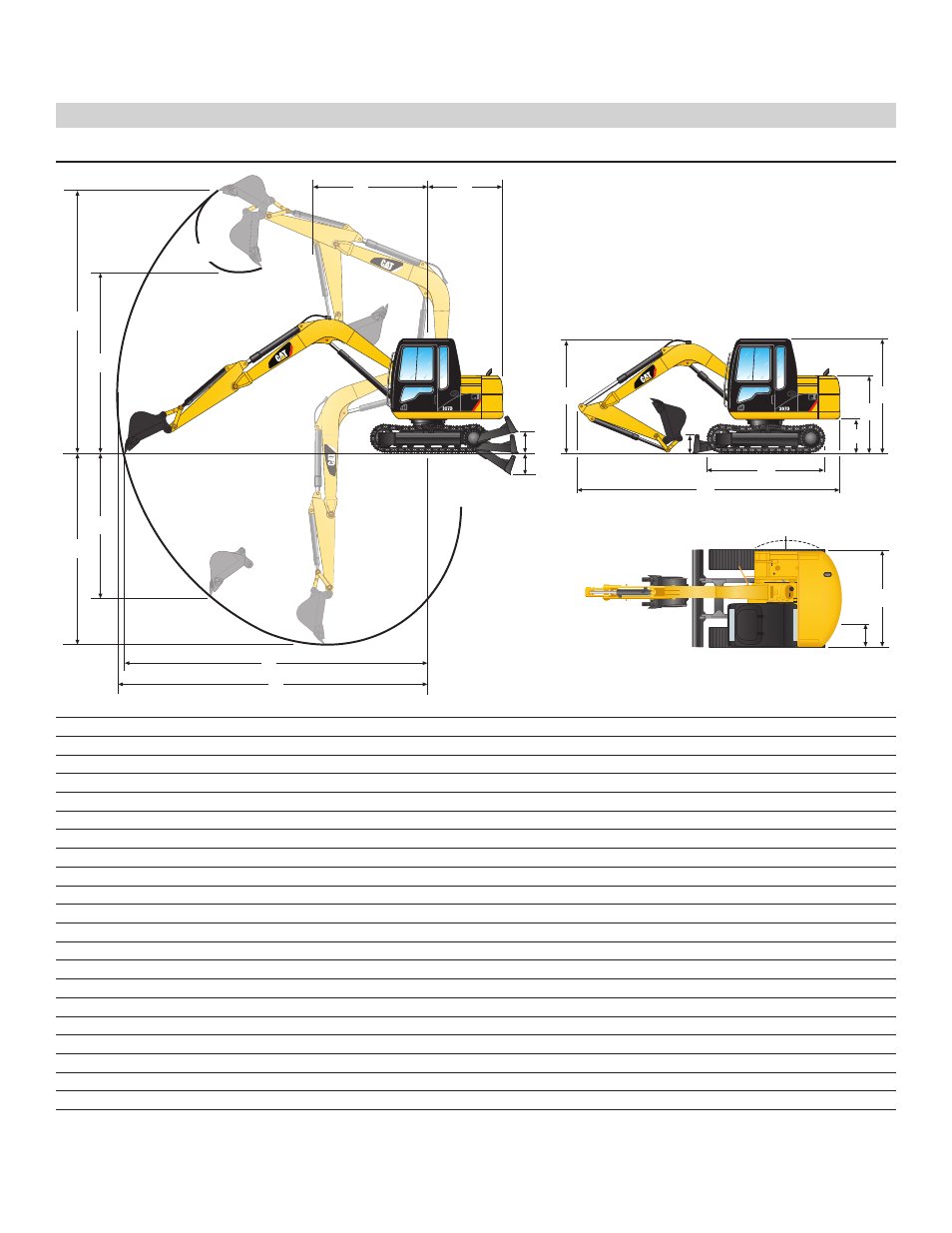

Dimensions
Standard Stick Long Stick
1 4050 mm 13'3" 4600 mm 15'1"
2 3640 mm 11'11" 4170 mm 13'8"
3 6150 mm 20'2" 6670 mm 21'11"
4 6290 mm 20'8" 6790 mm 22'3"
5 7230 mm 23'9" 7640 mm 25'1"
6 5210 mm 17'1" 5610 mm 18'5"
7 1670 mm 5'6" 2230 mm 7'4"
8 1750 mm 5'9" 1750 mm 5'9"
9 380 mm 1'3" 380 mm 1'3"
10 360 mm 1'2" 360 mm 1'2"
11 2630 mm 8'8" 2630 mm 8'8"
12 760 mm 2'6" 760 mm 2'6"
13 2760 mm 9'1" 2760 mm 9'1"
14 5700 mm 18'8" 5730 mm 18'10"
15 450 mm 1'6" 450 mm 1'6"
16 2290 mm 7'6" 2290 mm 7'6"
17 1790 mm 5'10" 1790 mm 5'10"
18 2630 mm 8'8" 2725 mm 8'11"
19 450 mm 1'6" 450 mm 1'6"
20 180° 180°
21 605 mm 2'0" 605 mm 2'0"
Note: All working dimensions are with OSJ bucket.
Without shoe lug.
16
15
14
13
11
17
12
19
18
10
9
7 8
5
6
1
2
3
4
20
21
