Mega Power Dual™
IGBTMOD
1000 Amperes/1700 Volts
CM1000DU-34NF
1 02/10 Rev. 1
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com

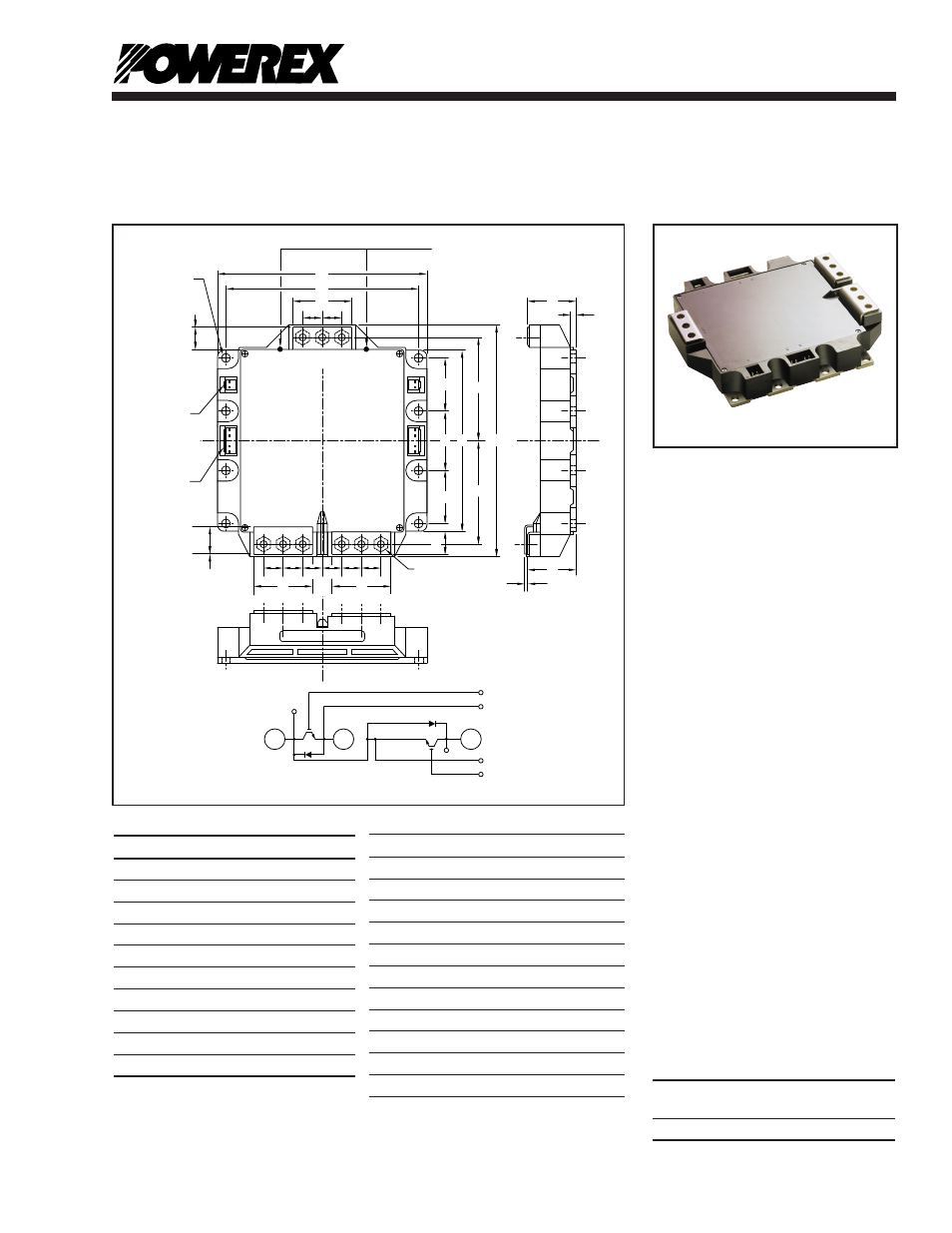

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
L 1.36 +0.04/-0.02 34.6 +1.0/-0.5
M 0.075±0.08 1.9±0.2
P 0.26 6.5
R M6 Metric M6
U 0.62 15.7
V 0.71 18.0
W 0.75 19.0
X 0.43 11.0
Y 0.83 21.0
Z 0.41 10.5
AA 0.22 5.5
Dimensions Inches Millimeters
A 5.91 150.0
B 5.10 129.5
C 1.67±0.01 42.5±0.25
D 5.41±0.01 137.5±0.25
E 6.54 166.0
F 2.91±0.01 74.0±0.25
G 1.65 42.0
H 0.55 14.0
J 1.50±0.01 38.0±0.25
K 0.16 4.0
Housing Type (J.S.T. MFG. CO. LTD)
S = VHR-2N
T = VHR-5N
A
D
P
(8 PLACES)
L
TC MEASURED POINTS
(THE SIDE OF CU BASEPLATE)
L
M
H H H H H H
K
G
U H H
E
F
F
C2E1
E2 C1
G2
E2
G1
E2
C
C2E1
C
G E
E G
C1
E1
C2
LABEL
V
S
T
B
U
C
J
J
G G
R (9 PLACES)
Description:
Powerex IGBTMOD™ Modules are
designed for use in switching two
IGBT applications. Each
module consists of a half-bridge
configuration, with each transistor
having a reverse-connected
super-fast recovery free-wheel
diode. All components and inter-
connects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£ Discrete Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ High Power UPS
£ Large Motor Drives
£ Utility Interface Inverters
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM1000DU-34NF
is a 1700V (V
CES
), 1000 Ampere
Dual IGBTMOD Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 1000 34
