500 PGP-ST
Vishay BCcomponents
Aluminum Capacitors
Power General Purpose Screw Terminals
www.vishay.com For technical questions, contact: [email protected] Document Number: 28390
164 Revision: 25-May-09
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, cylindrical aluminum case,
insulated with a blue sleeve
• Pressure relief in the sealing disc
• Efficient design
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• UPS
• Energy storage in medical or industrial pulse systems
MARKING
The capacitors are marked with the following information:
• Rated capacitance (in µF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code
• Name of manufacturer
• Code for factory of origin
• Code number
QUICK REFERENCE DATA
DESCRIPTION
VALUE
500
Nominal case size (Ø D x L in mm) 50 x 80 to 90 x 220
Rated capacitance range, C
R
1000 µF to 15 000 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
400 V to 450 V
Category temperature range - 40 °C to + 85 °C
Endurance test at 85 °C 2000 hours
Useful life at 85 °C 2000 hours
Shelf life at 0 V, 85 °C 500 hours
Based on sectional specification IEC 60384-4/EN 130300
Climatic category IEC 60068 40/085/56
ST STB

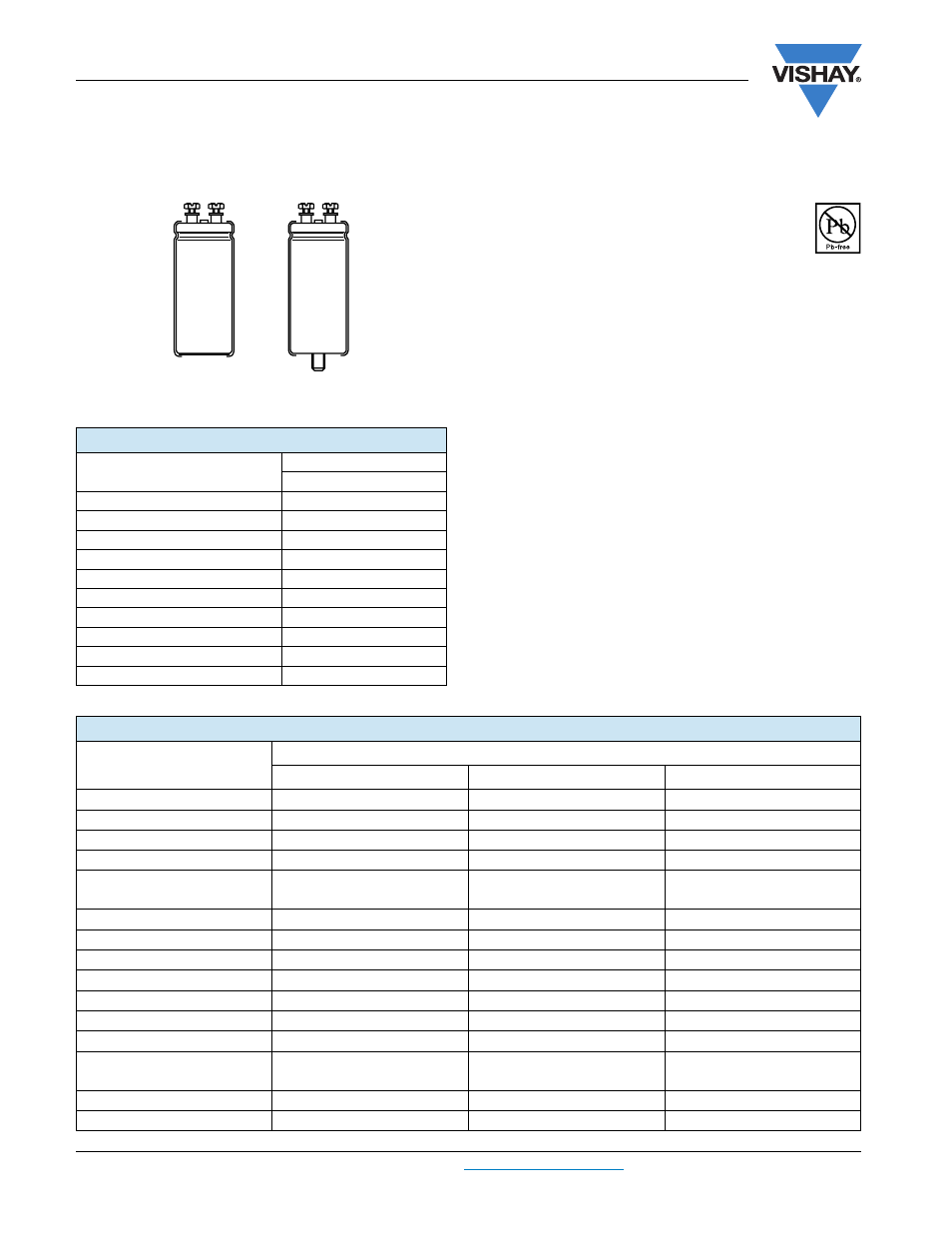

Fig.1 Component outline
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
400 420 450
1000 50 x 80 50 x 80 50 x 80
1200 50 x 80 50 x 80 50 x 80
1500 50 x 105 50 x 105 50 x 105
1800 50 x 105 50 x 105 50 x 105
2200
50 x 105
65 x 105
65 x 105 65 x 105
2700 65 x 105 65 x 105 65 x 105
3300 65 x 105 65 x 105 76 x 105
3900 65 x 105 76 x 105 76 x 105
4700 76 x 105 76 x 114 76 x 114
5600 76 x 114 - 76 x 146
6800 76 x 146 76 x 146 90 x 146
8200 90 x 146 90 x 146 76 x 220
10 000
76 x 220
90 x 146
76 x 220 76 x 220
12 000 76 x 220 - 90 x 220
15 000 90 x 220 90 x 220 -
