051/053 PEC-PW
Aluminum Capacitors
Power Economic Printed Wiring
Vishay BCcomponents
Table 1

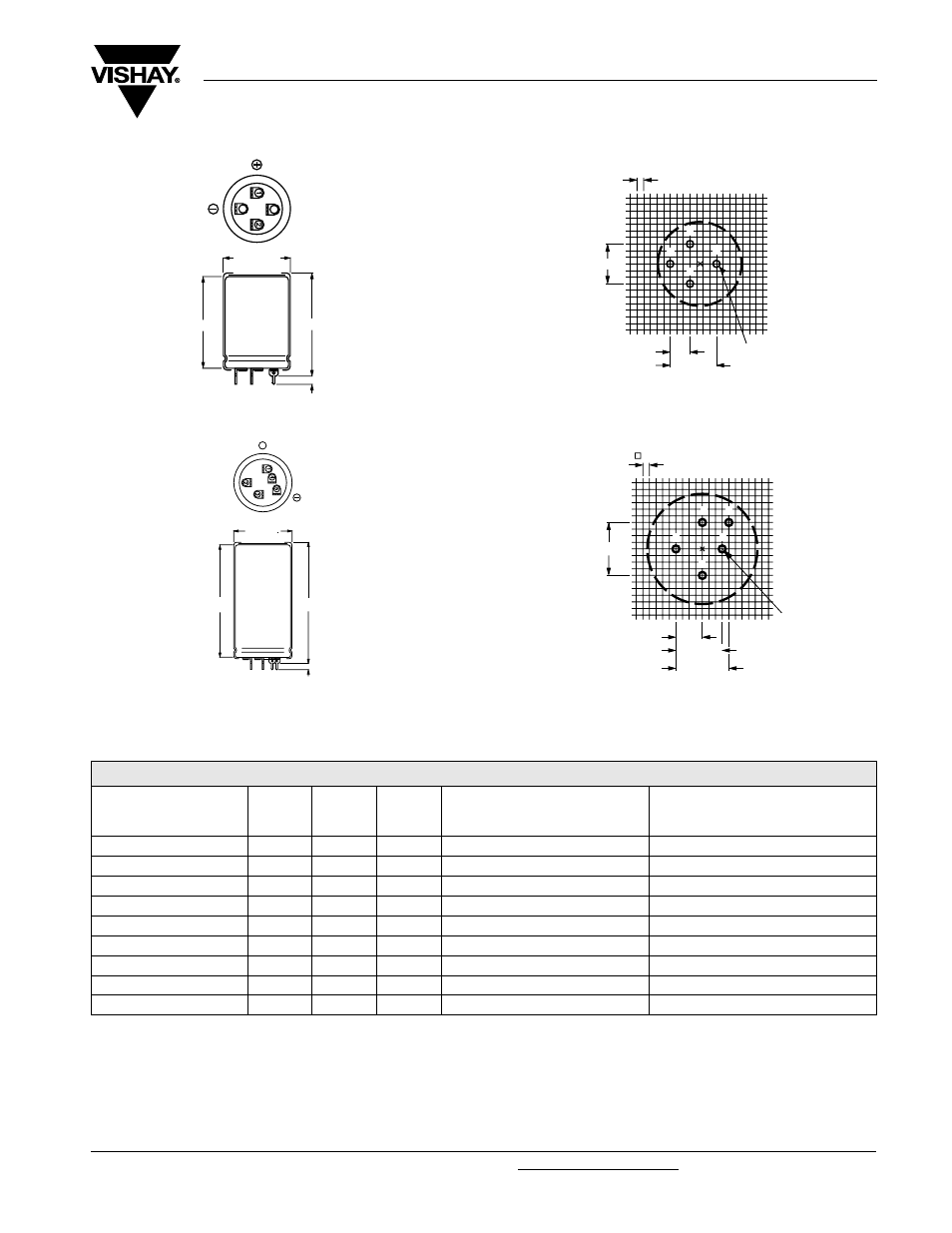

MOUNTING
When a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and/or temperature is applied.
Pin numbers 2, 3 and 4 (if present) must be free from the electrical circuit.
- 3
4.9 ± 0.2
L + 5 max.
Ø D + 1 max.
L
Case
∅ D = 35 mm
Fig.6 Printed wiring pin version
5.1 ± 0.1
L + 5 max.
Ø D + 1 max.
L
Case
∅ D = 40 mm
Fig.8 Printed wiring pin version
MGB267-1
1.3
(4x)
2.5
1
2
3 -
17.5 ± 0.1
7.5 ± 0.1
15 ± 0.1
Case ∅ D = 35 mm
Fig. 7 Mounting hole diagram viewed from component side
1.3
(5 x)
17.5 ± 0.1
2.5
20 ± 0.1
1
2
3
4
-
10 ± 0.1
20 ± 0.1
Case ∅ D = 40 mm
Fig.9 Mounting hole diagram viewed from component side
DIMENSIONS in millimeters, MASS AND PACKAGING QUANTITIES PW versions
NOMINAL
CASE SIZE
Ø D x L
Ø D
max.
L
max.
MASS
(g)
PACKAGING QUANTITIES
(units per box)
CARDBOARD
BOX DIMENSIONS
L x W x H
25 x 30 26 35
≈ 24
100 290 x 280 x 50
25 x 40 26 45 ≈ 28 100 290 x 280 x 60
30 x 40 31 45 ≈ 38 100 340 x 330 x 60
35 x 40 36 45 ≈ 51 50 390 x 198 x 60
35 x 50 36 55
≈ 66
50 390 x 198 x 70
40 x 40 41 45
≈ 78
50 440 x 223 x 60
40 x 50 41 55
≈ 82
50 440 x 223 x 70
40 x 70 41 75
≈ 110
25 230 x 230 x 90
40 x 100 41 105
≈ 176
25 230 x 230 x 120
