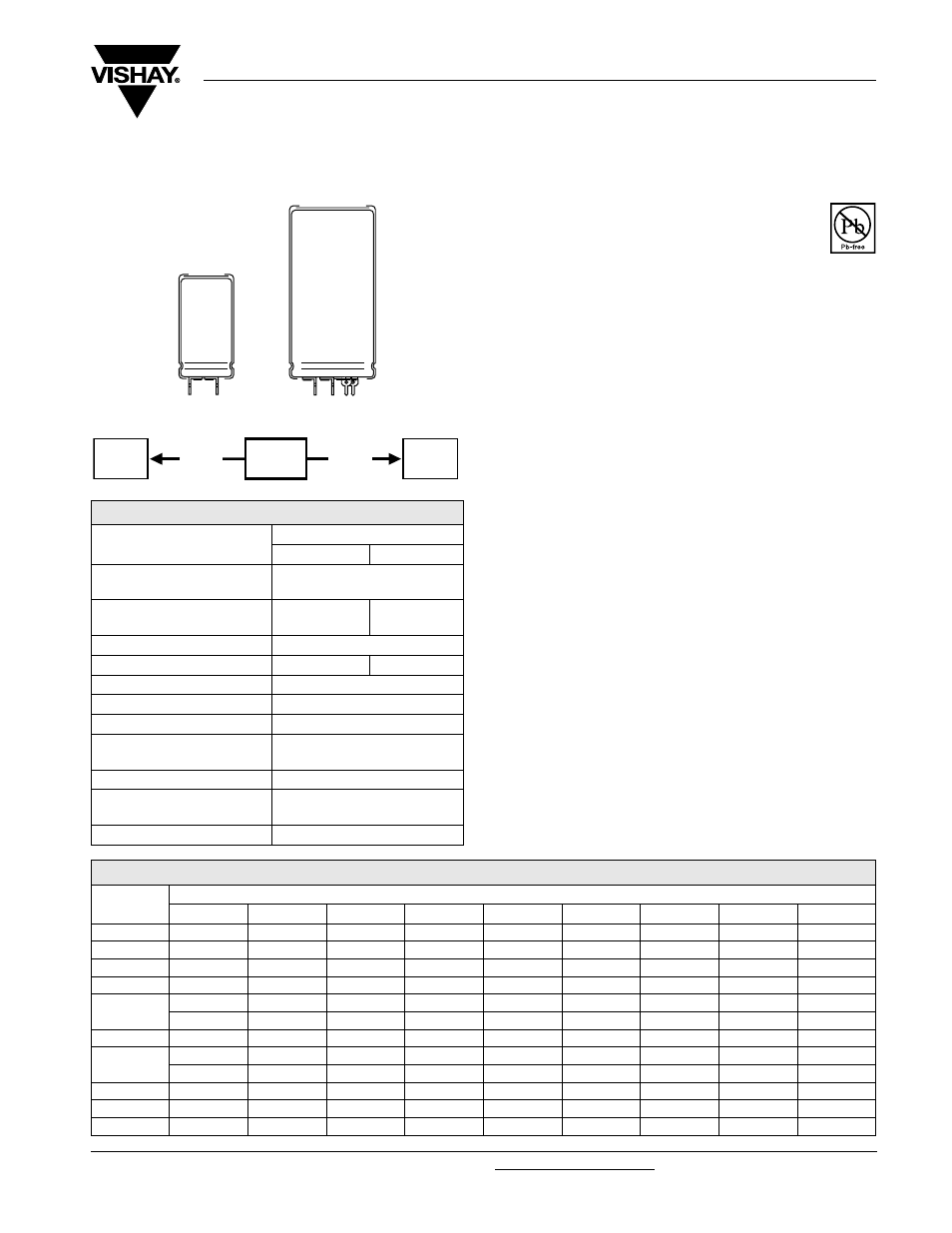

Aluminum Capacitors
Power Economic Printed Wiring
051/053 PEC-PW
Vishay BCcomponents
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types with reduced dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Provided with keyed polarity
• Long useful life: 12 000 hours at 85 °C
• High ripple current capability
• High resistance to shock and vibration
APPLICATIONS
• General purpose, industrial, medical and audio/video
systems
• Standard and switched mode power supplies
• Energy storage in pulse systems
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in µF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• Polarity of the terminals and ‘−’ sign to indicate the
negative terminal, visible from the top and/or side of the
capacitor
• Code number
• Climatic category in accordance with IEC 60068
QUICK REFERENCE DATA
DESCRIPTION
VALUE
051 053
Nominal case size
(Ø D x L in mm) 25 x 30
to 40 x 100
Rated capacitance range
(E6 series), C
R
680 µF to
150 000 µF
68 µF to
2200 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
10 V to 100 V 200 V to 400 V
Category temperature range - 40 °C to + 85 °C
Endurance test at 85 °C 5000 hours
Useful life at 85 °C 12 000 hours
Useful life at 40 °C,
1.4 x I
R
applied
200 000 hours
Shelf life at 0 V, 85 °C 500 hours
Based on sectional
specification
IEC 60384-4/EN130300
Climatic category IEC 60068 40/085/56
Fig.1 Component outlines
051/053
PEC-PW
high
ripple
current
050/052
PED-PW
162/163
PLL-PW
long life
105 ° C
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
10 16 25 40 63 100 200 385 400
68 - - - - - - - 25 x 30 25 x 30
100 - - - - - - - 25 x 40 25 x 40
150 - - - - - - 25 x 30 30 x 40 30 x 40
220 - - - - - - 25 x 40 35 x 40 35 x 40
330
- - - - - - 30 x 40 35 x 50 35 x 50
- - - - - - - 40 x 40 40 x 40
470 - - - - - - 35 x 40 40 x 50 40 x 50
680
- - - - - 25 x 30 35 x 50 40 x 70 40 x 70
- - - - - - 40 x 40 - -
1000 - - - - - 25 x 40 40 x 50 40 x 100 40 x 100
1500 - - - - - 30 x 40 40 x 70 - -
2200 - - - - 25 x 30 35 x40 40 x 100 - -
