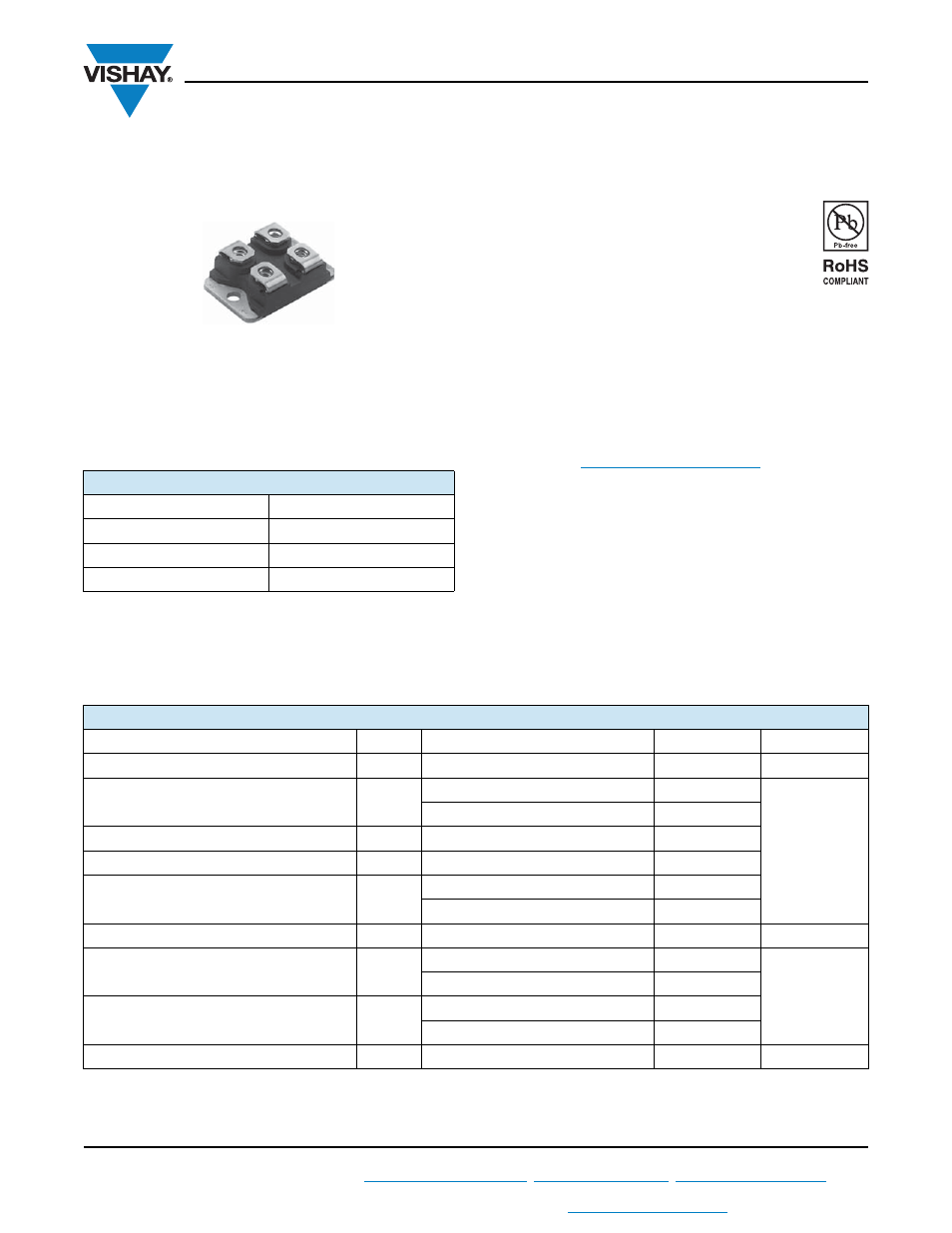

VS-GT140DA60U

www.vishay.com

Vishay Semiconductors

Revision: 20-Sep-12

1

Document Number: 94772

For technical questions within your region:

[email protected]

,

[email protected]

,

[email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Insulated Gate Bipolar Transistor

(Trench IGBT), 140 A

Note

(1)

Maximum collector current admitted is 100 A, to do not exceed
the maximum temperature of terminals

FEATURES

• Trench IGBT technology with positive

temperature coefficient

• Square RBSOA

• 3 μs short circuit capability

• FRED Pt

®

antiparallel diodes with ultrasoft reverse

recovery

• T

J

maximum = 175 °C

• Fully isolated package

• Very low internal inductance (

 5 nH typical)

• Industry standard outline

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

BENEFITS

• Designed for increased operating efficiency in power

conversion: UPS, SMPS, welding, induction heating

• Easy to assemble and parallel

• Direct mounting to heatsink

• Plug-in compatible with other SOT-227 packages

• Speed 4 kHz to 30 kHz

• Lower conduction losses and switching losses

• Low EMI, requires less snubbing

Note

(1)

Maximum collector current admitted is 100 A, to do not exceed the maximum temperature of terminals

PRODUCT SUMMARY

V

CES

600 V

I

C

DC

140 A at 90 °C

(1)

V

CE(on)

typical at 100 A, 25 °C

1.72 V

I

F

DC

71 A at 90 °C

SOT-227

ABSOLUTE MAXIMUM RATINGS

PARAMETER

SYMBOL

TEST CONDITIONS

MAX.

UNITS

Collector to emitter voltage

V

CES

600

V

Continuous collector current

I

C

(1)

T

C

= 25 °C

200

A

T

C

= 90 °C

140

Pulsed collector current

I

CM

350

Clamped inductive load current

I

LM

350

Diode continuous forward current

I

F

T

C

= 25 °C

104

T

C

= 90 °C

71

Gate-to-emitter voltage

V

GE

± 20

V

Power dissipation, IGBT

P

D

T

C

= 25 °C

652

W

T

C

= 90 °C

370

Power dissipation, diode

P

D

T

C

= 25 °C

238

T

C

= 90 °C

135

Isolation voltage

V

ISOL

Any terminal to case, t = 1 min

2500

V
