Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
TM

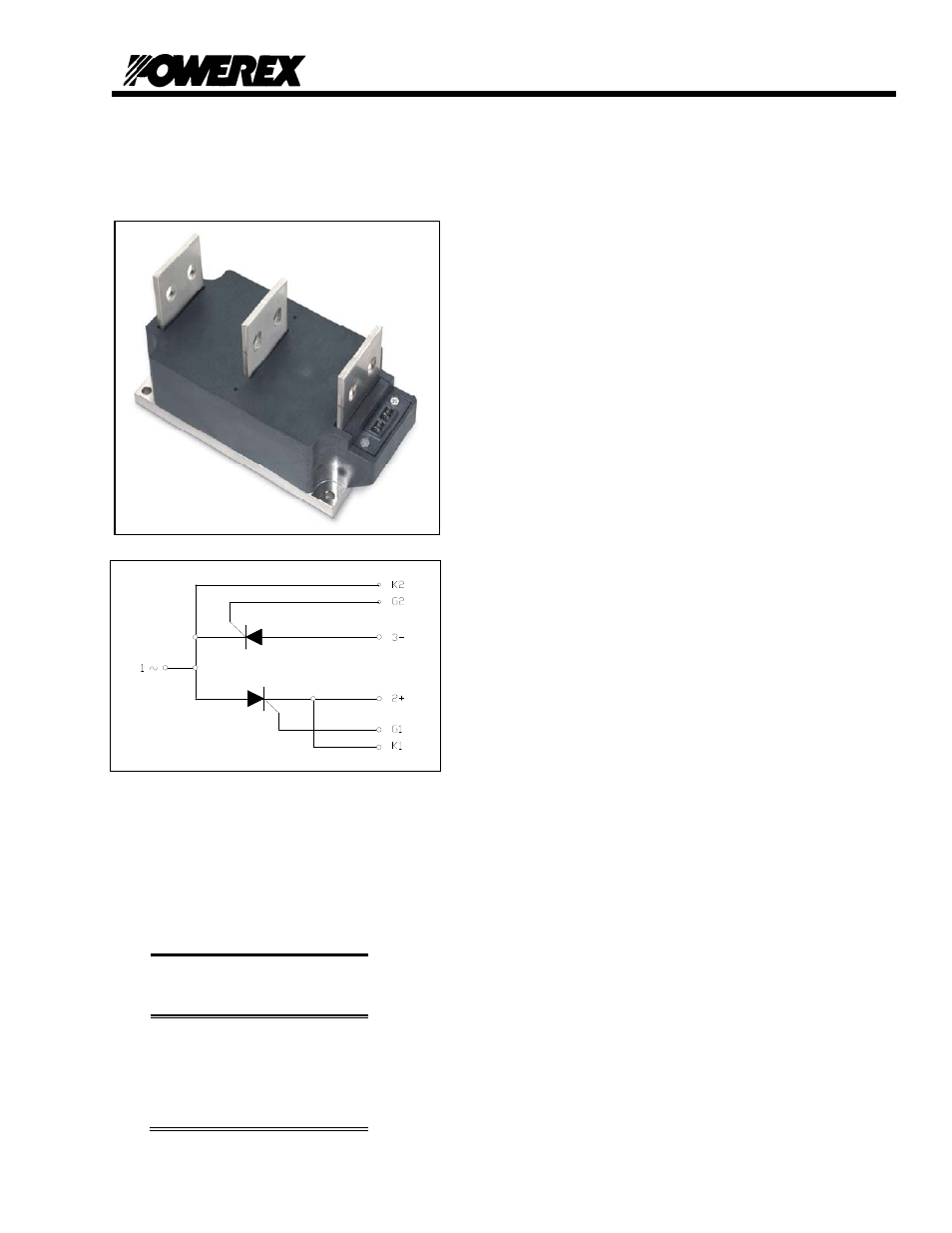

www.pwrx.com Dual SCR Isolated Module
600 Amperes / Up to 2400 Volts
Revision Date: 09/28/2009
PD43__06
Ordering Information
:
Select the complete eight-digit
module part number from the table
below.
Example: PD432406 is a 2400 Volt,
600A Average Dual SCR Isolated
POW-R-BLOK
TM
Module
Type
Voltage
Volts (x100)
Current
Amperes
(x100)
PD43 20
22
24 06
Description:
Powerex Dual SCR Modules are designed for
use in applications requiring phase control
and isolated packaging. The modules are
isolated for easy mounting with other
components on a common heatsink.
Features:
„ Electrically Isolated Heatsinking
„ Compression Bonded Elements
„ Metal Baseplate
„ Low Thermal Impedance
for Improved Current Capability
Benefits:
„ No Additional Insulation
Components Required
„ Easy Installation
„ No Clamping Components
Required
„ Reduce Engineering Time
Applications:
„ Bridge Circuits
„ AC & DC Motor Drives
„ Motor Soft Starters
„ Battery Supplies
„ Power Supplies
„ Large IGBT Circuit Front Ends
