VS-GA250SA60S
www.vishay.com
Vishay Semiconductors
Revision: 20-Jul-12 7 Document Number: 94704
For technical questions within your region: [email protected] , [email protected] , [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

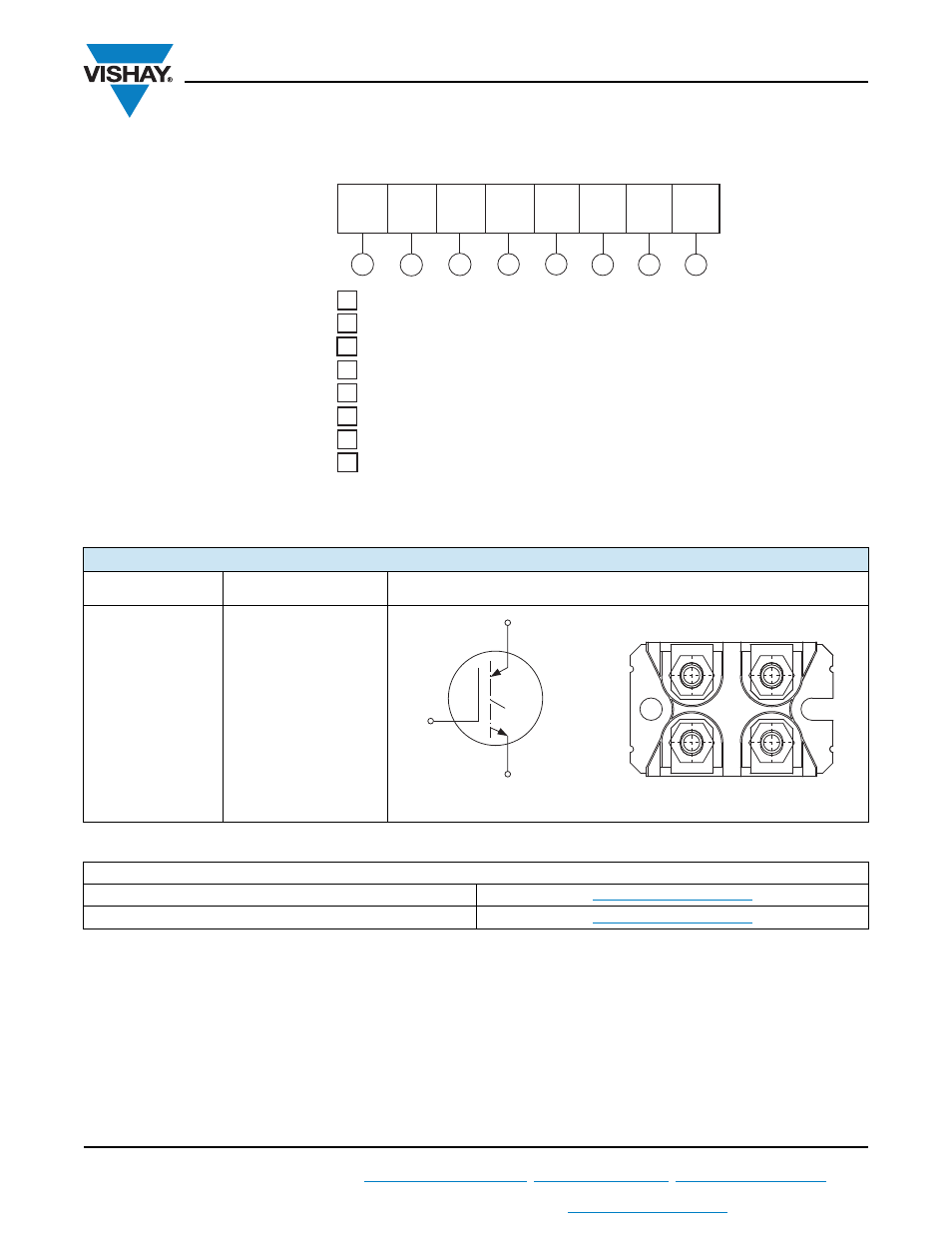

ORDERING INFORMATION TABLE
CIRCUIT CONFIGURATION
CIRCUIT
CIRCUIT
CONFIGURATION CODE
CIRCUIT DRAWING
Single switch, no
antiparallel diode
S
LINKS TO RELATED DOCUMENTS
Dimensions www.vishay.com/doc?95423
Packaging information www.vishay.com/doc?95425
1
- Insulated Gate Bipolar Transistor (IGBT)
- Vishay Semiconductors product
2
- Generation 4, IGBT silicon 3
- Current rating (250 = 250 A) 4
- Circuit configuration (S = Single switch, without antiparallel diode) 5
- Package indicator (A = SOT-227) 6
- Voltage rating (60 = 600 V)
8
7
- Speed/type (S = Standard speed)
Device code
5 1 3 2 4 6 7 8
G VS- A 250 S A 60 S
1
4 3
2
Lead Assignment
3 (C)
2 (G)
1, 4 (E)
N-channel
