VSK.71.. Series
Vishay High Power Products ADD-A-PAK Generation VII Power Modules
Standard Diodes, 80 A

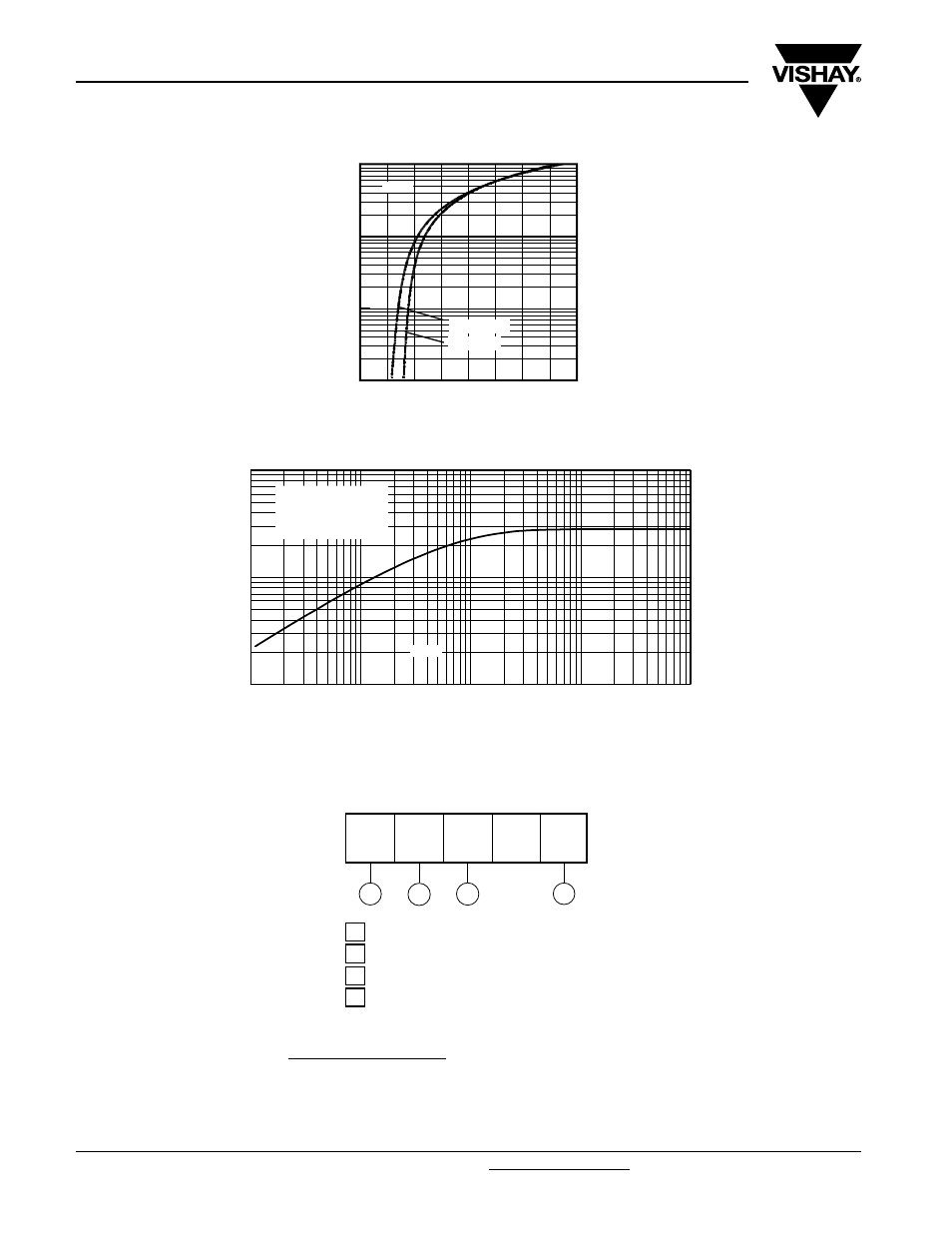

Fig. 10 - Forward Voltage Characteristics
Fig. 11 - Thermal Impedance Z
thJC
Characteristics
ORDERING INFORMATION TABLE
Note
• To order the optional hardware go to www.vishay.com/doc?95172
Instantaneous forward voltage (V)
Instantaneous forward current (A)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
1
10
100
1000
Tj = 25°C
Tj = 150°C
Per leg
Square wave pulse duration (s)
Transient thermal impedance Z
thJC
(°C/W)
0.001 0.01 0.1 1 10
0.01
0.1
1
Steady state value
RthJC = 0.28 °C/W
(DC operation)
Per leg
1 - Module type
2 - Circuit configuration (see end of datasheet)
3 - Current code (80 A)
4 - Voltage code (see Voltage Ratings table)
Device code
4 1 3 2
VSK D 71 / 16
