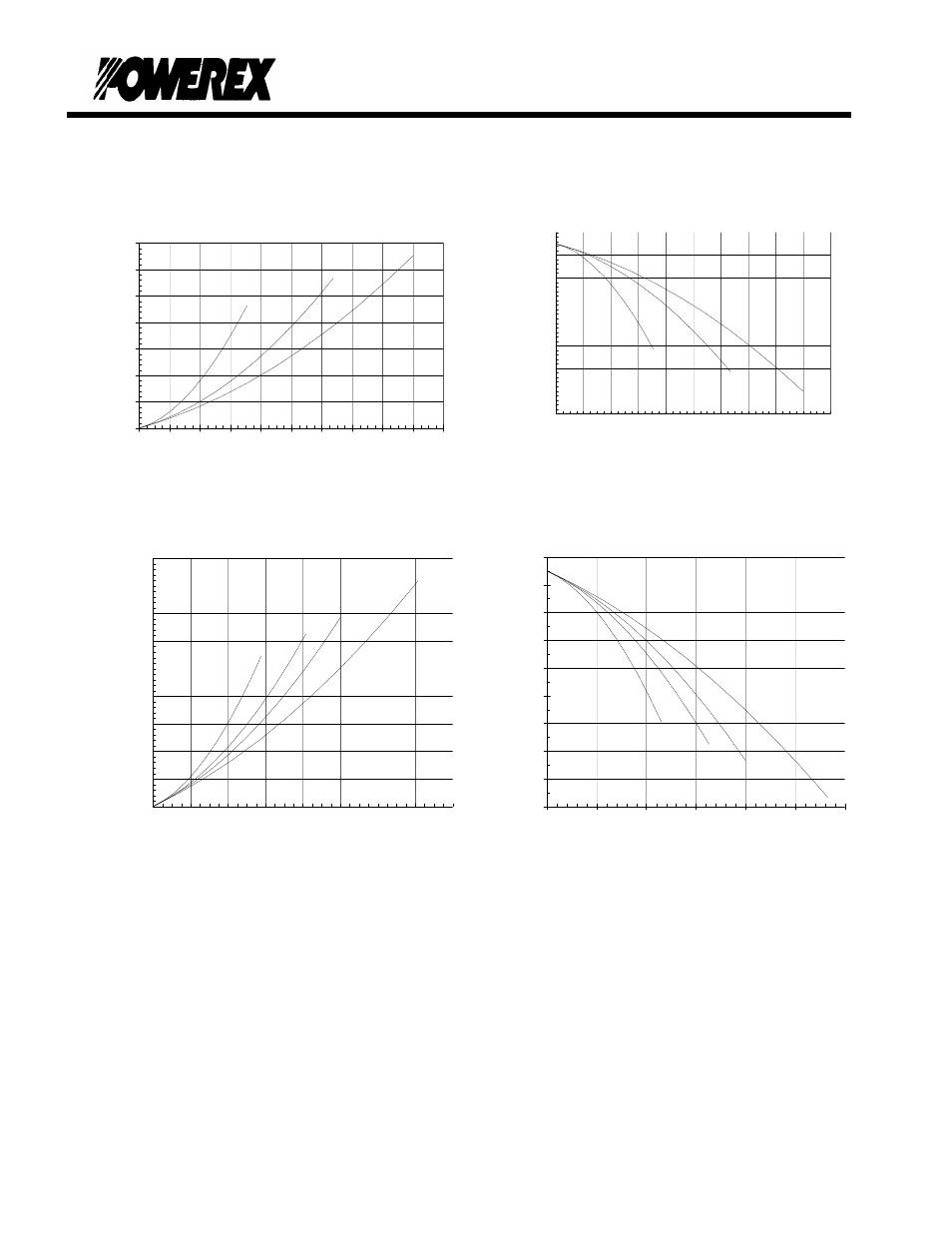

Maximum On-State Power Dissipation
30°
90°
180°
0
500
1000
1500
2000
2500
3000
3500
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Average On-State Current - If(av) - Amperes
Maximum Power Dissipation - Watts
(Sinusoidal Waveform)
Maximum Allowable Case Temperature
180°
90°
30°
100
110
120
130
140
150
160
170
180
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Average On-State Current - If(av) - Amperes
Max. Case Temperature - Tcase - °C
(Sinusoidal Waveform)
Maximum On-State Power Dissipation
120°
60°
180°
360°
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 400 800 1200 1600 2000 2400 2800 3200
Average On-State Current - If(av) - Amperes
Maximum Power Dissipation - Watts
(Rectangular Waveform)
Maximum Allowable Case Temperature
360°
180°
120°
60°
90
100
110
120
130
140
150
160
170
180
0 500 1000 1500 2000 2500 3000
Average On-State Current If(av) Amperes
Max. Case Temperature Tcase °C
(Rectangular Waveform)
R9G0
1800A
