Fast recovery single diode module – C&H Technology CS641230 User Manual
Page 2
Dimension
Inches
Millimeters
A
3.630±0.01
92.2±0.25
B
3.150±0.008
80±0.2
C
2.657±0.01
67.5±0.25
D
1.378±0.012-0.000 35±0.3-0.0
E
1.220
31
F
1.102
28
G
1.024
26
H
0.591
15
J
0.571
14.5
K
0.213±0.004 Dia. Dia. 5.4±0.1
L
0.177
4.5
M
0.118
3
N
M6 Metric
M6
Description:
Powerex Fast Recovery Single
Diode Modules are designed for
use in applications requiring fast
switching. The modules are isolat-
ed for easy mounting with other
components on common
heatsinks.
Features:
Ⅺ
Isolated Mounting
Ⅺ
Planar Chips
Applications:
Ⅺ
Inverters
Ⅺ
Choppers
Ⅺ
Switching Power Supplies
Ⅺ
Free Wheeling
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CS641230 is a
1200 Volt, 300 Ampere Fast
Recovery Single Diode Module.
Voltage
Current Rating
Type
Volts (x100)
Amperes (x10)
CS64
12
30
D-21
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Fast Recovery Single
Diode Module
300 Amperes/1200 Volts
CS641230

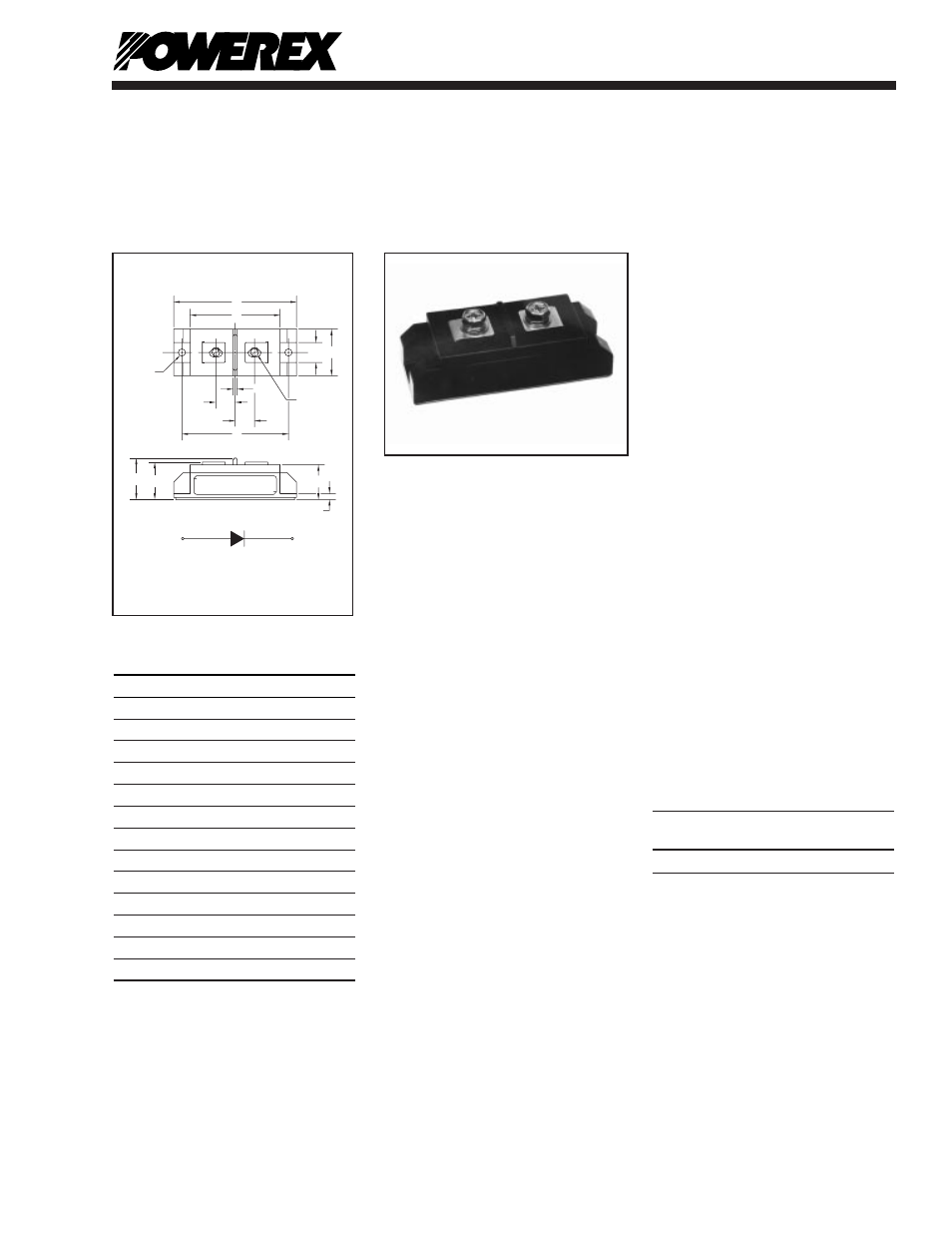

Outline Drawing
CS641230
Fast Recovery
Single Diode Module
300 Amperes/1200 Volts
A
K
A
K
E
F
G
H
L
D
J
J
M
B
A
C
N - M6 THD
(2 TYP.)
K - DIA.
(2 TYP.)
