6 Set up with the display and adjustment module
VEGAFLEX 83 • Foundation Fieldbus
44227-EN-130910

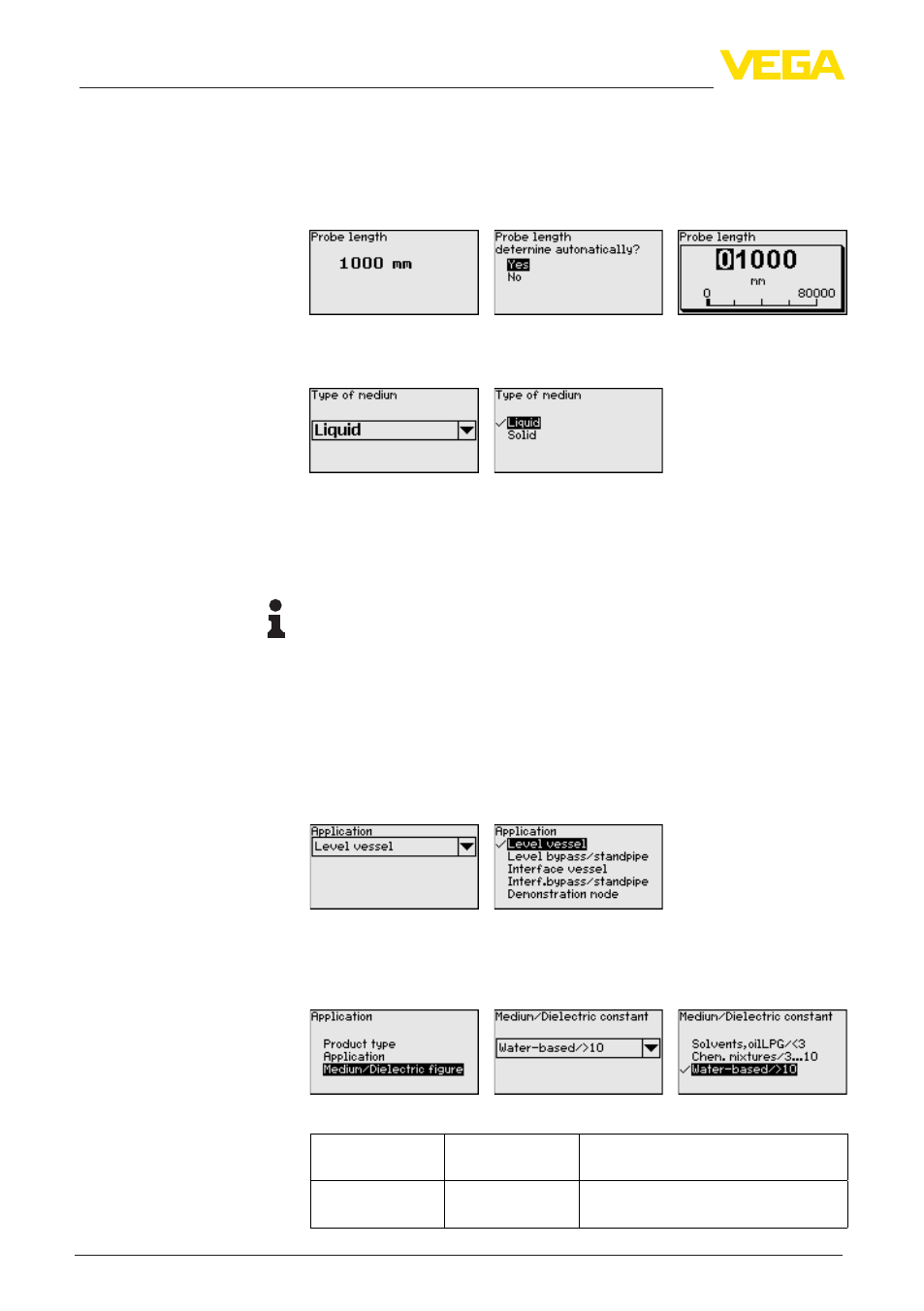

In this menu item you can enter the probe length or have the length
determined automatically by the sensor system.
When choosing "Yes", then the probe length will be determined
automatically. When choosing "No", you can enter the probe length
manually.
In this menu item you can select which type of medium you want to
measure. You can choose between liquid or bulk solid.
In this menu item, you can select the application. You can choose
between level measurement and interface measurement. You can
also choose between measurement in a vessel or in a bypass or
standpipe.
Note:
The selection of the application has a considerable influence on all
other menu items. Keep in mind that as you continue with the param-
eter adjustment, individual menu items are only optionally available.
You have the option of choosing the demonstration mode. This mode
is only suitable for test and demonstration purposes. In this mode, the
sensor ignores the parameters of the application and reacts immedi-
ately to each change.
You have to enter the tube inner diameter when measuring in a
bypass or standpipe.
In this menu item, you can define the type of medium (product).
This menu item is only available if you have selected level measure-
ment under the menu item "Application".
You can choose between the following medium types:
Dielectric con-
stant
Type of medium Examples
> 10 Water-based liq-
uids
Acids, alcalis, water
Setup - Probe length
Setup - Type of medium
Setup - Application
Setup - Application - Me-
dium, dielectric constant
