6 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
45026-EN-131107
In the delivery status, the VEGABAR 81 is set to the ordered national
language.
In this menu item you can define the indication of the measured
values on the display.
The default setting for the display value is "Lin. percent".
The display and adjustment module has a backlight for the display.
In this menu item you switch on the lighting. You can find the required
operating voltage in chapter "Technical data".
The lighting is switched off in delivery status.
In this menu item, the device status is displayed.
The respective min. and max. measured value is saved in the sensor.
The two values are displayed in the menu item "Peak values, pres-
sure".
In another window you can carry out a reset of the peak values
separately.
The respective min. and max. measured values of the measuring cell
and electronics temperature are stored in the sensor. In the menu
item "Peak value, temperature", both values are displayed.
In another window you can carry out a reset of the two peak values
separately.
In this menu item you can simulate measured values via the current
output. This allows the signal path to be tested, e.g. through down-
stream indicating instruments or the input card of the control system.

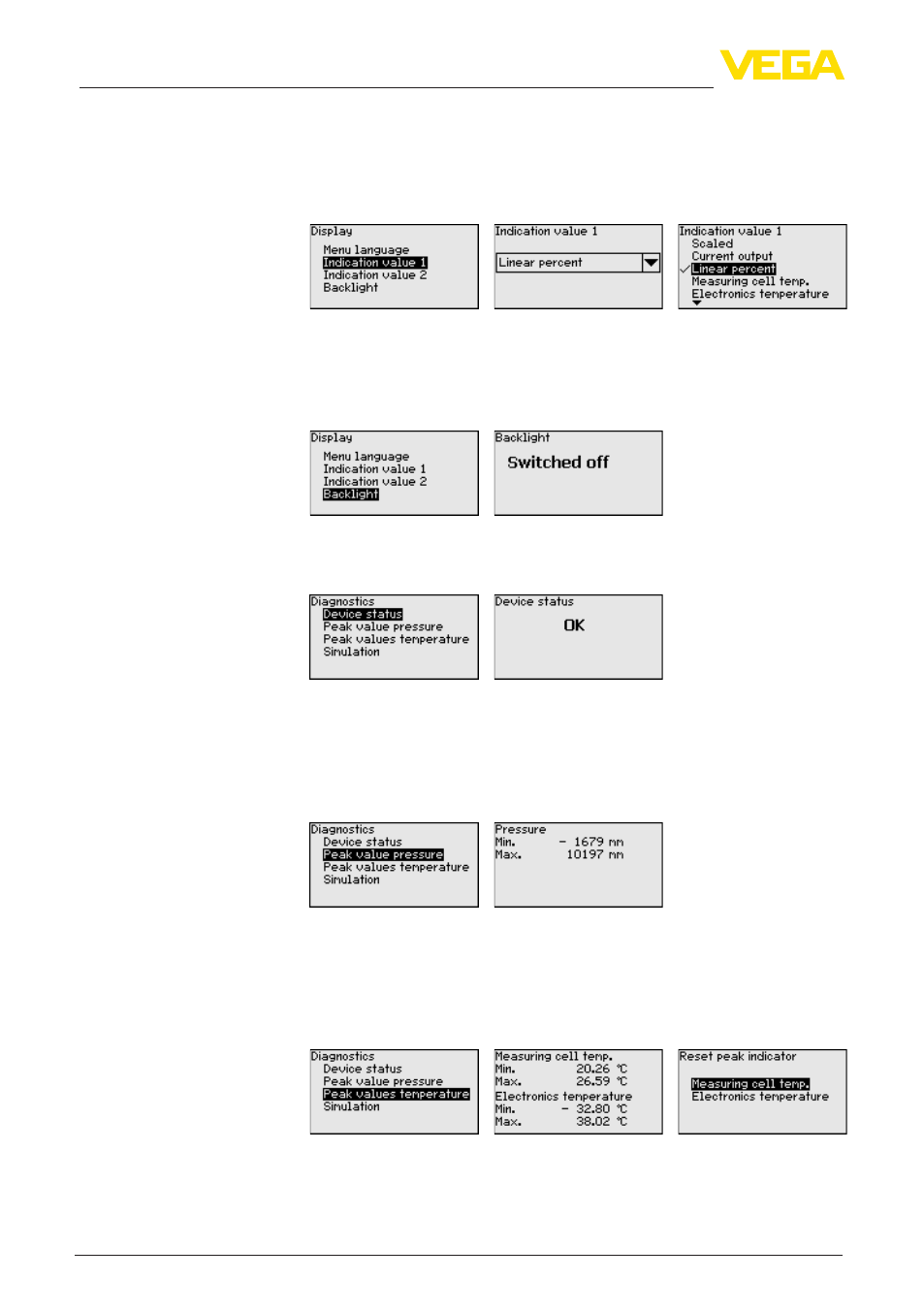

Display - Displayed value
1 and 2
Display - Backlight
Diagnostics - Device
status
Diagnostics - Peak val-
ues, pressure
Diagnostics - Peak val-
ues, temperature
Diagnosis - Simulation
