2 Mounting
Centering • for VEGAFLEX series 80
44967-EN-131119
Note:
The spacer may not be moved in the axial direction. The insulation of
the cable or rod could be damaged. You can remove the spacer later-
ally and attach it again at another position.
2.4 Spacers - Metal (M1, M2, M3, M4)
2
2
1

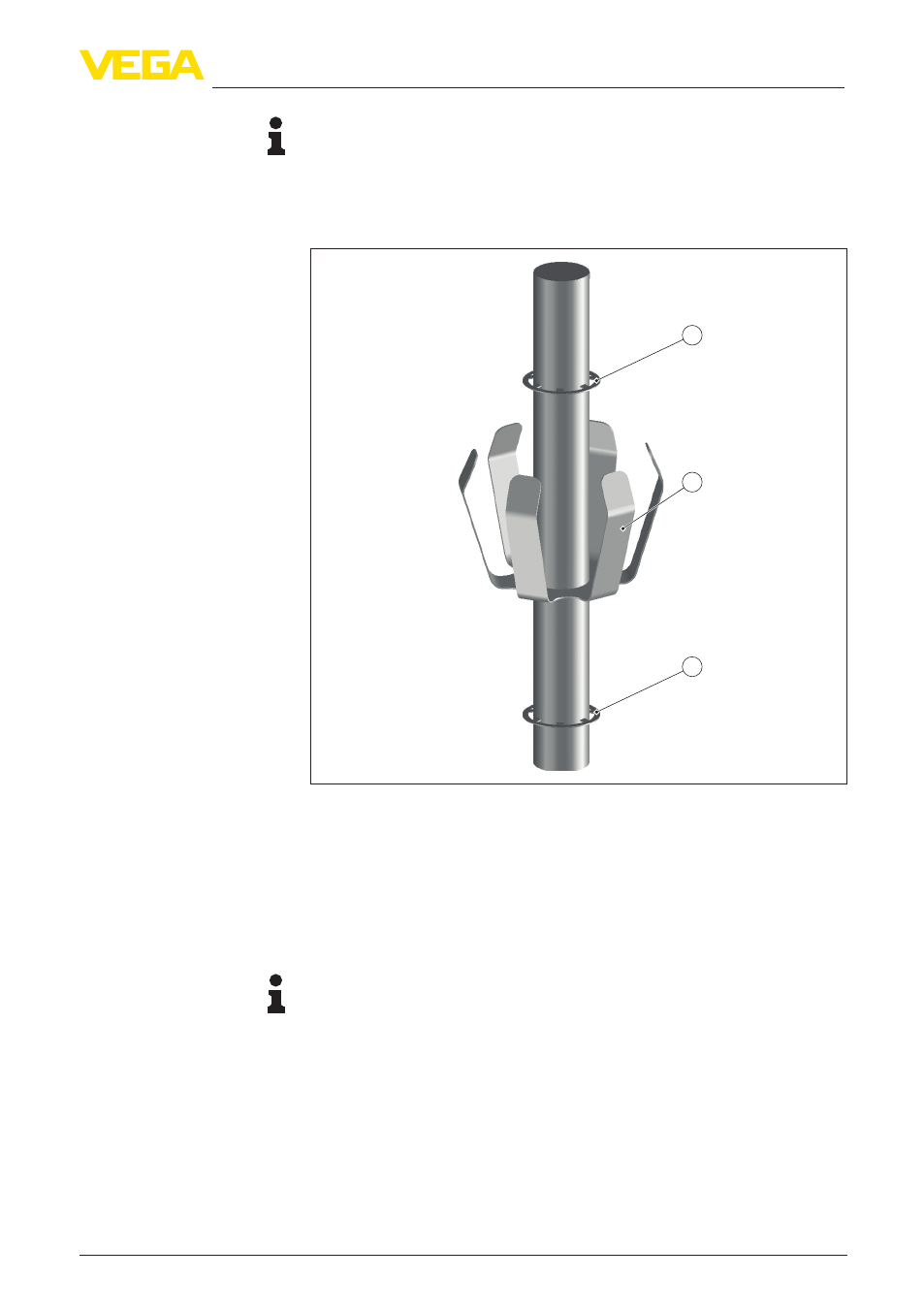

Fig. 10: Mounting the spacer
1 Spacer (M1, M2, M3, M4)
M1, M3 - outer ø 49.2 up to 56.3 mm (1.9 up to 2.2 in)
M2, M4 - outer ø 66.6 up to 84.9 mm (2.6 up to 3.3 in)
2 Retaining ring
1. The spacer should be mounted at the lower end of the probe rod.
2. Slide the retaining ring (2) onto the rod of the probe.
Tip:
Wear gloves when sliding the parts onto the rod or use a piece of thin
tubing
If you have shortened the probe, it is helpful to slightly chamfer the
end of the rod.
3. Slide the spacer (1) with open elastic arms upward and an ad-
ditional retaining ring (2) onto the rod of the probe.
The retaining rings fix the spacer in the requested position.
