60
11 Supplement
VEGABAR 83 • 4 … 20 mA
45033-EN-131010
Ʋ Displayed value 2 Pressure in bar/mbar
Output variable - Second current output
For details on the operating voltage see chapter "Voltage supply"
Output signal
4 … 20 mA (passive)
Range of the output signal 3.8 … 20.5 mA (default setting)
Signal resolution 0.3 µA
Failure signal current output (adjustable) Last valid measured value, ≥ 21 mA, ≤ 3.6 mA
Max. output current
21.5 mA
Starting current ≤ 10 mA for 5 ms after switching on, ≤ 3.6 mA
Load Load resistor, see chapter "Voltage supply"
Damping (63 % of the input variable),
adjustable
0 … 999 s
Dynamic behaviour output
Run-up time approx.
10 s
Dynamic characteristics, depending on medium, temperature and, if applicable, chemical seal
90 %
100 %
10 %
t
t
T A
t
t
S
2 1

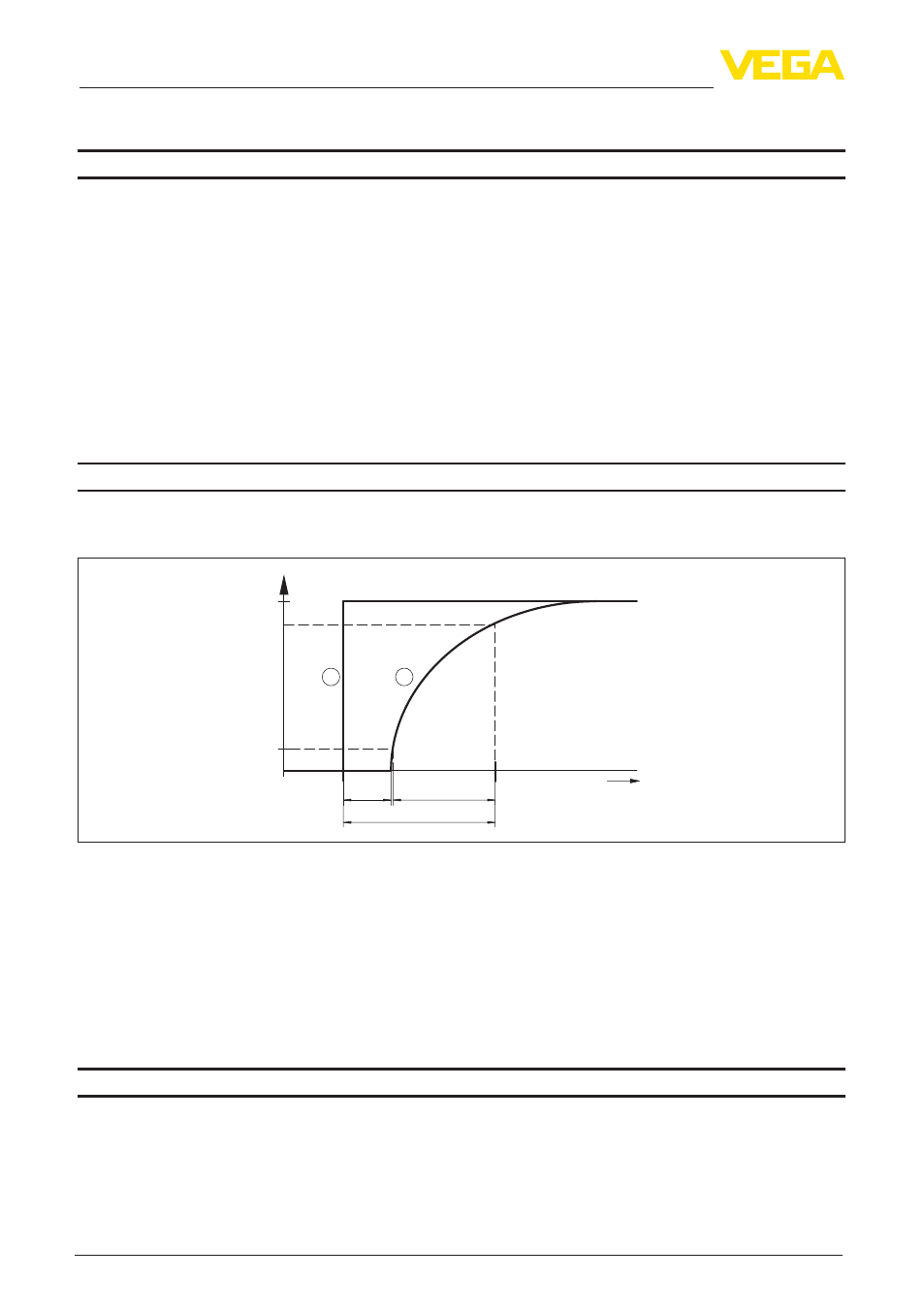

Fig. 30: Behaviour in case of sudden change of the process variable. t
T
: dead time; t
A
: rise time; t
S
: jump response
time
1 Process variable
2 Output signal
Dead time > 45 ms
Rise time > 35 ms (10 … 90 %)
Step response time > 80 ms (ti: 0 s, 10 … 90 %)
Damping (63 % of the input variable) 0 … 999 s, adjustable
Reference conditions and actuating variables (according to DIN EN 60770-1)
Reference conditions according to DIN EN 61298-1
Ʋ Temperature +18 … +30 °C (+64 … +86 °F)
Ʋ Relative humidity 45 … 75 %
Ʋ Air pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psi)
