VEGA VEGAPULS 61 (≥ 2.0.0 - ≥ 4.0.0) 4 … 20 mA_HART - two-wire Approval according to LPR radio standard - Manual (Page 71)

0,5 m (1.6 ft)
10 mm (0.394 in)
- 10 mm (- 0.394 in)
2 mm (0.079 in)
- 2 mm (- 0.079 in)
0
1 2 3

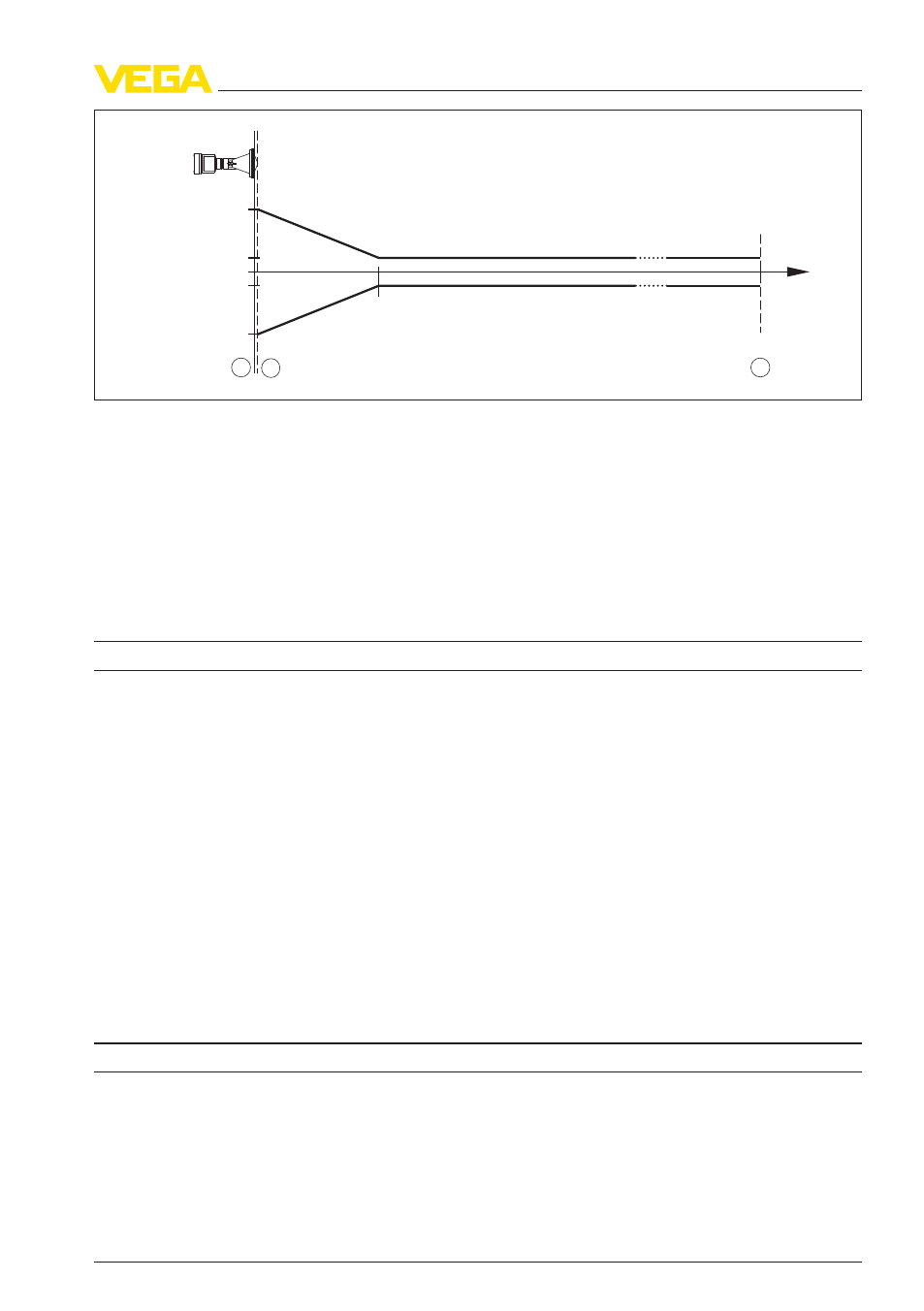

Fig. 52: Deviation under reference conditions - plastic horn antenna
1 Reference plane
2 Antenna edge
3 Recommended measuring range
Reproducibility ≤ ± 1 mm
Deviation with bulk solids The values depend to a great extent on the
application. Binding specifications are thus not
possible.
Variables influencing measurement accuracy
Specifications apply to the HART signal and the current output
Temperature drift - Digital output ± 3 mm/10 K relating to the max. measuring range
or max. 10 mm
Additional deviation through strong, high
frequency electromagnetic fields acc. to EN
61326 <± 50 mm
Specifications apply also to the current output
Temperature drift - Current output ± 0.03 %/10 K relating to the 16 mA span max.
± 0.3 %
Deviation on the current output by analogue/
digital conversion <± 15 µA
Deviation on the current output by strong,
high frequency electromagnetic fields within
EN
61326
<± 150 µA
Characteristics and performance data
Frequency K-band (26 GHz technology)
Measuring cycle time 450 ms
