7 Setup
PLICSMOBILE T61 • External GSM/GPRS radio unit
37700-EN-130228
Note:
The electronics must be voltage-free when inserting the SIM card. To
ensure this, the entire voltage supply must be switched off. This in-
cludes disconnecting a battery and USB cable that might be installed.
Take ESD protective measures when handling the SIM card. Electro-
static discharges can damage the SIM card or the PLICSMOBILE.

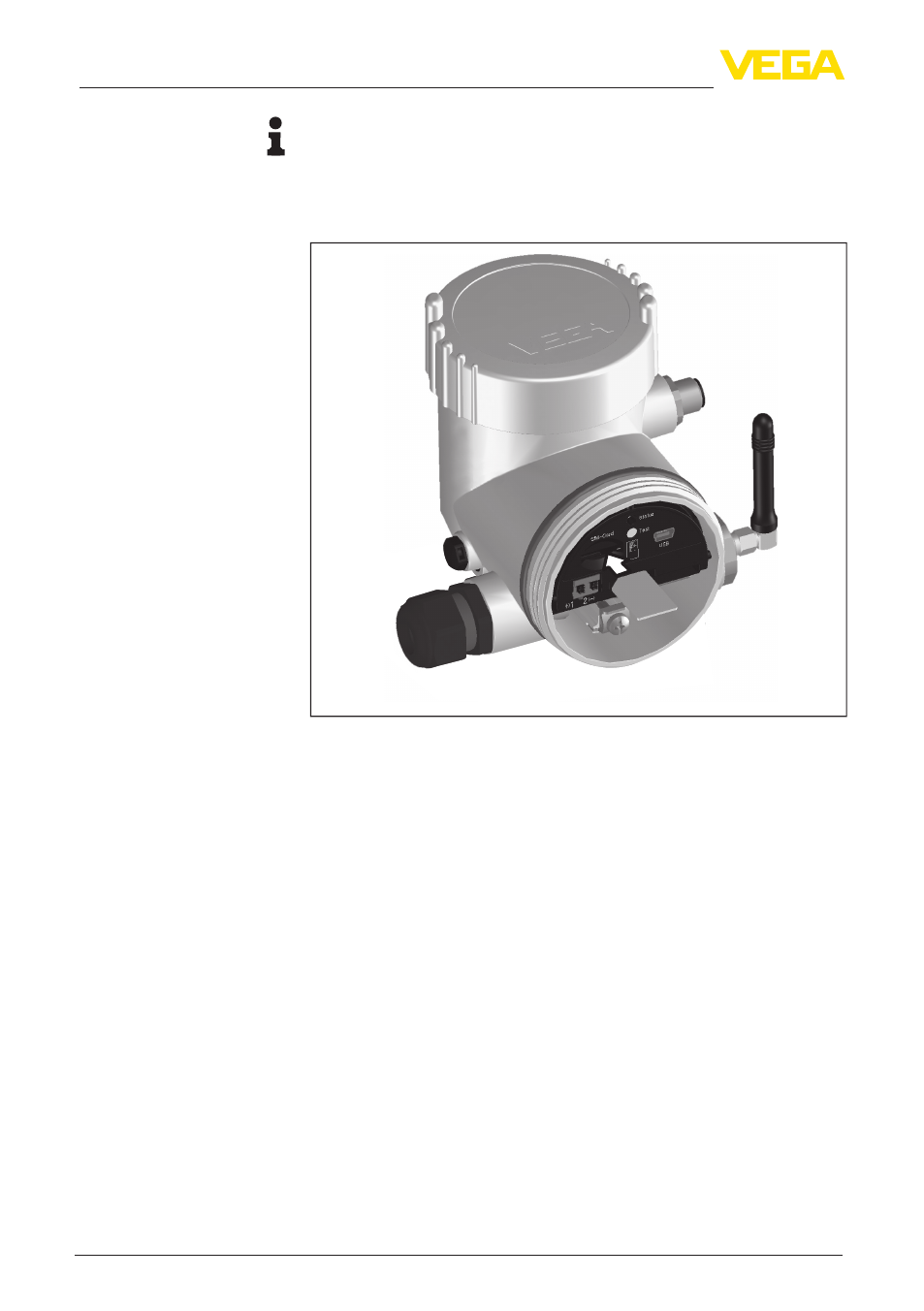

Fig. 12: Insert SIM card
To avoid misuse, the SIM card is generally locked by a PIN. To ensure
that PLICSMOBILE can contact these locked SIM cards, first of all
the PIN must be entered. For this purpose the assistant "Activate SIM
card" is available in the DTM. Enter here the correct PIN for the card.
The assistant also offers the option of changing the PIN.
Then check if the card is logged into the network and if sufficient
network coverage (signal strength) exists. This can be checked in the
DTM menu "Network information" under "Setup - Diagnosis". You can
also see the general device status via the status indication.
The following operating conditions are signalled via the LED status
indication:
•
LED does not light: no operating voltage or power saving mode
active
•
Constant flashing: Instrument is not logged into the GSM net-
work
•
Unsteady flashing (long OFF/short ON): instrument is booked
into the GSM network
•
Continuous light: Transmitting or dia-up connection (via CSD)
active
Activate SIM card
Status indication
