VEGA Replacement housing for plics instruments - Manual (Page 8)

l
PLICSGEH2K...5 (5 = approval AX, AK acc. to VEGA
product list)
l
PLICSGEH2K...6 (6 = approvals GX acc. to VEGA product
list).
The double chamber housing PLICSGEH2K64 ... is only
suitale for VEGASON 64, 65 and 66. It is available with the
following approvals:
l
PLICSGEH2K64...X (X = without approvals)
l
PLICSGEH2K64...5 (5 = approval AX, AK acc. to VEGA
product list)
l
PLICSGEH2K64...6 (6 = approval GX acc. to VEGA
product list)
The following tools are required for dismounting the existing
housing and mounting the replacement housing:
l
magnetic Phillips head size 1
l
pliers for locking ring (version axle)
l
screwdriver 4 mm (only with stainless steel and Alu double
chamber housing)
4.3 Dismounting steps existing housing
First of all the electronics module is dismounted and the
existing housing removed.
The electronics module is located in the electronics compart-
ment. The below illustrations show the respective position of
the electronics compartment in a single or double chamber
housing.
1

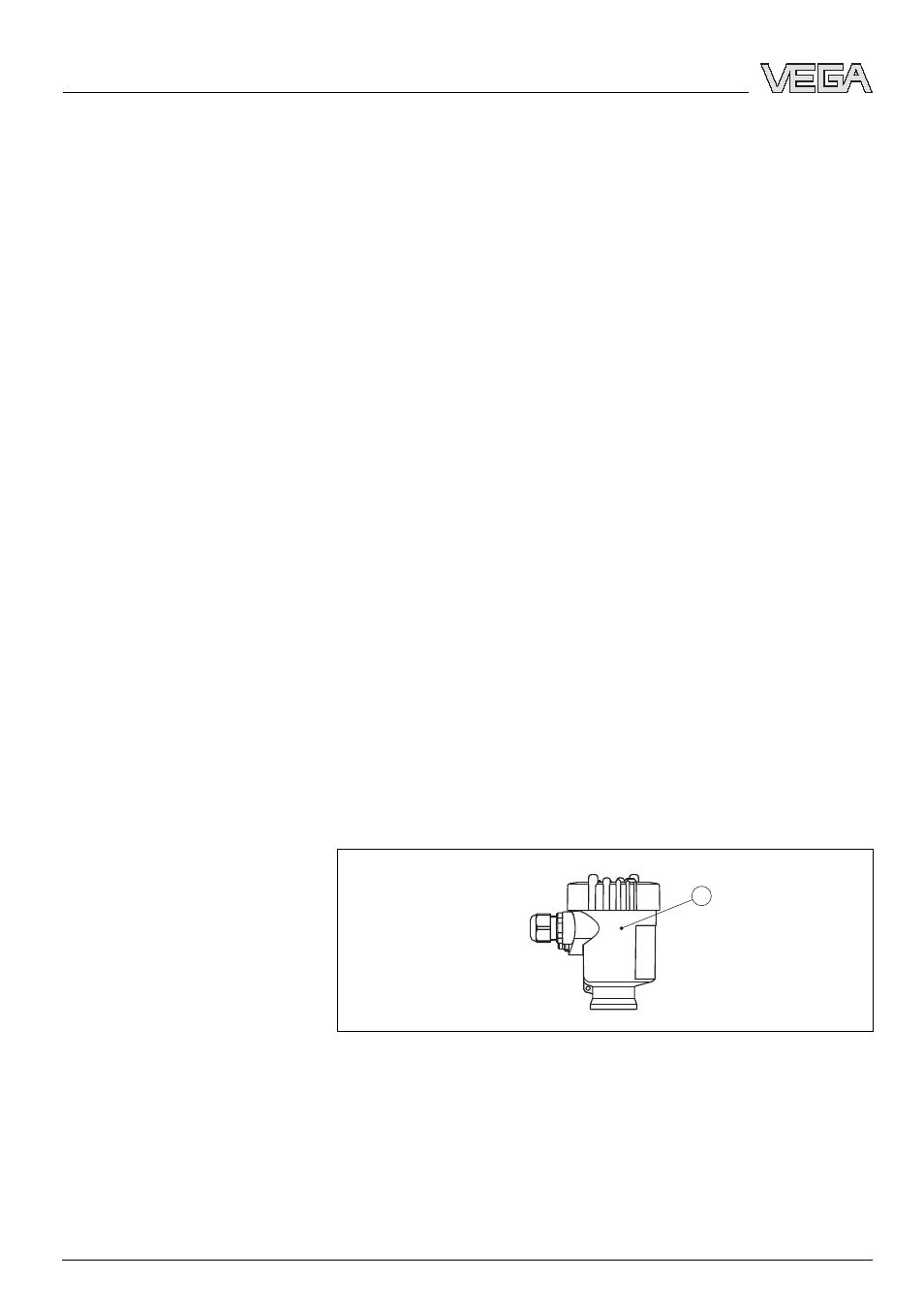

Fig. 2: Single chamber housing
1 Position of the electronics compartment
Double chamber housing
VEGASON 64, 65, 66
Tools
Dismounting the electronics
8 Replacement housing for plics instruments
Mounting
31150
-EN
-050802
