VEGA Replacement housing for plics instruments - Manual (Page 10)

2
1
3

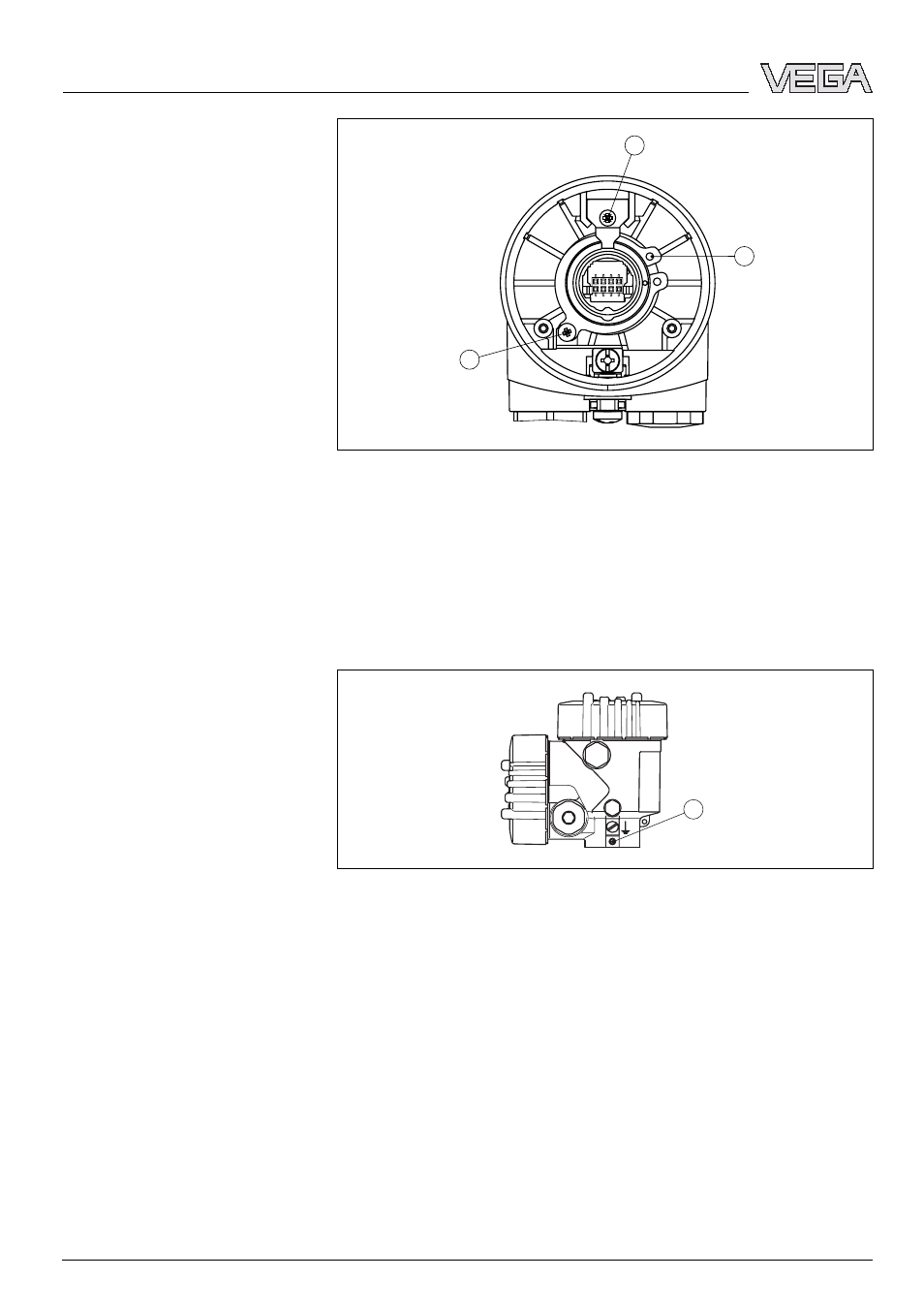

Fig. 5: Position of the screws and locking ring on the example of the plastic
housing
1 Screw check angle
2 Screw locking ring
3 Locking ring
2 Open the locking ring with the pliers and remove it
3 With Aluminium double chamber and stainless steel
housing loosen the screw on the socket
1
Fig. 6: Double chamber housing
1 Position of the screw
4 Remove the housing
4.4 Mounting steps new housing
1 Place the new housing back on.
2 With Aluminium double chamber or stainless steel housing
tighten the locking screw on the socket with a screwdriver
3 Tighten the screws of the check angle and the locking ring
with a screwdriver size 1
4 Insert the locking ring with the pliers
10 Replacement housing for plics instruments
Mounting
31150
-EN
-050802
