3 Product description
VEGASON 63 • Foundation Fieldbus
28792-EN-130417
3 Product description
3.1 Configuration
The scope of delivery encompasses:
•
VEGASON 63 ultrasonic sensor
•
Optionally mounting strap or compression flange
•
Documentation
– this operating instructions manual
– Operating instructions manual 27835 "Display and adjustment
module PLICSCOM" (optional)
– Supplementary instructions manual 31708 "Heating for display
and adjustment module" (optional)
– Supplementary instructions manual "Plug connector" (optional)
– Ex-specific "Safety instructions" (with Ex versions)
– if necessary, further certificates
The VEGASON 63 consists of the components:
•
Process fitting with transducer
•
Housing with electronics, optionally available with plug connector
•
Housing cover, optionally available with display and adjustment
module PLICSCOM
The components are available in different versions.
1
2
3

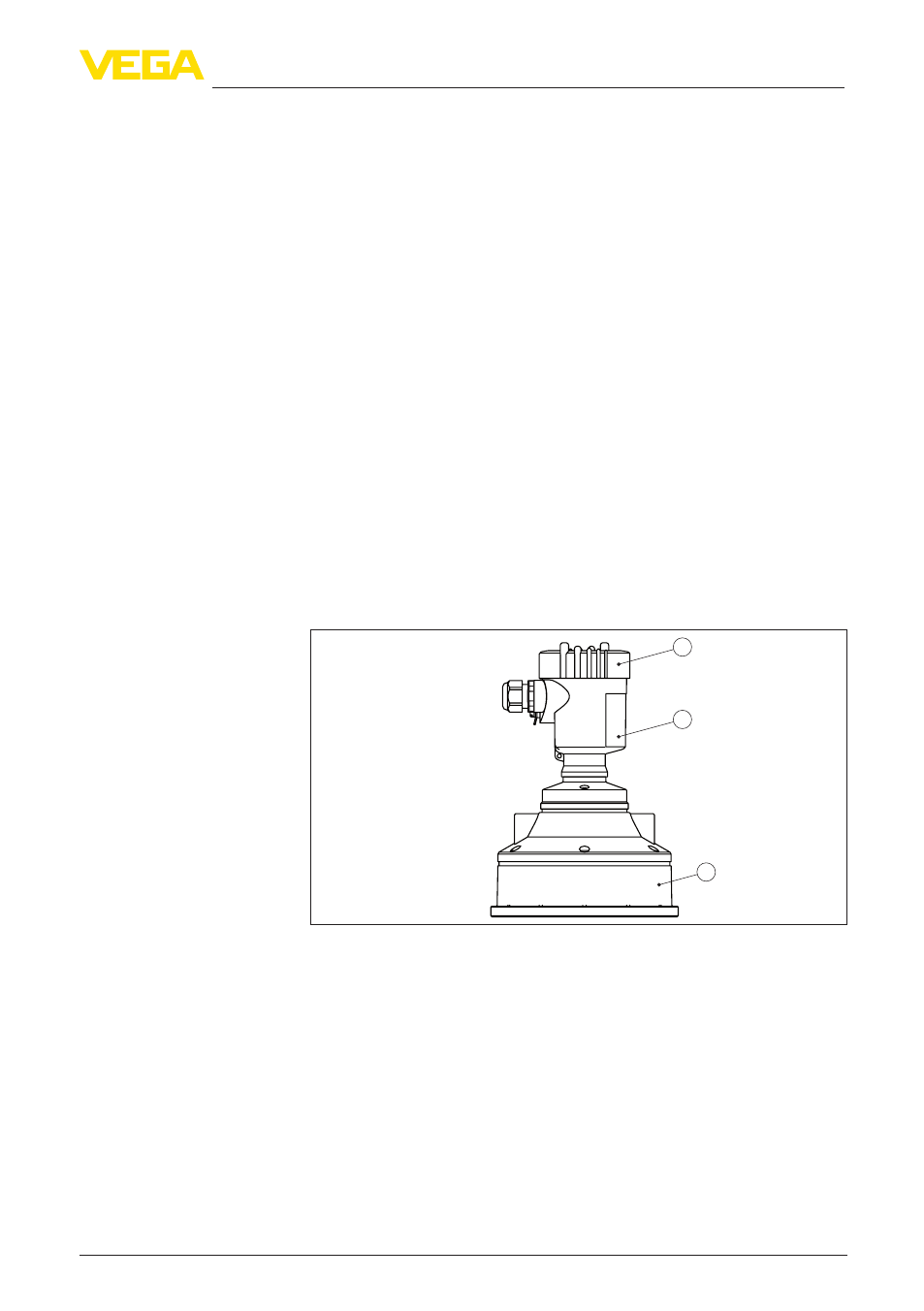

Fig. 1: VEGASON 63 with plastic housing
1 Housing cover with integrated PLICSCOM (optional)
2 Housing with electronics
3 Process fitting with transducer
3.2 Principle of operation
VEGASON 63 is an ultrasonic sensor for continuous level measure-
ment. It is suitable for liquids and solids in practically all industries.
The transducer of the ultrasonic sensor transmits short ultrasonic
pulses to the measured product. These pulses are reflected by
product surface and received back by the transducer as echoes.
The running time of the ultrasonic pulses from emission to reception
