3 Product description
3.1 Configuration
T
he scope of delivery encompasses:
l VEGABAR 64 pressure transmitter
l D ocumentation
-
this operating instructions manual
-
T est certificate for pressure transmitters
-
S afety Manual 31637 "VEGABAR series 50 and 60 -
4 … 20 mA/HART" (optional)
-
O perating instructions manual 27835 "Indicating and adjust-
ment module PLICSCOM" (optional)
-
S upplementary instructions manual 31708 "Heating for in-
dicating and adjustment module" (optional)
-
S upplementary instructions manual "Plug connector for con-
tinuously measuring sensors" (optional)
-
E x-specific "Safety instructions" (with Ex-versions)
-
if necessary, further certificates
VEGABAR 64 consists of the following components:
l P rocess fitting with measuring cell
l H ousing with electronics, optionally available with plug connector
l H ousing cover, optionally available with indicating and adjustment
module PLICSCOM
T he components are available in different versions.
1
2
3

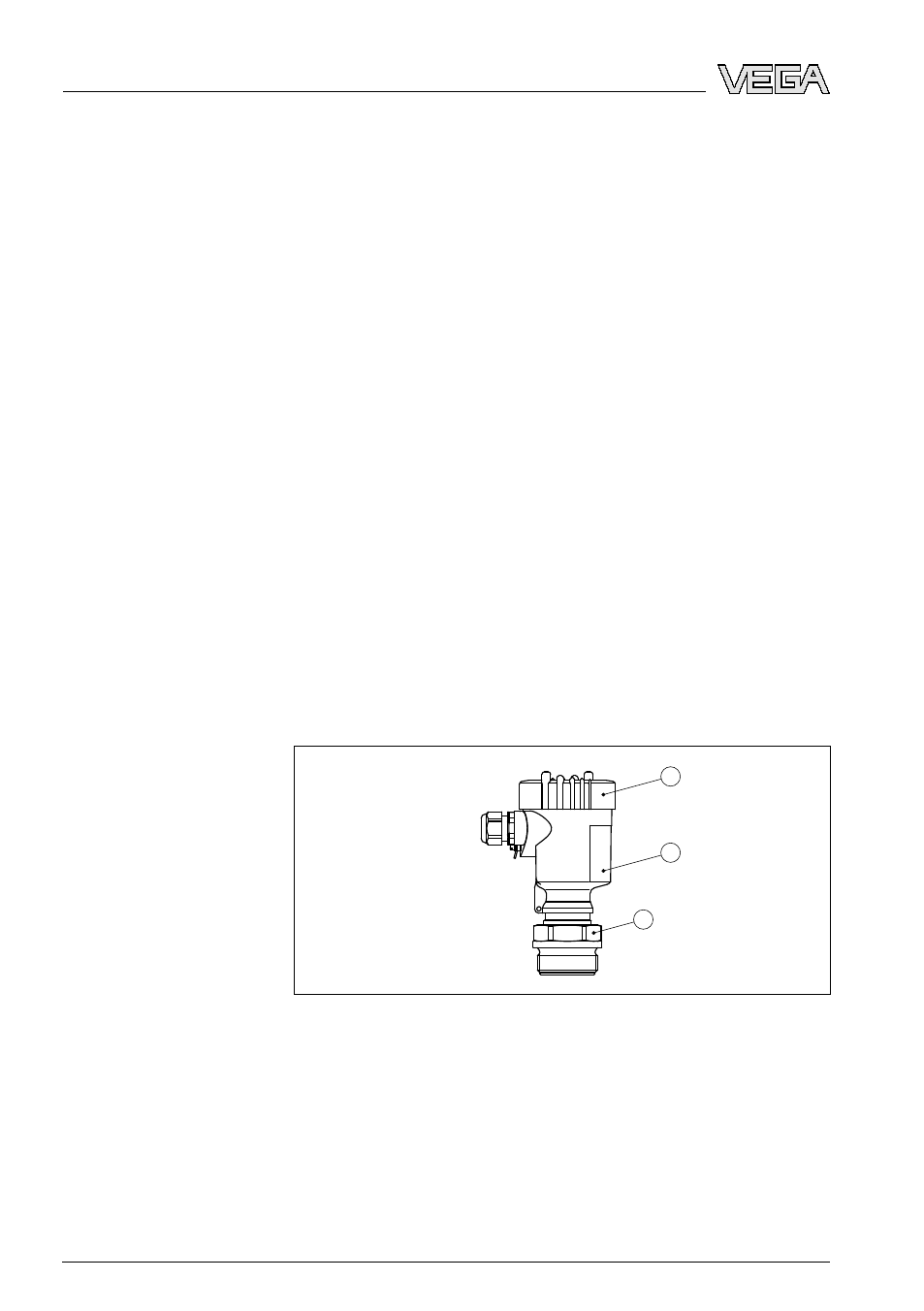

Fig. 1: Example of a VEGABAR 64 with process fitting G1½ A and plastic
housing
1
Housing cover with integrated PLICSCOM (optional)
2 Housing with electronics
3 Process fitting with measuring cell
T he type label contains the most important data for identification and
use of the instrument:
l S ensor type
l A rticle and serial number device
Scope of delivery
Components
Type label
