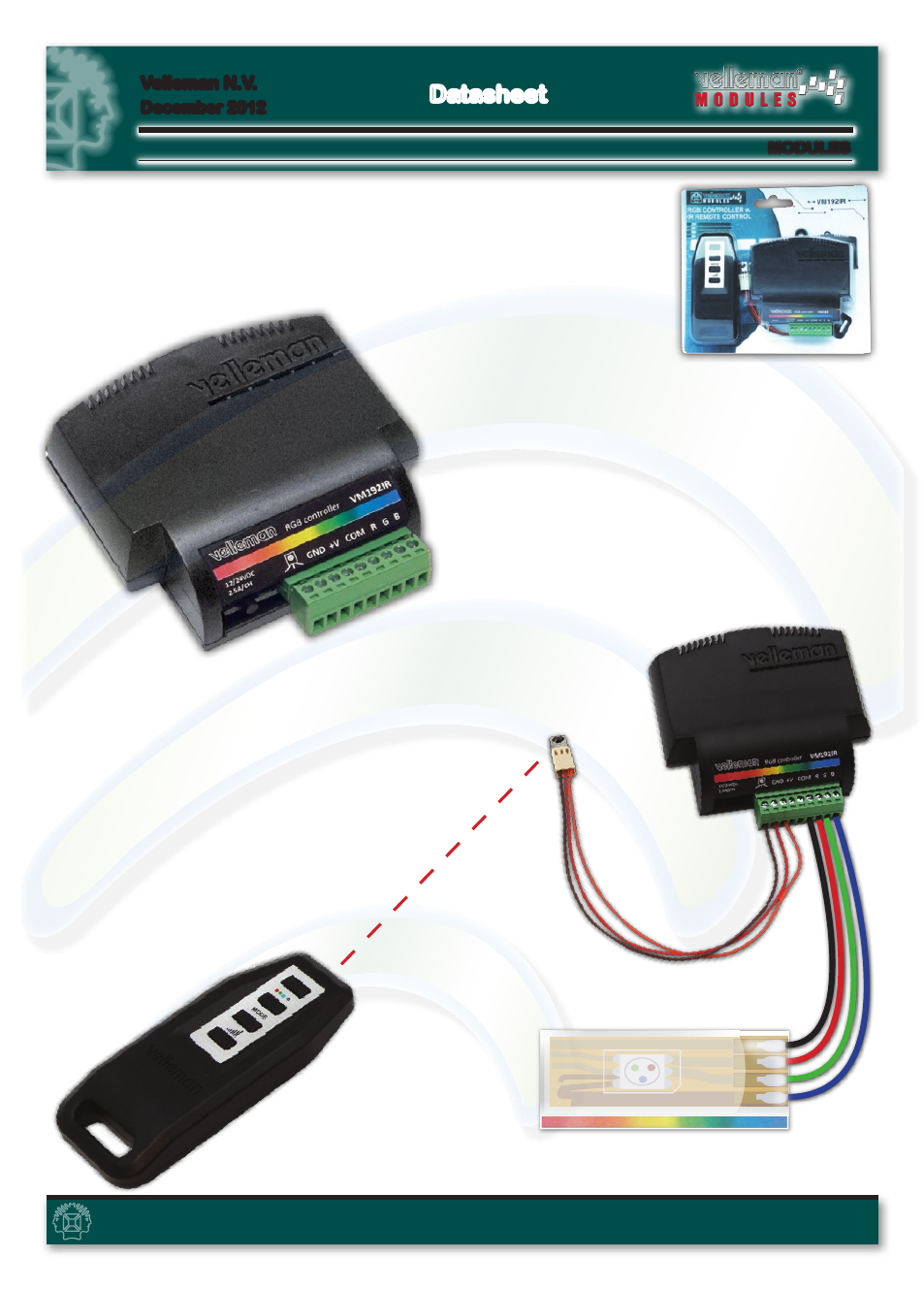

Component : VM192IR
RGB LED controller (IR version)
December 2012
Datasheet
VM192IR is an infrared remote controlled RGB driver for 12 or 24VDC led strips. It allows you to set a colour manually
or loop trough all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust
the intensity, regardless of the chosen colour or mode.
Features:
Includes one 4 channel Infrared remote -
IR module can be extended up to 1m -
Colour, intensity and mode are retained and will be restored after a power -
failure
Speed determined by jumper setting.
-
Can also be used as a single channel led dimmer -
Smooth manual scrolling through red-orange-yellow-green-blue-indigo-violet -
with up/down buttons.
Fix a manually selected colour.
-
Technical specifications:
Power supply: 12..24VDC -
Current: 2.5A/channel max. (30W/12V, 60W/24V max.) -
PWM frequency /resolution: 245Hz, 10-bit -
Intensity levels: 32 -
Colour loop time (R->G->B->R): 50s, 1m40s, 2m30s or 3m20s -
Max. ambient temp: 30°C / 86°F -
Remote range: up to 10m (fresh battery, line of sight, no interference) -
Remote power supply: V23GA or GP23GAC 12V battery (included) -
Dimensions: -
controller: 80x70x23mm / 3.15 x 2.75 x 0.9” •
remote: 88x37x13mm / 3.46x1.45x0.5” •
Option: additional remotes type VM191
COM (+)
R
G
B
