12
Optional housing
2. Mounting :

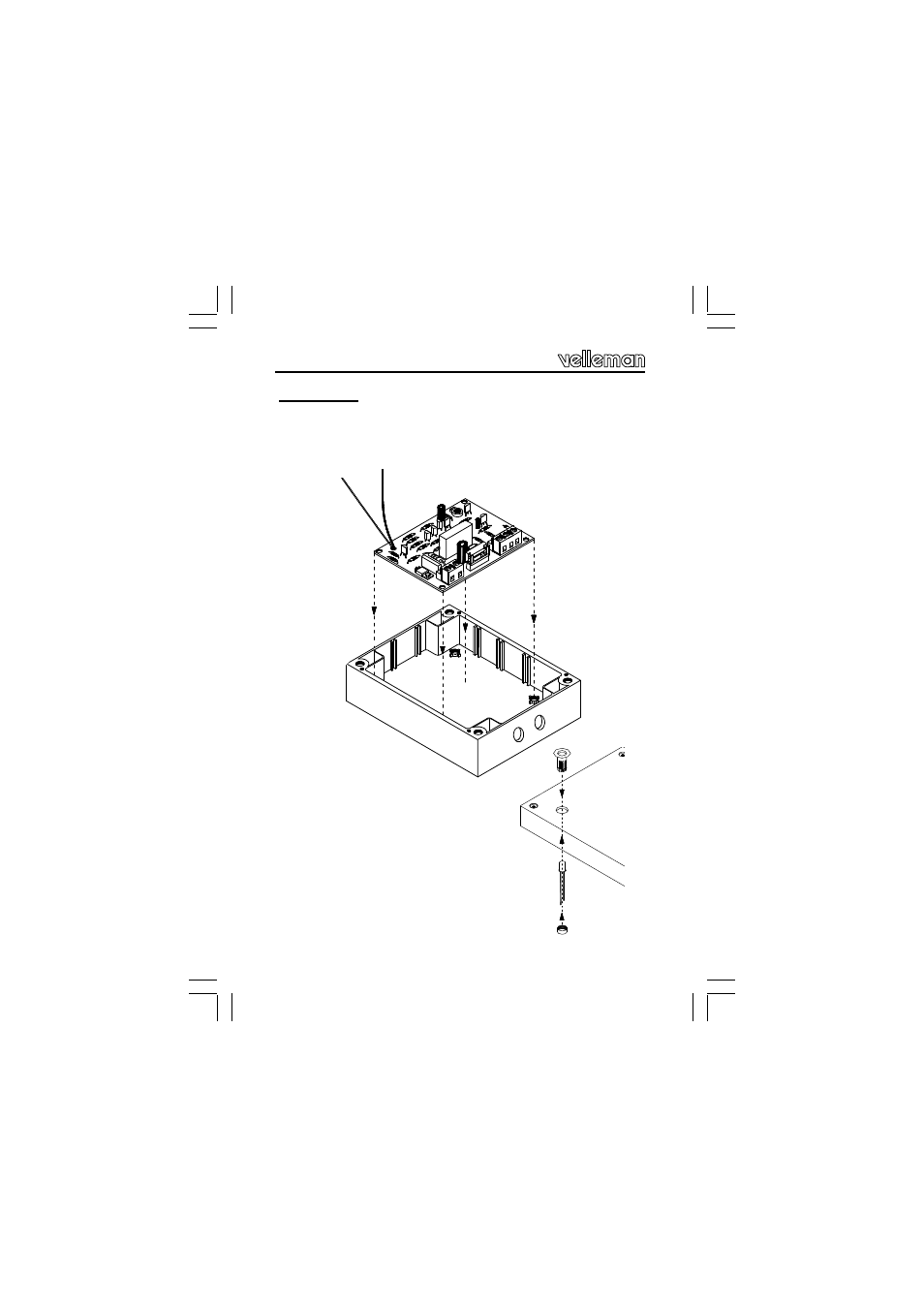

Position the PCB in the bottom half of the enclosure. (Fig. 3.0)
G
ATTENTION : Solder two wires onto the PCB instead of the
LED. The LED will be mounted on top of the enclosure later
on.
FIG. 3.0
Mount the LED clip into the hole of the top
enclosure, together with the LED.
See Fig. 4.0
* LED clip (optional)
FIG. 4.0
