Velleman projects VM146 Datasheet - Manual

New P
roduc
t info
November 2007

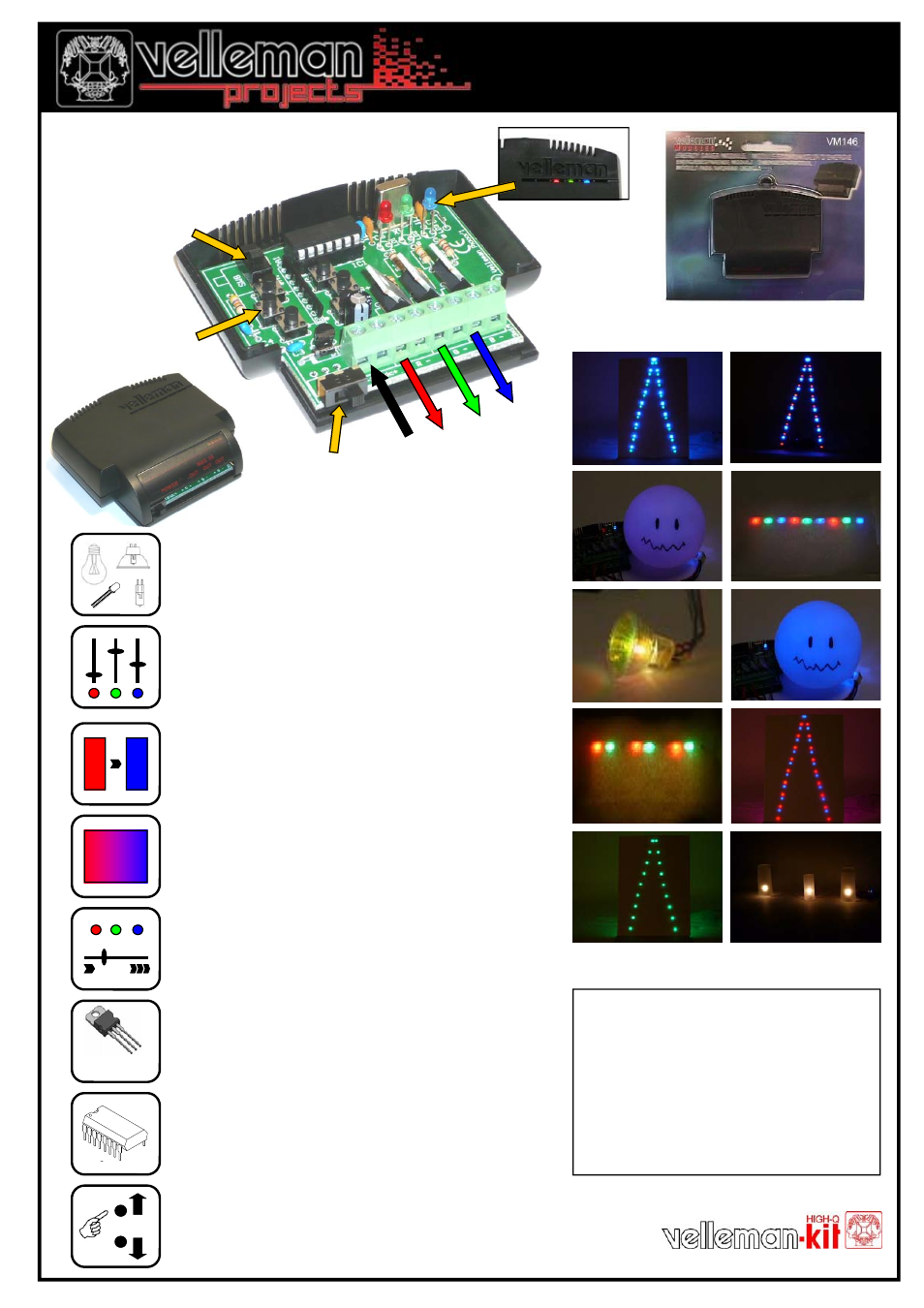

VM146 RGB Controller
Technical:
•
LED PWM freq: 82Hz
•
50V/ 3A max. open drain outputs
•
256 intensity levels/ch.
•
Voltage / current output:(needs
optional resistor for current output)
•
Power supply: 12V / 9A max.
•
Dimensions: approx 80x70x23mm
Up-down level adjust for each output
Wide-range effect speed adjust
Hard transition effects
Runnning light, Strobo, Colour
loops, etc...
Smooth fade effects
Colour change, flame effect,
random colours, slow off etc...
3 x 3A
Hi power MOSFET outputs
Memory for last selected effect & speed
Easy up/down effect select
Suited for both incandescent
bulbs and LEDs
ON/OFF
10 -15
Vdc
IN
RGB OUT
3 x 3A
10 -15Vdc
Common +
SELECT
RGB/EFFECT
LEVEL +/-
EFFECT SELECT
SPEED ADJ
EFFECT
PREVIEW
